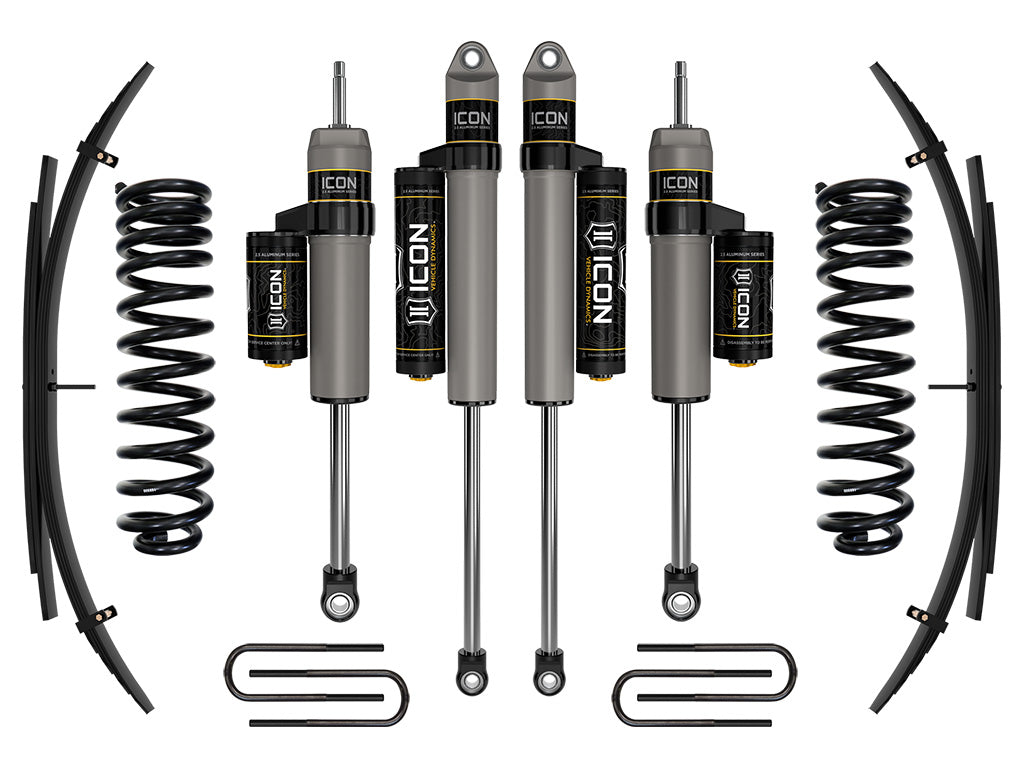

ICON 2017-2019 Ford F-250/F-350 4WD Diesel 2.5" Lift Stage 2 Suspension System W/ Expansion Packs

The ICON 2.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 2 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 2 System is comprised of dual rate coil springs, 2.5 Aluminum Series piggyback reservoir front and rear shocks, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable

Vehicle Specific

• ICON 17-19 FORD F250/F350 2.5" STAGE 2 SUSPENSION SYSTEM W EXPANSION PACK

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103423050
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 7
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 2.5
• Maximum Lift Rear: 2
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 19.0000 inches
• Weight: 304.0000 POUNDS
