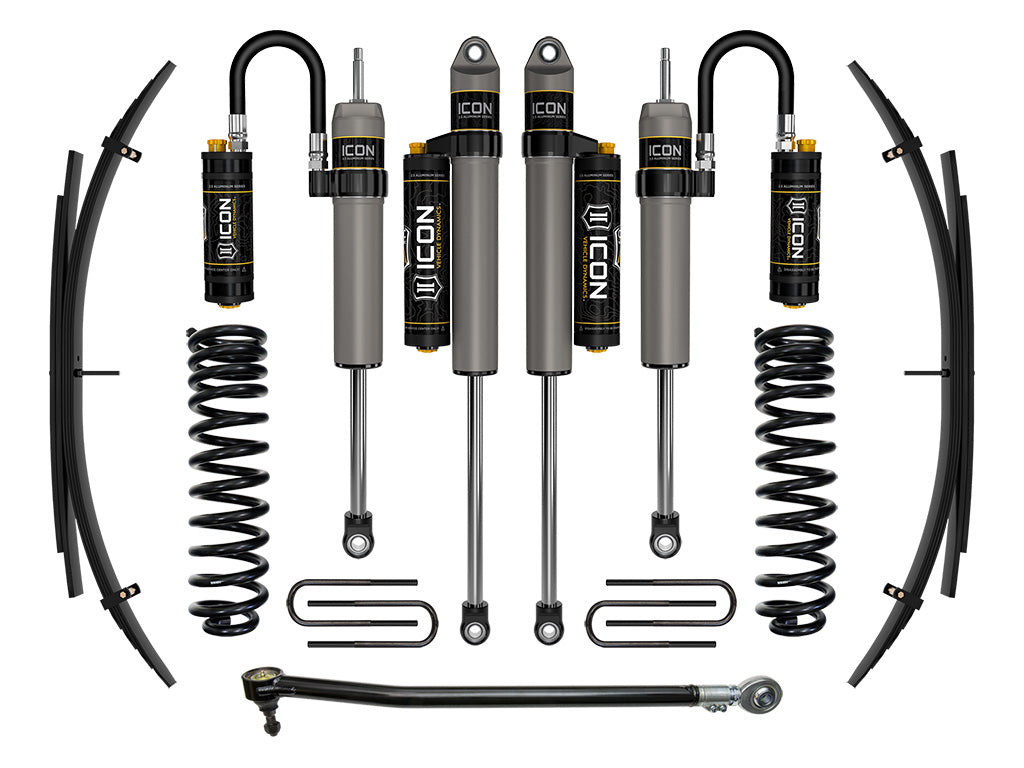

ICON 2017-2019 Ford F-250/F-350 4WD Diesel 2.5" Lift Stage 4 Suspension System W/ Expansion Packs

The ICON 2.5” suspension system is a great way to lift your 4WD 2017-2019 Ford F-250/F-350 Super Duty while improving ride quality and performance. This upgraded Stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 4 System is comprised of dual rate coil springs, 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, adjustable front track bar with massive FK rod end, alignment cams for adding caster, and rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap. ICON 2.5" remote reservoir and piggyback reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break

Vehicle Specific

• ICON 17-19 FORD F250/F350 2.5" STAGE 4 SUSPENSION SYSTEM W EXPANSION PACK

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103423074
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 6111: 7
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 2.5
• Maximum Lift Rear: 2
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 19.0000 inches
• Weight: 335.0000 POUNDS
