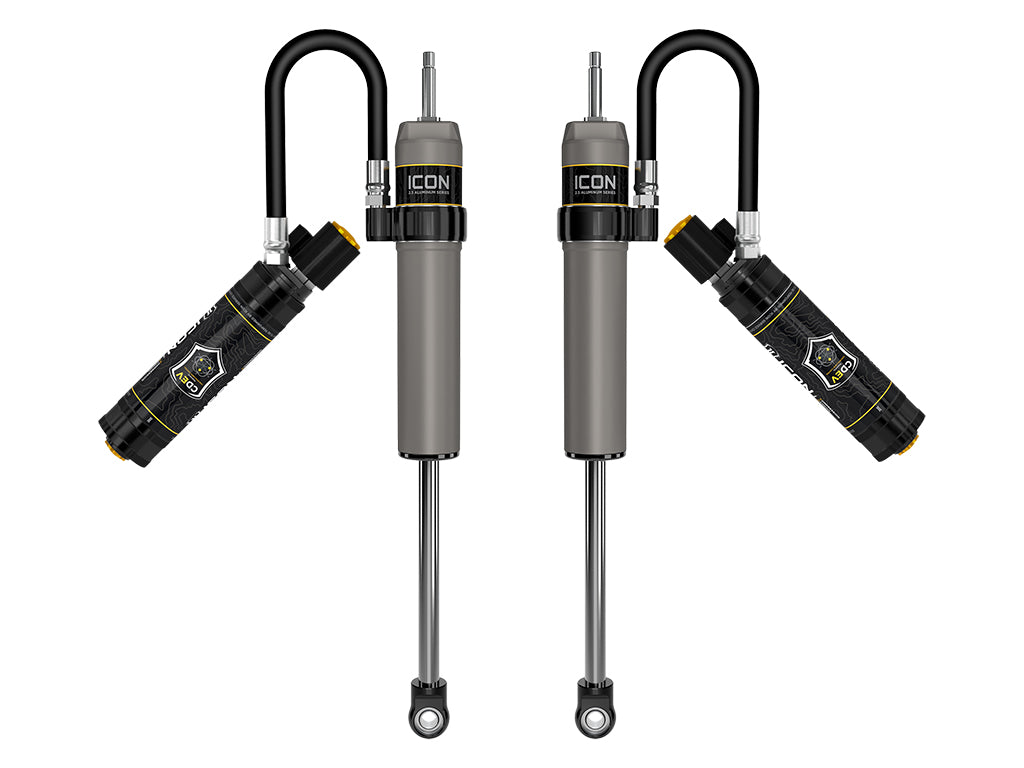

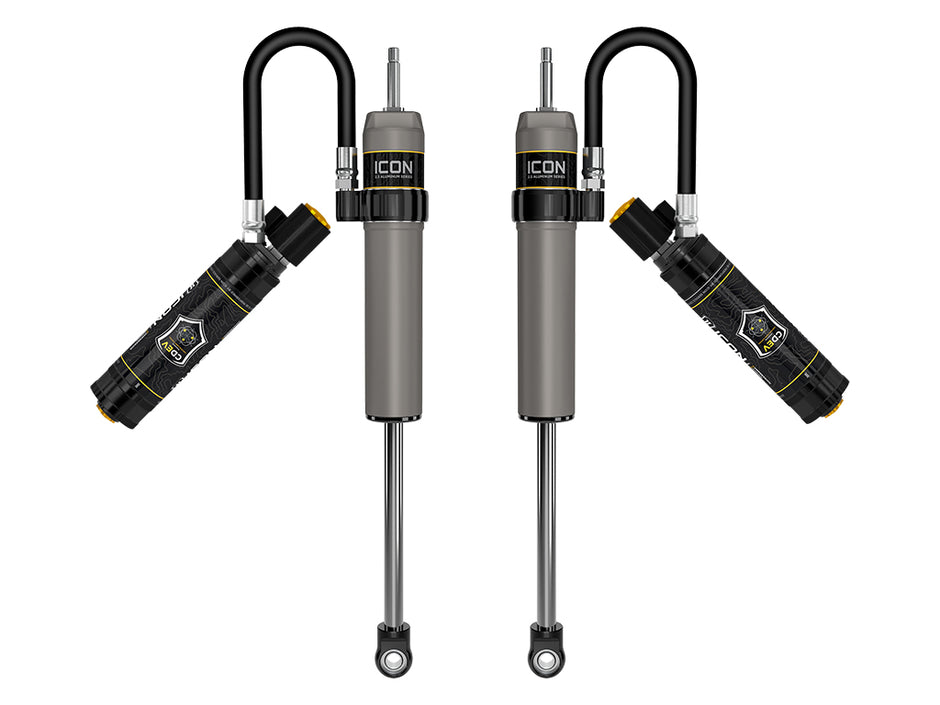

ICON 2017-2022 Ford F-250/F-350 Super Duty 4WD 4.5” Lift Front 2.5 VS Remote Reservoir Shocks W/CDEV Pair

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Fully rebuildable and re-tunable
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components

Vehicle Specific

• ICON 17-22 FSD 4WD 4.5" FRONT 2.5 VS RR CDEV PAIR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103414607
• 30: Yes
• 48: Eyelet
• 49: Stem
• 50: NO
• 51: Yes
• 359: 2.5
• 408: Center of Eylet
• 409: Shoulder of Stem
• 905: 2.25
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: Electronically
• California Prop 65 Warning: Yes
• Cylinder Color: Grey
• Cylinder Material: Aluminum
• Damping Type: Oil
• External Reservoir: Yes
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shaft Material: Chrome

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 39.0000 x 15.0000 x 9.0000 inches
• Weight: 15.0000 POUNDS

PDF:
