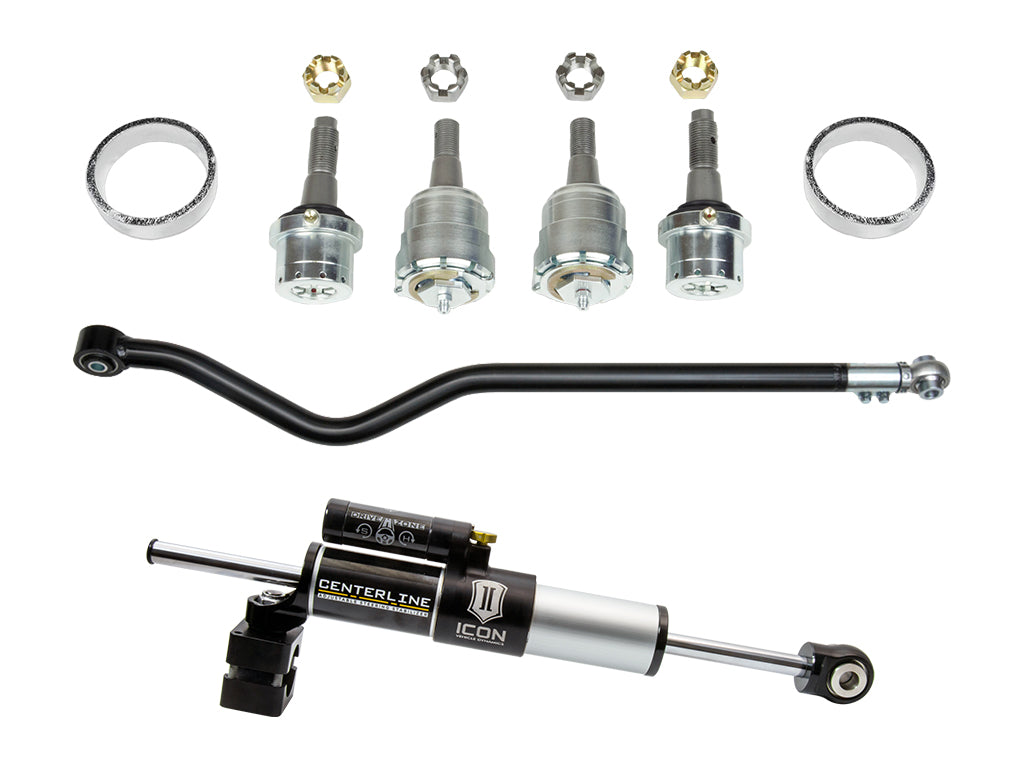

ICON 2018-2023 Jeep Wrangler JL/2020-2023 Jeep Gladiator Ultimate Front End Kit Stage 4

Rounding out this Stage 4 kit are a full set of front upper and lower Dynatrac HD BallJoints. Dynatrac HD Balljoints feature heat-treated high-strength billet bodies with chromoly stems along with a heat-treated, precision-ground stainless-steel ball. Unique seals prevent contamination, and the ball joints have greaseable fittings and PTFE-coated wear points to provide a long, durable service life. These high-end ball joints also use an exclusive snap-ring safety feature design to prevent the ball joint bodies from moving in the axle housing under the heavy weight of large tires in extreme terrain. A Dynatrac installation kit is also included to make install a simple, straight forward process. The OEM ball joints often wear quickly with larger off-road tires, many road miles, or extreme off-roading. Replacing worn factory ball joints with Dynatrac HD BallJoints, built specifically for the rigorous demands of these vehicles, provides a long-term solution and help maximize the overall drivability of the Jeep Wrangler and Jeep Gladiator.

• Improves steering feel and vehicle control
• FK Rod End bearings in steering stabilizer for precise function
• On vehicle adjustable track bar for precise track alignment using ICON’s Double Adjuster
• Maintenance free, multi-durometer bushing and JM12T rod end minimize track bar deflection while maximizing responsiveness
• Track bar constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing

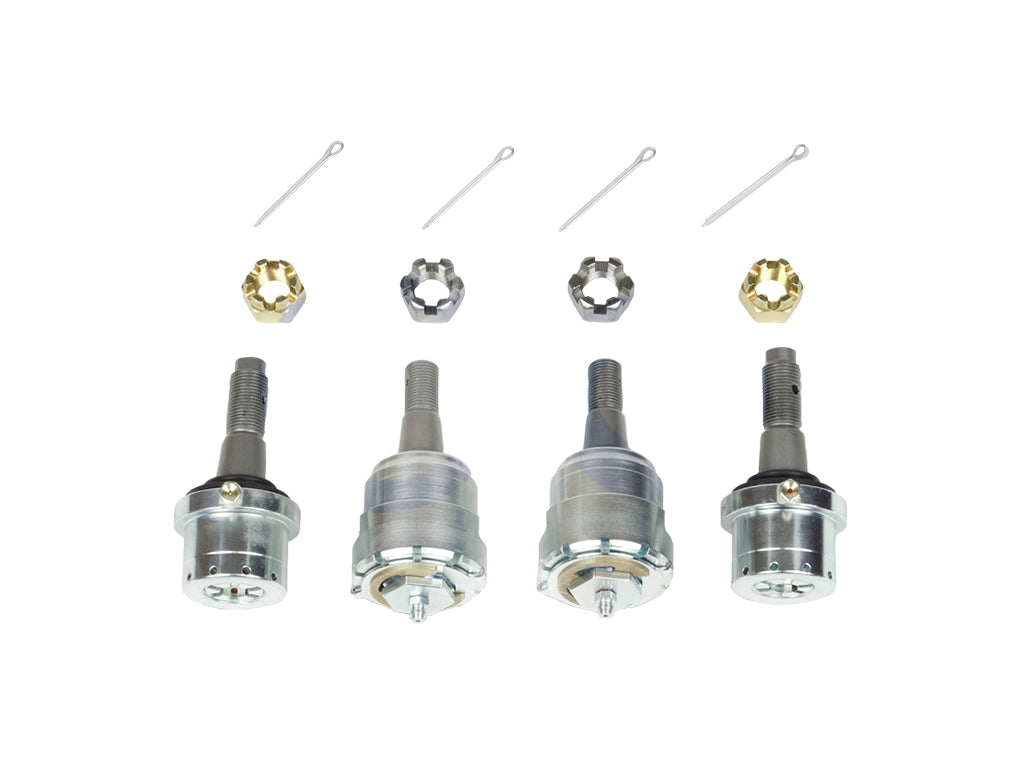

• Full set of genuine Dynatrac front upper and lower ball joints
• CNC machined, high-strength ball joint components
• Heat-treated, high-strength billet ball joint bodies with chromoly stems
• Heat-treated, precision-ground stainless-steel ball
• Sealed, greaseable ball joint design with PTFE coated wear points ensure long service life
• Snap ring prevents unwanted ball joint movement in axle housing
• Through shaft steering stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
• On-vehicle rebuildable ball joint design
• Increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• Adjustable “Drive Zone” with 9 clicks of steering damping adjustment

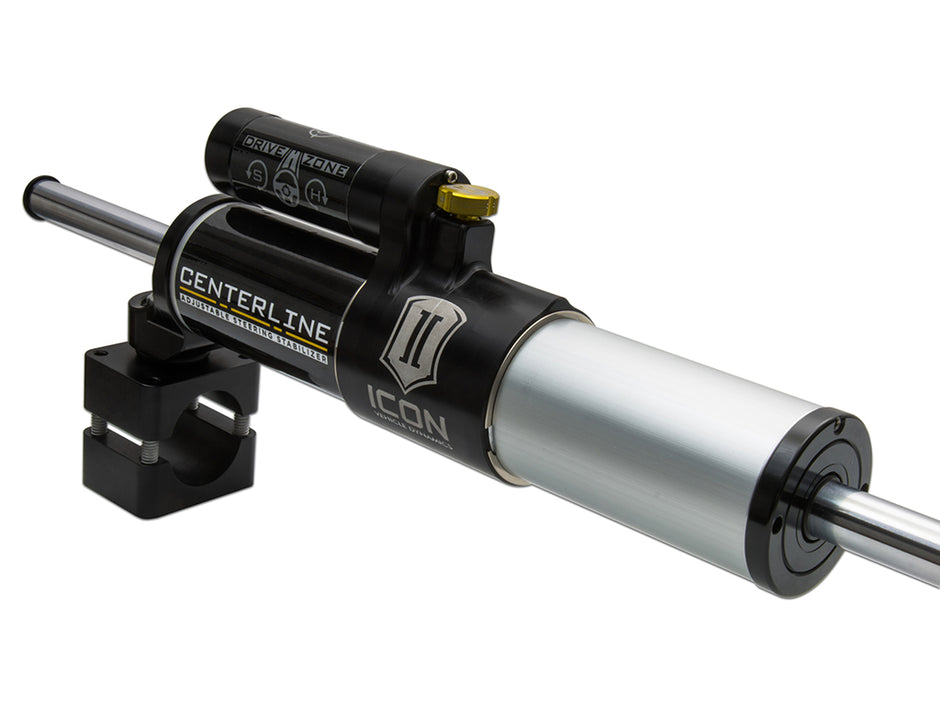

• Centerline steering stabilizer is a fully serviceable ICON 2.0 Aluminum Series piggyback reservoir shock
• 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
• 5/8” chrome plated hardened steel shock shafts
• 5WT shock oil for consistent suspension damping along a wide temperature range

Vehicle Specific

• ICON 18-23 JEEP JL/20-23 JT STAGE 4 ULTIMATE FRONT END KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103429649
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable: Yes
• Adjustable Ball Joints: No
• Adjustable Damping: Yes
• California Prop 65 Warning: Yes
• Cotter Pin Hole: Yes
• Dust Boot Included: Yes
• Grade Type: Heavy Duty
• Grease Fitting Included: Yes
• Greaseable: Yes
• Mount Type: Press In

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 43.0000 x 4.0000 x 4.0000 inches
• Weight: 25.0000 POUNDS
