Continue shoppingICON 2019-2023 Ford Ranger 0-3.5” Lift 2.5 VS Coilover Kit
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,660.31
-0%
Regular price
$1,660.31
Regular price
$1,660.31
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

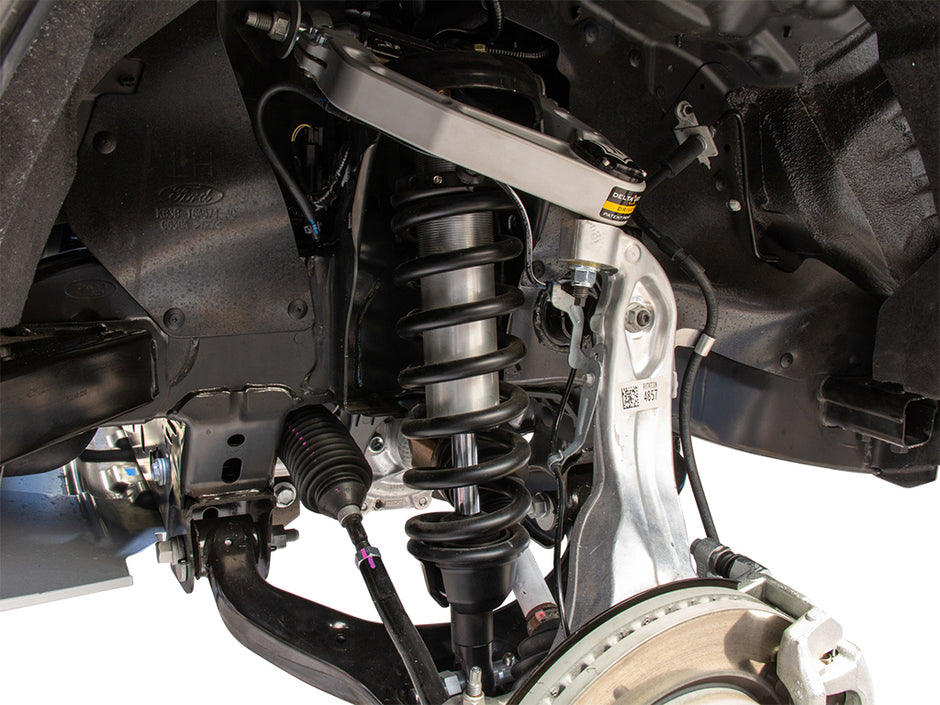

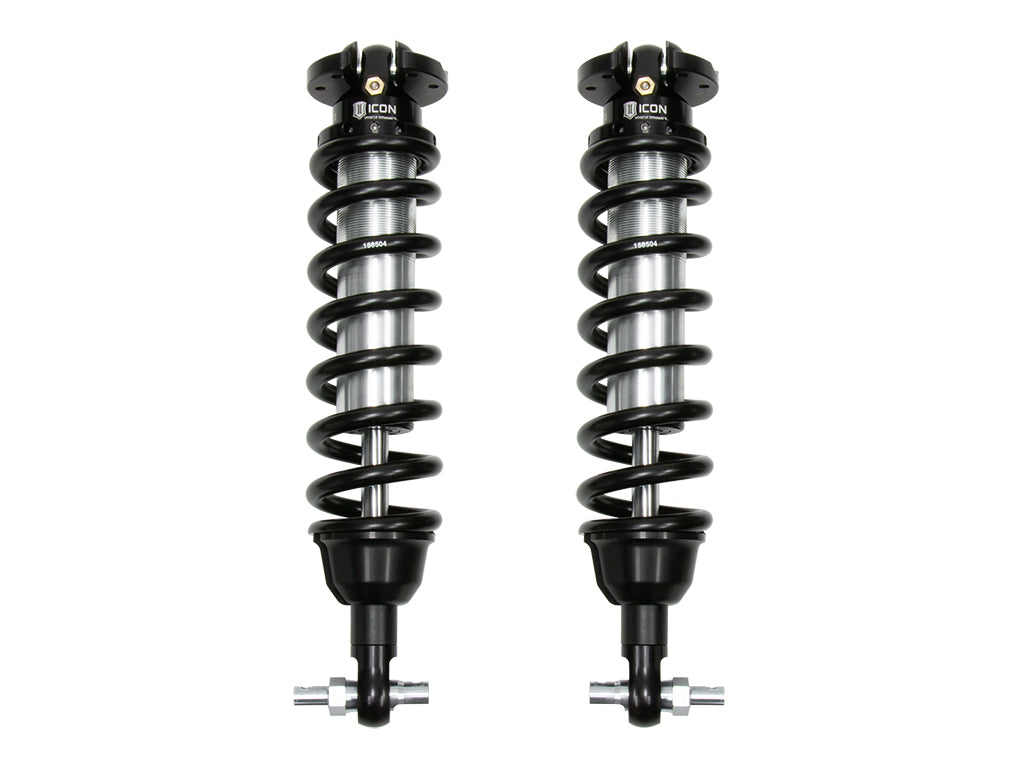

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.
- Adjustable coilovers yield 0-3.5” of front lift height
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- ICON 19-23 RANGER 2.5 VS IR COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103406862
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9783: Yes
- 10107: 650
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 15.82
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 20.68
- Gas Charged: Yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 w/ 5.75" Backspace / 25mm Offset
- Remote Reservoir: NO
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Rate Type: Linear
- Travel Length: 4.86
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.0000 x 13.0000 x 7.0000 inches
- Weight: 45.0000 POUNDS
