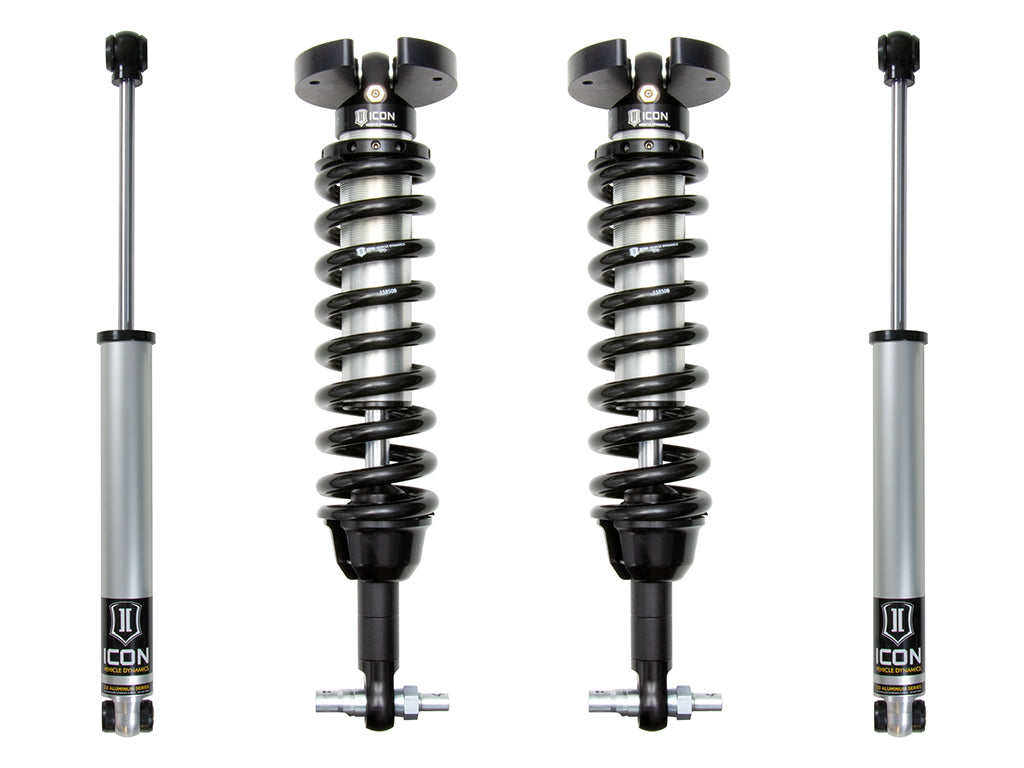

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.5-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Adjustable coilovers provide 1.5-3.5” of front lift height
- Direct bolt-in design makes for a simple and straightforward installation
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 25% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8" shaft
- 2.0 Aluminum Series rear shocks feature corrosion resistant anodized shock body with 5/8" shaft
- 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
Vehicle Specific
- ICON 19-23 GM 1500 1.5-3.5" STAGE 1 SUSPENSION SYSTEM
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103419237
-
30: Yes
-
2064: Steel
-
2371: NO
-
3096: Black
-
3097: Yes
-
3390: Performance
-
5520: 3.5
-
7325: 2
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
-
California Prop 65 Warning: Yes
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: (Sierra): 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Extended Information:
-
Country of Origin: United States
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 26.0000 x 13.0000 x 7.0000 inches
-
Weight: 58.0000 POUNDS
