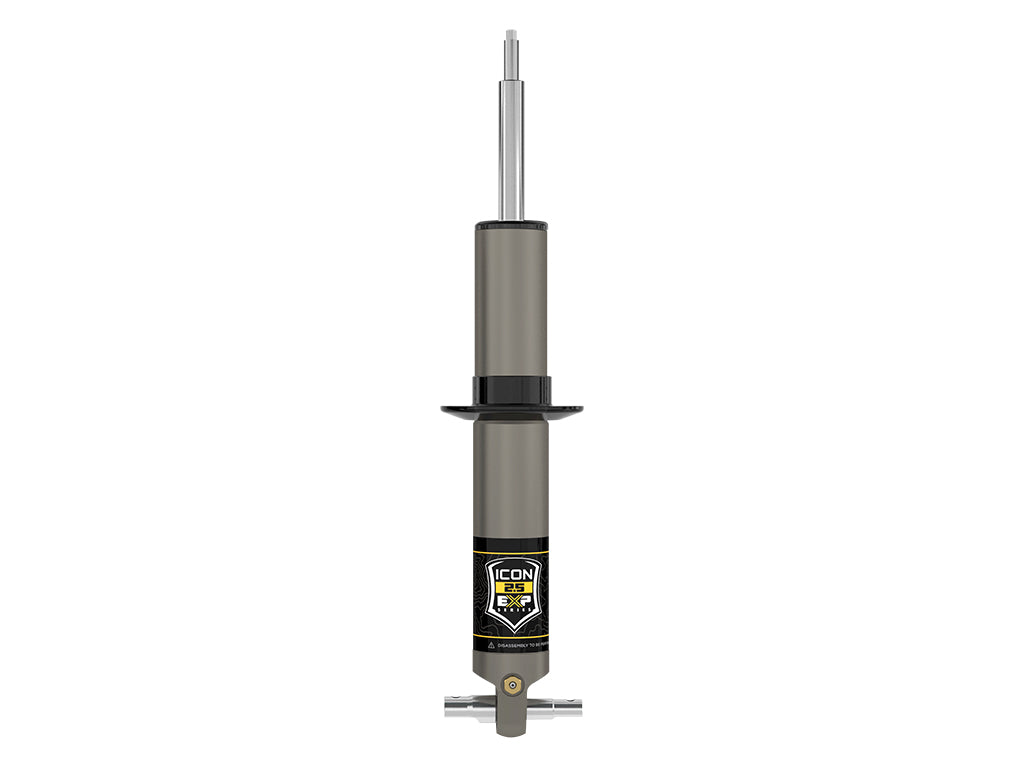

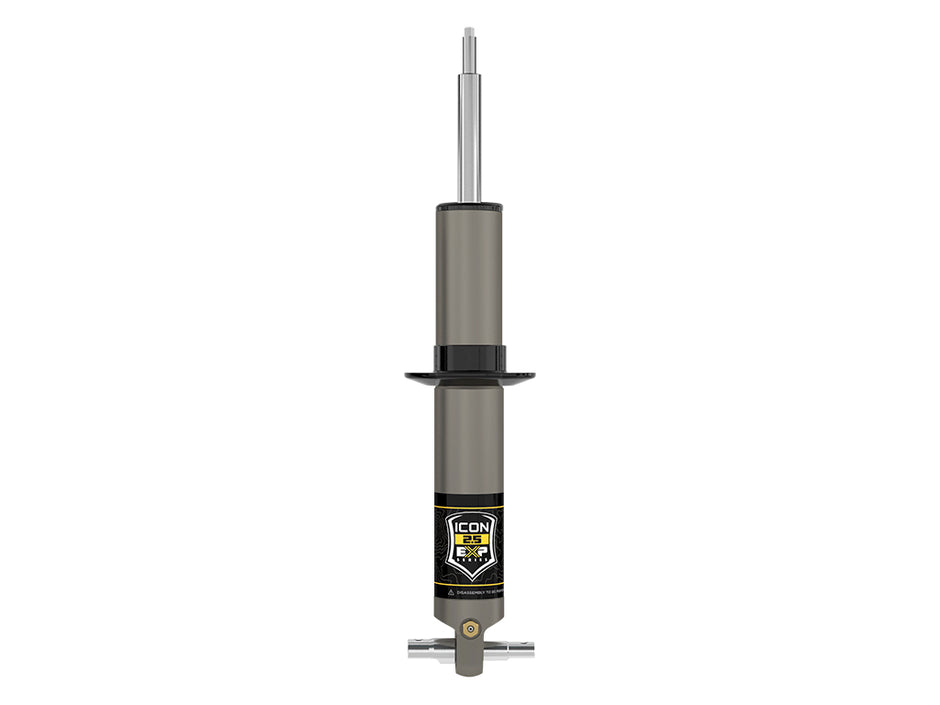

Continue shoppingICON 2019-2023 GM 1500 Front 2.38-3.75" Lift 2.5 EXP Coilover
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$519.95
-0%
Regular price
$519.95
Regular price
$519.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for the 2019-2023 GM 1500 trucks
- Fully rebuildable and re-tunable
- Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
- 100% Bolt-on - no cutting or welding necessary for installation
- ICON 19-23 GM 1500 FRONT 2.5 EXP COILOVER
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103421551
- 37: 22.11
- 48: BAR PIN
- 84: No
- 107: 16.75
- 108: 5.37
- 2329: Aluminum
- 3065: 2.5
- 3085: Single Tube
- 3390: Performance
- 5126: Gray
- 7233: No
- 8703: No
- 9621: No
- 9783: No
- 10526: Digressive
- 10527: No
- 10528: Yes
- 10529: No
- 10530: Passive
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Adjustable Damping: NO
- Assembled: No
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Cylinder Finish: Hard Anodized
- Damping Type: Oil
- Gas Charged: Yes
- Material: Aluminum
- Maximum Lift: 3.75
- Maximum Ride Height Raising Distance: 3.75
- Minimum Lift: 2.375
- Remote Reservoir: NO
- Reservoir Style: Internal
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Flat on Bar Pin
- Shock Absorber Rod End Measuring Point: Shoulder of Stem
- Upper Mount Type: Mounting Plate
Extended Information:
- Country of Origin: United States
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 32.0000 x 6.0000 x 5.0000 inches
- Weight: 13.0000 POUNDS
