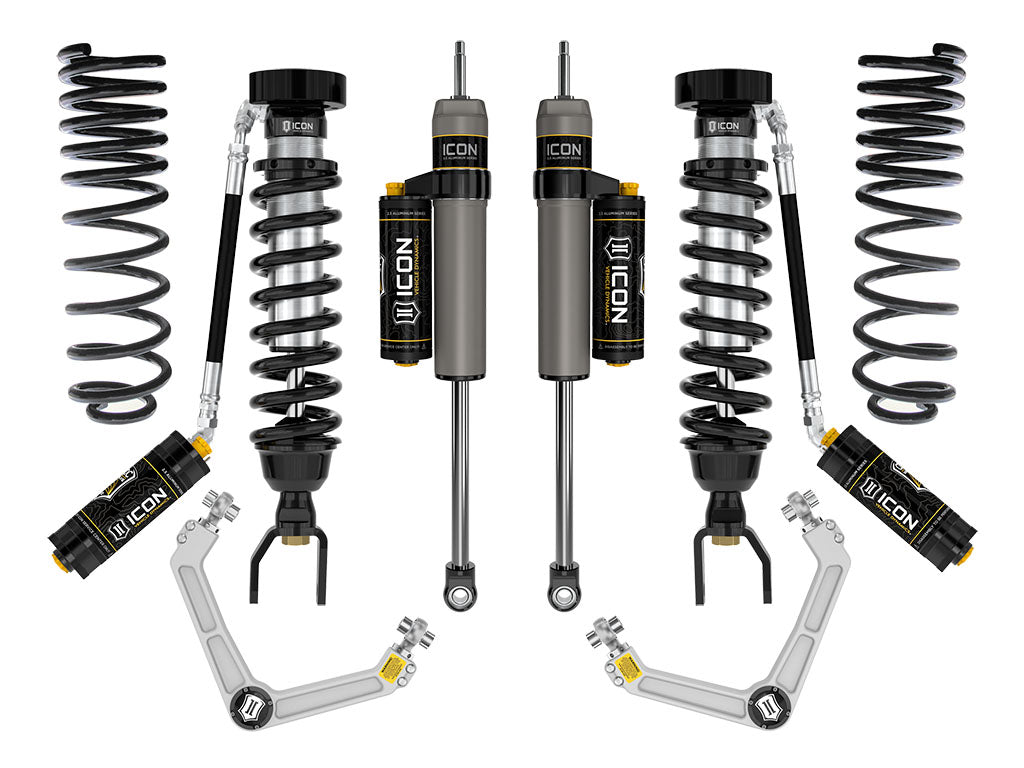

ICON 2019-2023 Ram 1500 2-3" Lift Stage 4 Suspension System Billet UCA

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Billet Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift

Vehicle Specific

• ICON 19-23 RAM 1500 2-3" STAGE 4 SUSPENSION SYSTEM W/ BILLET UCA

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103415505
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Manual
• Front Shock Diameter: 2.5
• Maximum Lift Front: 3
• Maximum Lift Rear: 1.5
• Minimum Lift Front: 2
• OEM Wheels & Tires Fitment: Yes
• Rear Shock Diameter: 2.5
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset
• Reservoir Style: Remote

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 13.0000 x 7.0000 inches
• Weight: 139.0000 POUNDS
