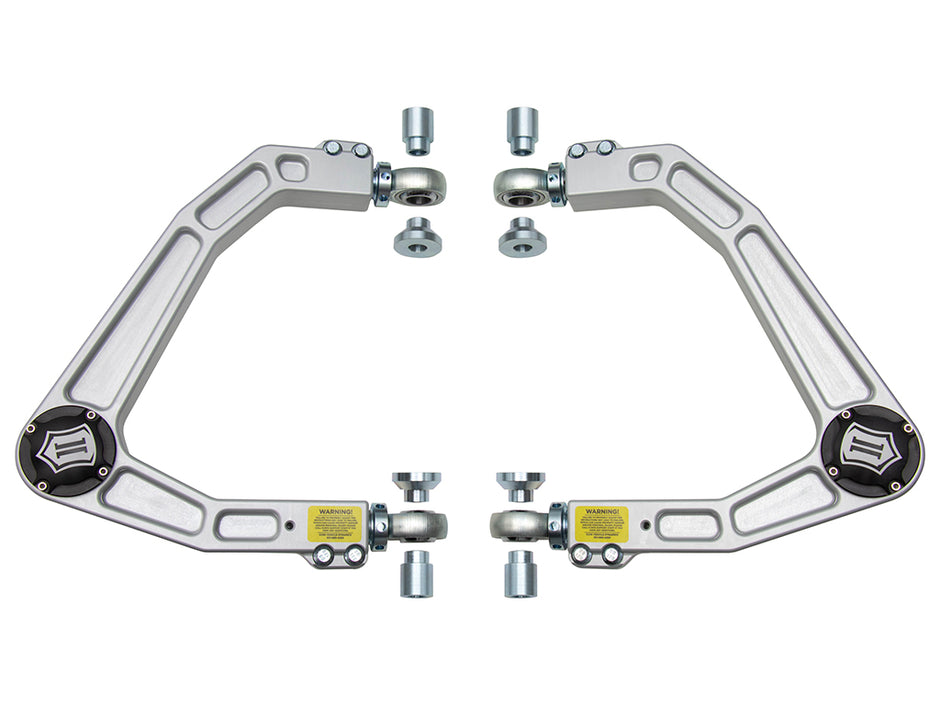

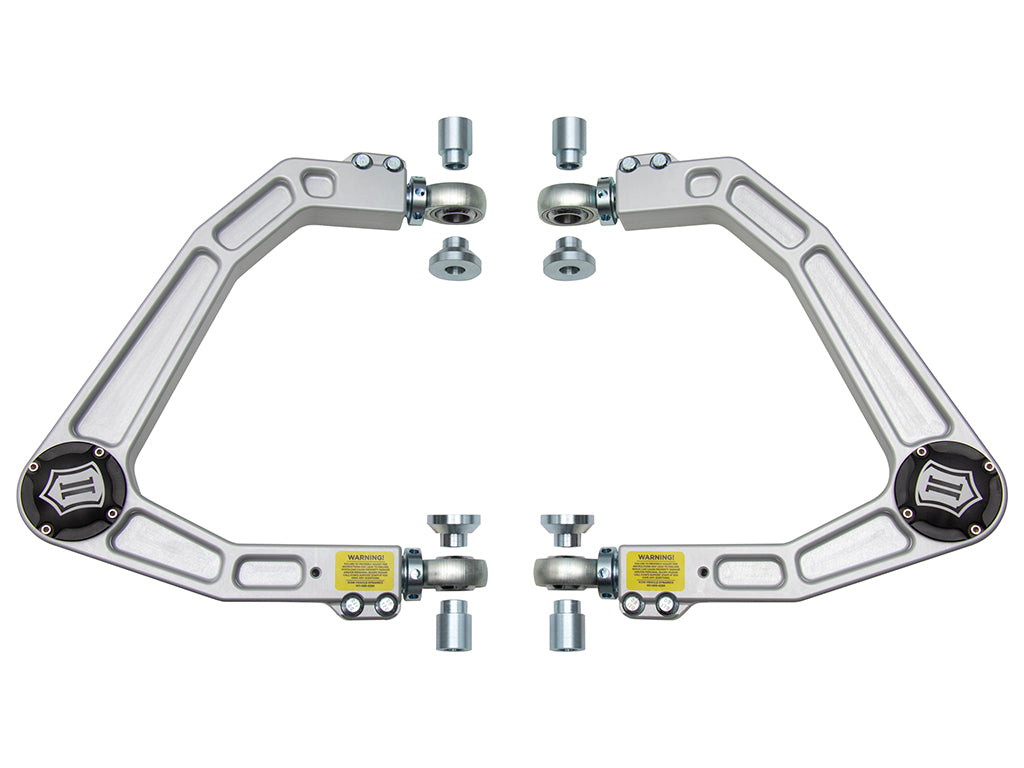

ICON 2019-2024 GM 1500 Pickup/2021-2023 GM SUV Billet Upper Control Arm W/ Delta Joint Kit

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• Camber and caster adjustability allows for precise wheel alignment
• ICON double adjuster sleeves allow for on-vehicle adjustment
• Vehicle specific taper pin provides OE-like fitment
• PTFE Lined 7/8” FK Rod Ends for improved response
• Built in o-ring sealed dust cover cap

Vehicle Specific

• ICON 19-23 GM 1500 BILLET UCA DJ KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103406633
• 10: Aluminum
• 30: Yes
• 40: Yes
• 73: Rod End Bearing
• 92: No
• 1260: Yes
• 2330: No
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2389: Aluminum
• 3390: Performance
• 4888: Silver
• 9617: Air
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Control Arm: yes
• Bushing Color: Silver
• California Prop 65 Warning: Yes
• Color: Gray
• Construction: Billet
• Control Arm Construction: Billet
• End 1 Type: Rod End Bearing
• End 2 Type: BALL JOINT
• Finish: Anodized
• Quantity: Pair
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 15.0000 x 16.0000 x 6.0000 inches
• Weight: 25.0000 POUNDS
