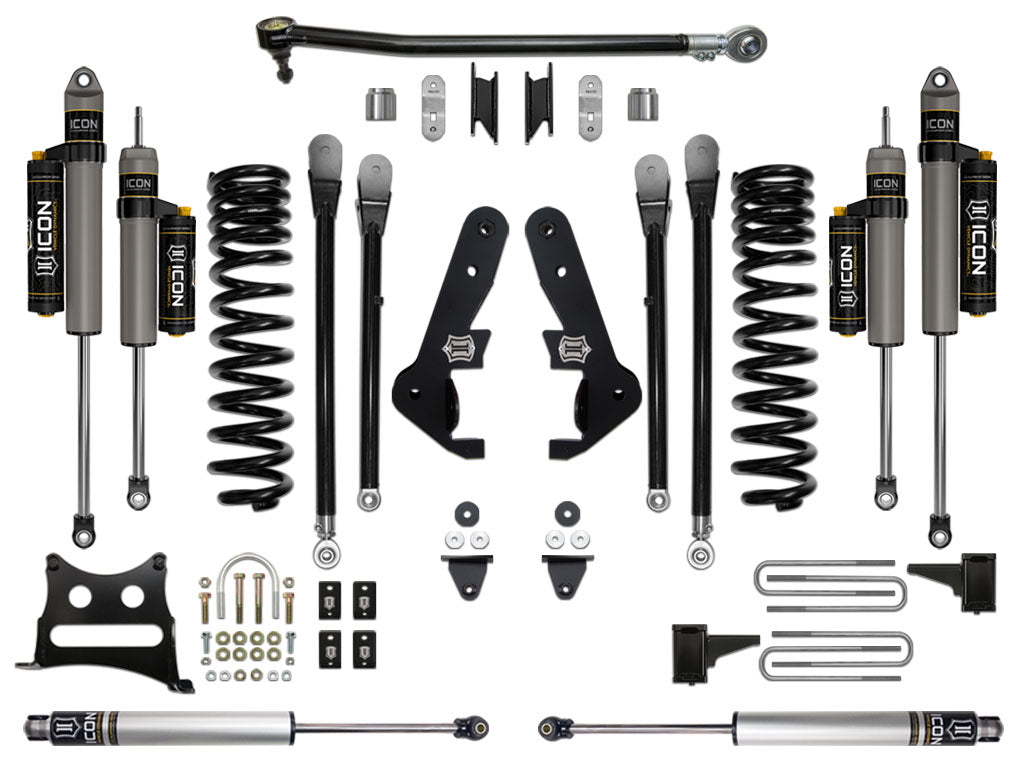

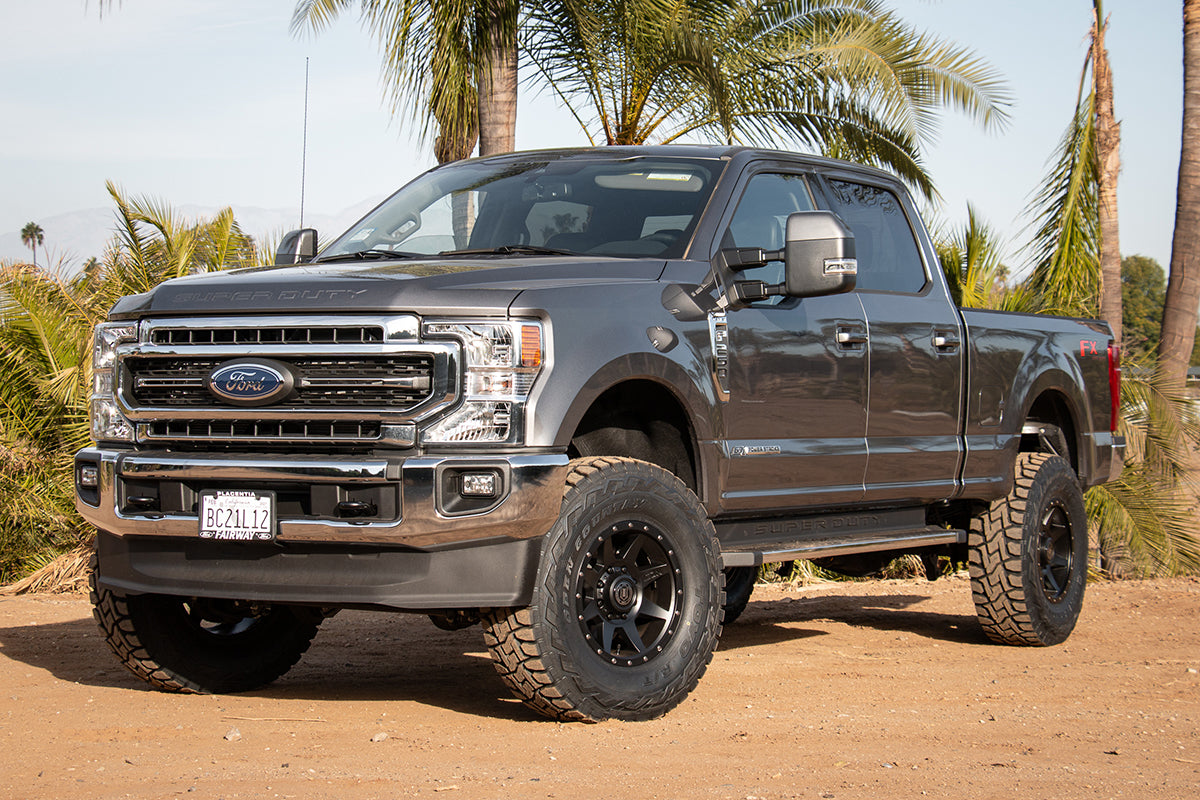

ICON 2020-2022 Ford F250/F350 4.5" Lift Stage 5 Suspension System

The Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.

• Fits 2020-2022 F-250 / F-350 4WD applications
• Dual opposing steering stabilizer kit for on-road comfort and predictible handling
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
• Shocks are fully rebuildable and revalvable
• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts (2.5 Series Shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418728
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 336.0000 POUNDS
