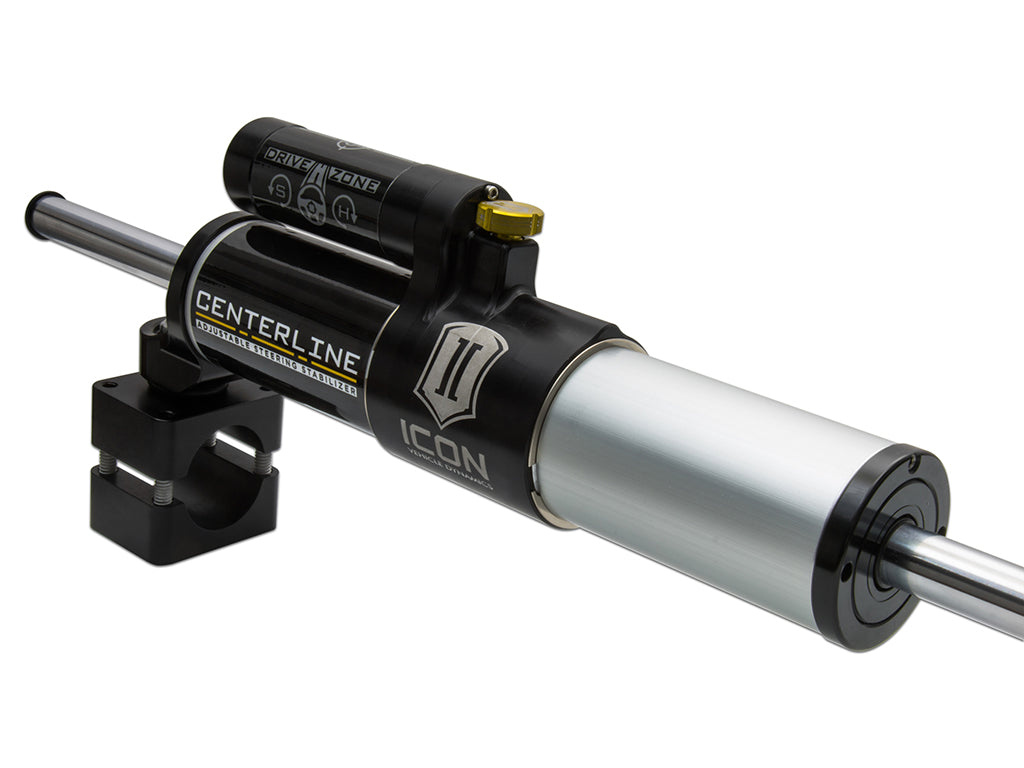

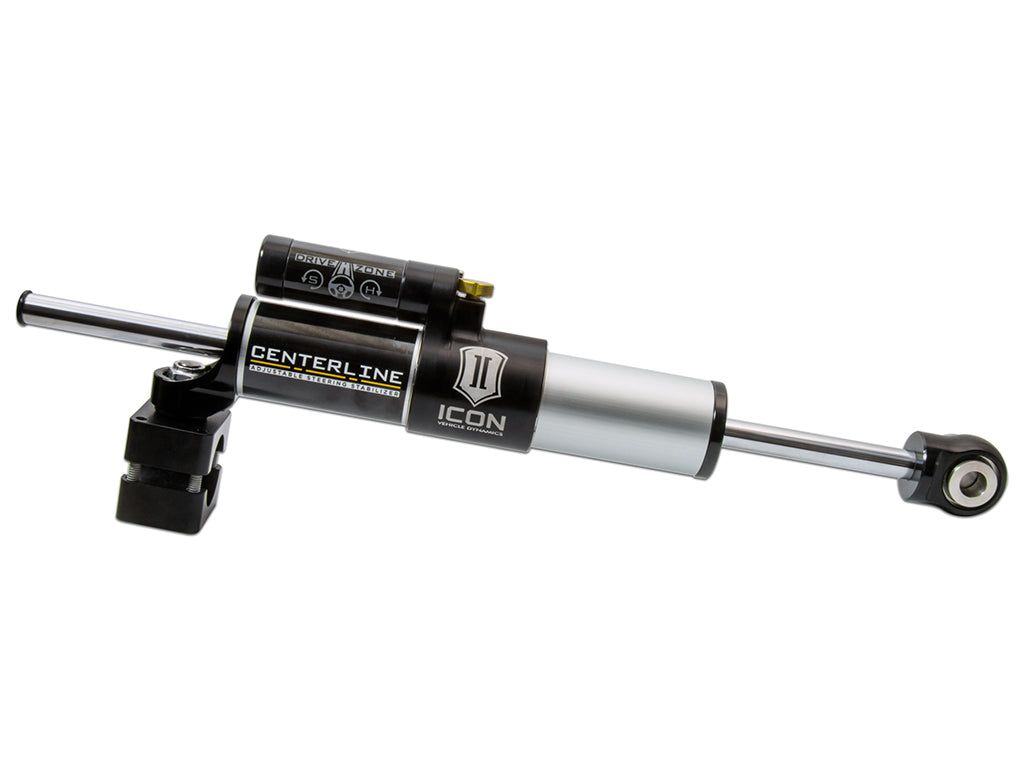

ICON 2020-2023 Jeep Gladiator/2018-2023 Jeep Wrangler JL Centerline Steering Stabilizer Adjustable

This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and 5/8” chrome plated hardened steel shafts for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range, and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.

• Through shaft design eliminates push/pull sensation associated with traditional stabilizers
• 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
• 5/8” chrome plated hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range
• FK Rod End bearings for precise function
• Increased steering damping over stock unit
• Provides symmetrical steering feel throughout input range
• Adjustable “Drive Zone” with 9 clicks of damping adjustment
• 100% bolt-on installation
• High clearance design and rotatable reservoir for proper fitment on all lift heights
• Mounts to OE tie rod
• Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
• Fully serviceable ICON 2.0 Aluminum Series shock

Vehicle Specific

• ICON 18-23 JL/20-23 JT 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103429304
• 17: Black
• 50: No
• 502: 0.625
• 2327: 2
• 2328: Oil
• 2329: Aluminum
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 22044 - 18-23 JL/20-23 JT/07-18 JK 1" FRONT BUMP STOP SPACER KIT
• Adjustable Damping: Yes
• California Prop 65 Warning: Yes
• Color: Light Grey
• Damping Adjustment Type: Manual
• Lower Mount Type: Eyelet
• Mounting Bracket Included: yes
• Service Parts: 202006 - 2.0 CENTERLINE STABILIZER REBUILD KIT
• Shaft Material: Chrome
• Steering Stabilizer Configuration: Through-Shaft
• Upper Mount Type: Eyelet

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 25.0000 x 7.0000 x 4.0000 inches
• Weight: 7.0000 POUNDS
