ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500 Adjustable Billet Upper Link Kit Rear

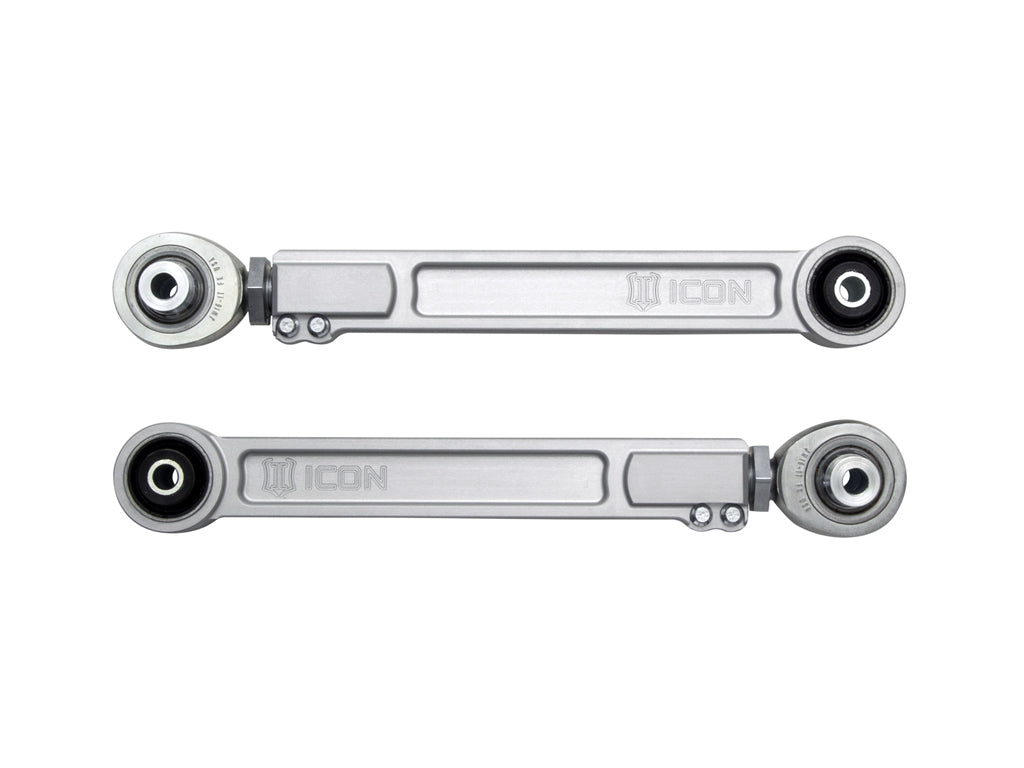

ICON’s billet aluminum rear upper link arms for the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

• CNC machined 6061 aluminum construction
• Multi durometer bushing for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
• Adjustable while installed on vehicle for various lift heights & driveline angles
• ICON1K tested in extreme off-road conditions
• Covered by ICON's lifetime warranty

Vehicle Specific

• ICON 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE UPPER LINK KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103408637
• 10: Aluminum
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 92: No
• 1260: Yes
• 2330: No
• 2339: No
• 2354: Performance
• 2371: Yes
• 2383: Threaded
• 2384: Yes
• 2389: Aluminum
• 3390: Performance
• 4888: Silver
• 9617: Spring
• 10828: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 22063 - 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE LOWER LINK KIT
• Adjustable Control Arm: Yes
• Attachments Included: No
• Ball Joint Mounting Type: Thread in
• Bushing Color: Black
• California Prop 65 Warning: Yes
• Color: Gray
• Construction: Billet
• Control Arm Construction: Billet
• End 1 Type: Bushing
• End 2 Type: Rod End Bearing
• Finish: Anodized
• Quantity: Pair
• Set: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.0000 x 8.0000 x 4.0000 inches
• Weight: 19.0000 POUNDS

PDF:
