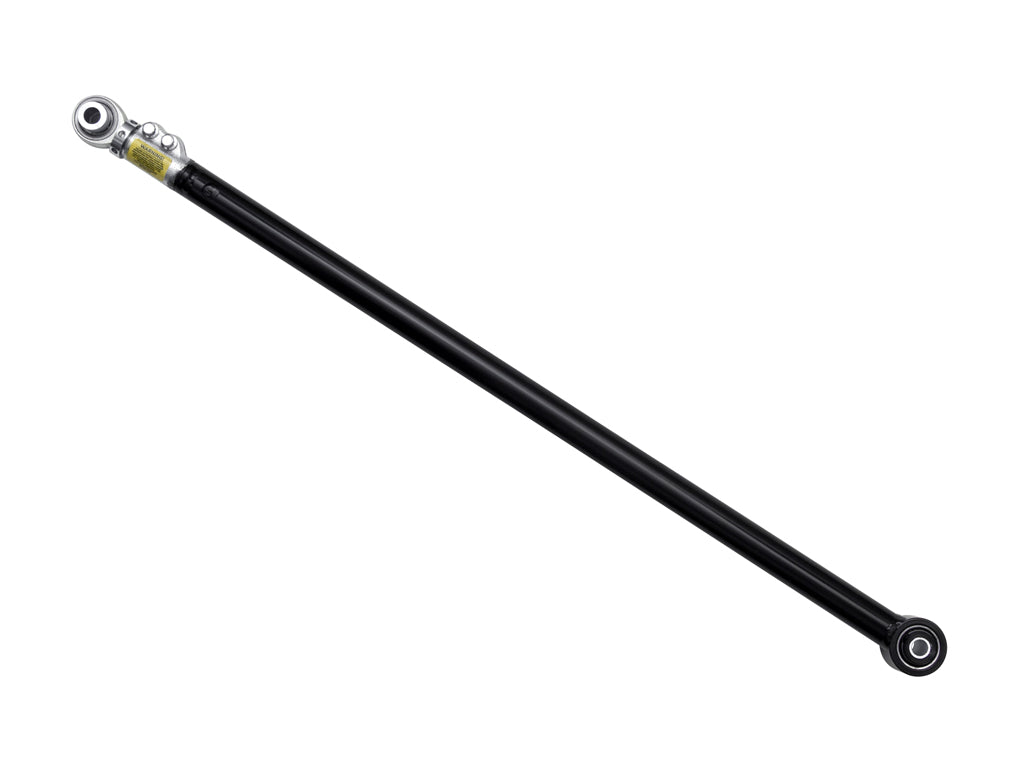

ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500 Adjustable Track Bar Kit Rear

The ICON Tubular Rear Track Bar helps center the axle of your lifted 2020-2023 Jeep Gladiator or 2019-2023 Ram 1500 to allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. ICON’s exclusive rod end Double Adjuster Sleeve allows for fast, easy “on-vehicle” adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1¼ x .250 wall 1026 DOM tubing with CNC machined threaded end and bushing housing. It has a multi-stage black powder coat finish. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

• Constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
• On vehicle adjustable for precise track alignment using ICON’s Double Adjuster
• Maintenance free, multi-durometer bushing and JM12T rod end minimize deflection while maximizing responsiveness
• Easy install into OEM mounts w/ application specific hardware
• Allows for full suspension articulation without binding
• Dual stage powder coat finish provides excellent corrosion resistance
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Vehicle Specific

• ICON 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103408651
• 10: Steel
• 17: Black
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 117: Black
• 200: Powdercoated
• 1727: Bushing
• 2330: No
• 2339: No
• 2371: Yes
• 2378: No
• 2384: Yes
• 3390: Performance
• 4417: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• End 2 Terminal Type: Rod End Bearing
• End 2 Type: Rod End Bearing

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 43.0000 x 4.0000 x 4.0000 inches
• Weight: 14.0000 POUNDS
