ICON 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD 2-3.5" Lift Stage 3 3.0 Suspension System Billet

The included ICON billet aluminum upper control arm kit is designed to improve overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, improved suspension component clearance, and when paired with the extended travel front shocks, increases wheel travel over the OEM configuration to maximize suspension performance. Additionally, replacing the OE ball joint with the serviceable and rebuildable ICON Delta Joint Pro HD allows for full bump and droop travel of the front suspension while eliminating bind. The included torsion keys install onto the factory torsion bars and allow for 2-3.5” of front lift height adjustment to allow for a level stance and larger, more aggressive wheel and tire fitment. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort, just like your drive to work.

• Adjustable for 2-3.5” of front lift height over stock
• Corrosion resistant hard anodized aluminum shock bodies
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Vehicle specific tuned 3.0 Series remote reservoir front and rear shocks for the ultimate in shock damping and control
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

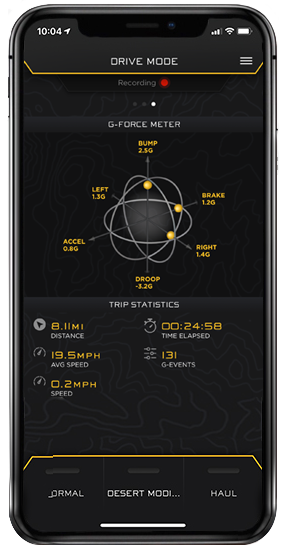

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Improved ride quality over stock with no change in towing capacity
• Billet aluminum Delta Joint Pro HD UCAs allow for additional caster/camber adjustment
• Forged steel torsion keys
• Front wheel travel increase of approximately 3" over stock
• 6061 Aircraft grade aluminum CNC machined components

Vehicle Specific

• ICON 20-26 GM 2500/3500 HD 2-3.5" LIFT STAGE 3 3.0 SUSPENSION SYSTEM BILLET

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103436517
• 30: Yes
• 2371: Yes
• 3097: Yes
• 3390: Performance
• 5520: 3.5
• 11410: 3.5
• Active or Passive Suspension: Active
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 3
• Maximum Lift Front: 3.5
• Minimum Lift Front: .5
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 3

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 127.0000 POUNDS
