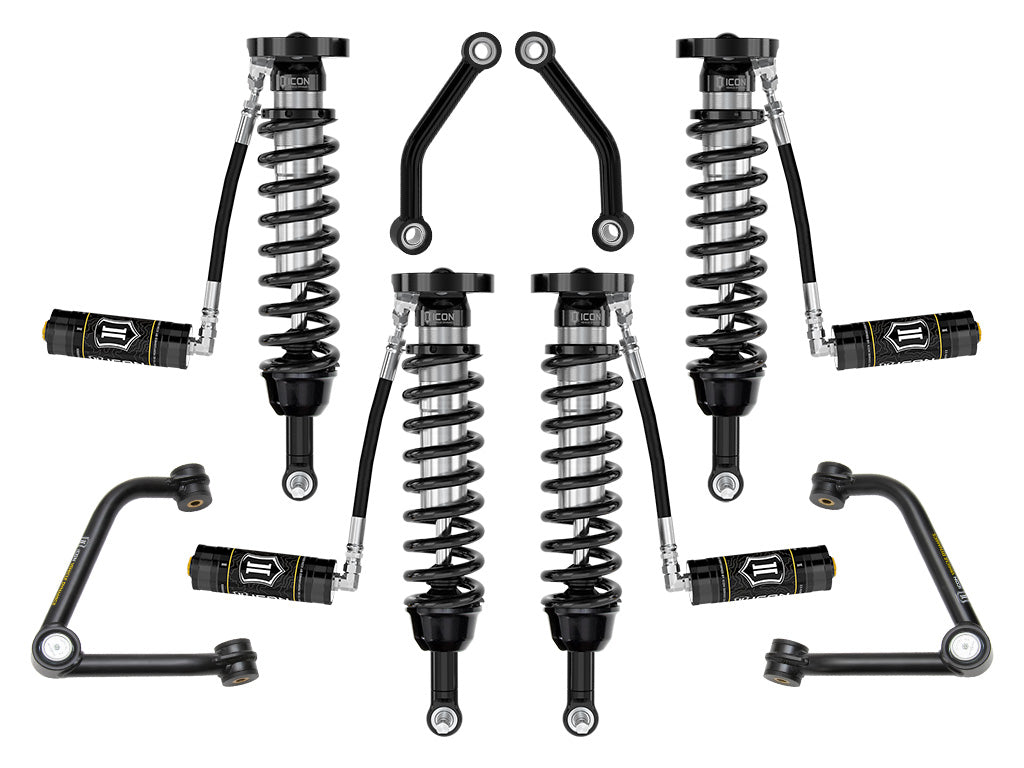

ICON 2021-2026 Chevrolet Tahoe & Suburban/2021-2026 GMC Yukon & Yukon XL 2.5-3.25" Lift Stage 3 Suspension System Tubular

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Adjustable front coilovers provide 2.5-3.25” of front lift height
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and re-tunable
• Adjustable rear coilovers provide 3-4” of rear lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 20% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8" shafts
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Tubular Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
• Fabricated rear toe links allow for proper rear end alignment with taller ride height

Vehicle Specific

• ICON 21-26 GM SUV 2.5-3.25" STAGE 3 SUSPENSION SYSTEM TUBULAR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103430034
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 3.25
• 5778: 3
• 5782: Closed
• 5783: Closed
• 7325: 2
• 7326: 2
• 9270: Linear
• 9271: Linear
• 10107: 700
• 11410: 3.25
• 11411: 4
• Active or Passive Suspension: Passive
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Adjustable Compression: No
• Adjustable Control Arm: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3.25
• Maximum Lift Rear: 4
• Minimum Lift Front: 2
• Minimum Lift Rear: 2.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate: 400
• Recommended Aftermarket Tires: 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 160.0000 POUNDS
