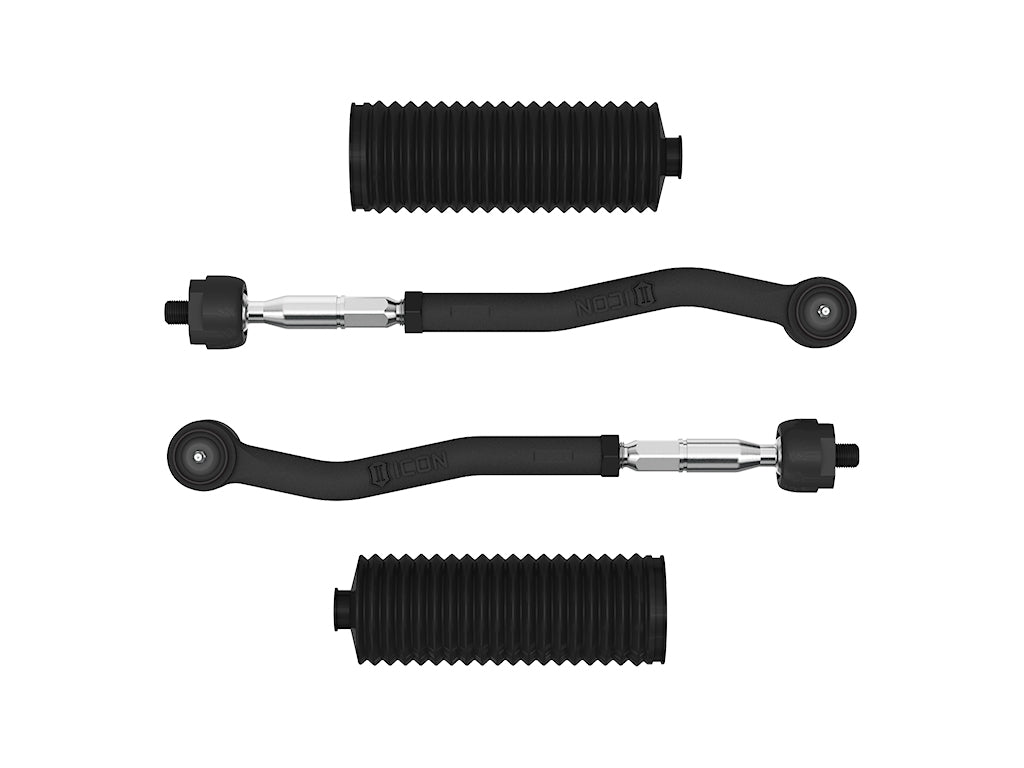

ICON 2021-2023 Ford Bronco Extreme Duty Tie Rod Kit

The strength limitations of the Bronco's factory steering tie rods has been well documented, especially by Bronco owners who venture into the big rocks with big tires. These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions than the stock units. The inner tie rod and ball stud is CNC machined from 4140 chromoly. The adjustment threads, where we've seen most of the failures happen on stock tie rods, are18mm on the XD Forged Tie Rods versus 14mm on stock Bronco tie rods. The outer tie rod is forged steel and has the same bend as the stock tie rods for fitting all of the Bronco's factory wheel diameters and offsets, along with just about any aftermarket wheel. The tie rod end is a beefier, metal on metal joint that is greaseable for extended service life and has the same range of operating angle as the stock tie rod ends. For the most hardcore of off-roaders, the ICON XD Forged Tie Rod kit is recommended as part of a comprehensive steering system upgrade strategy.

• 30% larger diameter than OE tie rods
• 4140 chromoly inner ball studs
• Forged steel outer tie rod ends
• Metal on metal ball joint design with grease zerks
• Design to fit around factory wheel off set
• Includes inner tie rod boots that protect the steering rack from dirt and debris
• Limited lifetime warranty

Vehicle Specific

• ICON 21-23 BRONCO XD TIE ROD KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103421209
• 10: Steel
• 17: Black
• 40: Yes
• 1924: Male
• 1925: Female
• 2334: Yes
• 2339: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• California Prop 65 Warning: Yes
• Grade Type: Extreme Duty

Extended Information:

• Country of Origin: Taiwan
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 14.0000 x 8.0000 x 6.0000 inches
• Weight: 7.0000 POUNDS
