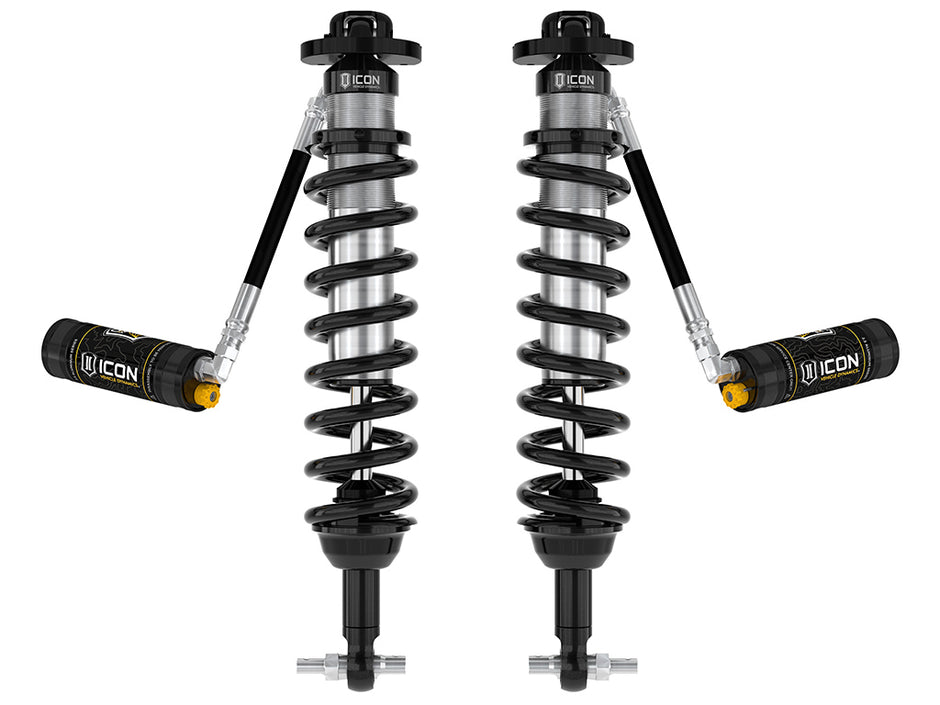

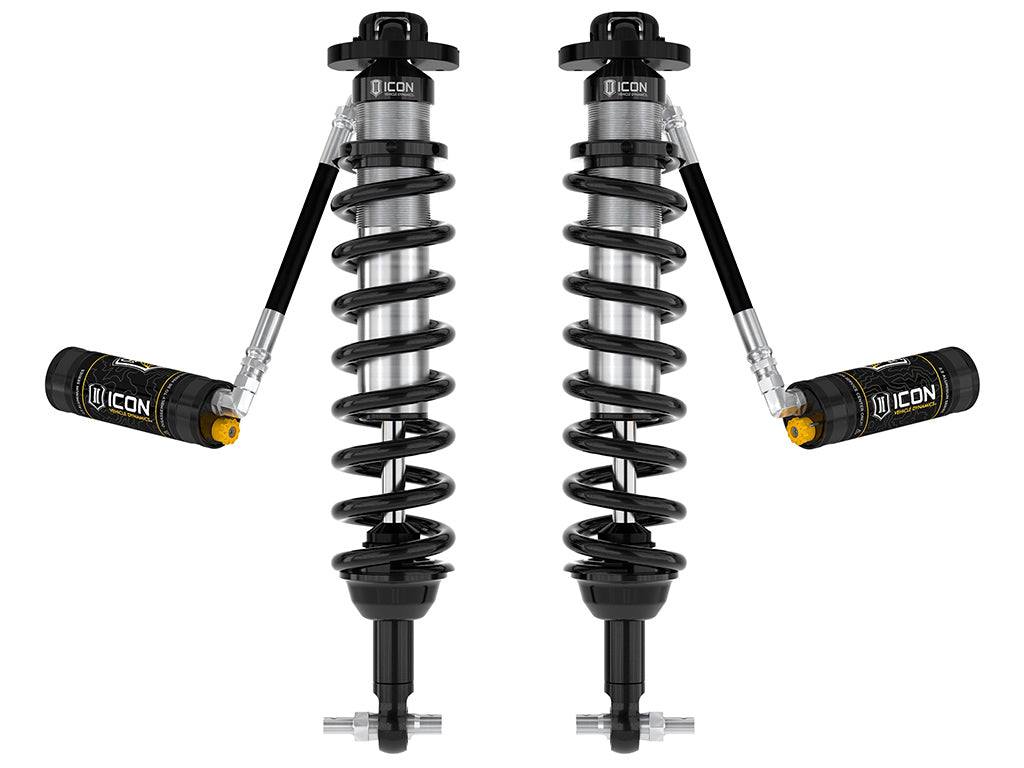

ICON 2021-2023 Ford Bronco Front 1.5-4” Lift V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDCV

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

• Increased wheel travel (up to 11.5”) and ride quality over stock
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 21-23 BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103412375
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 500
• 10527: Yes
• 10528: Yes
• 10530: Passive
• 10535: 4
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: Yes
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 18.14
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Extended Length: 24.53
• Gas Charged: Yes
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Maximum Lift: 4
• Minimum Lift: 1.5
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Rate Type: Linear
• Travel Length: 6.39
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 65.0000 POUNDS
