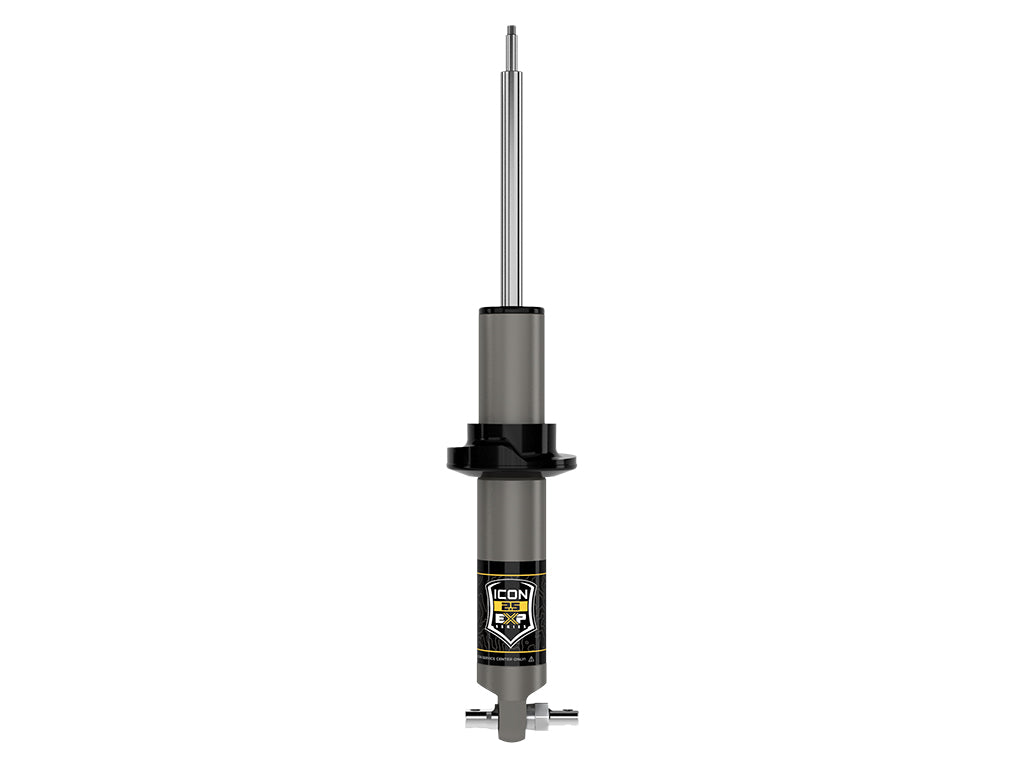

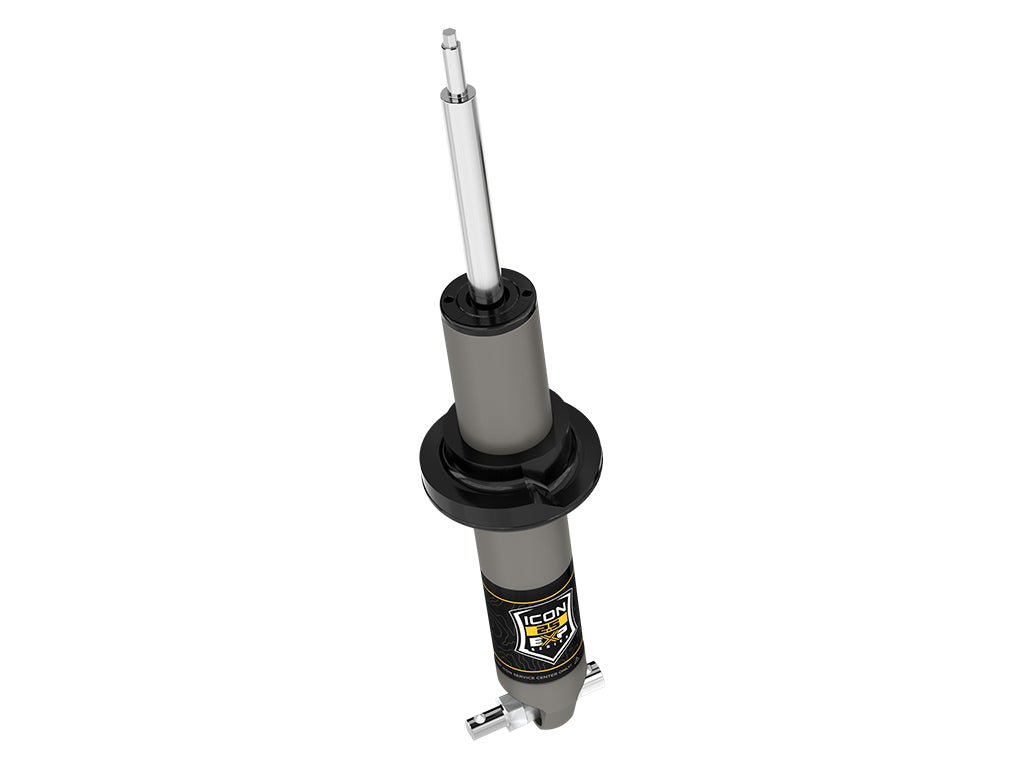

Continue shoppingICON 2021-2023 Ford Bronco Hoss 2.0 Pkg Front 0-2” Lift 2.5 EXP Series Coilover
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$535.55
-0%
Regular price
$535.55
Regular price
$535.55
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
- ICON 21-23 BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103414300
- 37: 23.5
- 48: BAR PIN
- 84: No
- 107: 16.93
- 108: 6.57
- 2329: Aluminum
- 3065: 2.5
- 3085: Single Tube
- 3390: Performance
- 5126: Gray
- 7233: No
- 8703: No
- 9621: No
- 9783: Yes
- 10526: Digressive
- 10527: No
- 10528: Yes
- 10529: No
- 10530: Passive
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT
- Adjustable Damping: NO
- Assembled: No
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: No
- Cylinder Finish: Hard Anodized
- Damping Type: Oil
- Gas Charged: Yes
- Material: Aluminum
- Maximum Lift: 2
- Maximum Ride Height Raising Distance: 2
- Minimum Lift: 0
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
- Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Remote Reservoir: NO
- Reservoir Style: Internal
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Upper Mount Type: Mounting Plate
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 32.0000 x 6.0000 x 5.0000 inches
- Weight: 13.0000 POUNDS
