Continue shoppingICON 2021-2023 Ford Bronco Non-Sasquatch 3-4" Lift Stage 7 Suspension System CDCV Billet
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$9,624.73
-0%
Regular price
$9,624.73
Regular price
$9,624.73
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
- Improved suspension performance and ride quality over stock
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

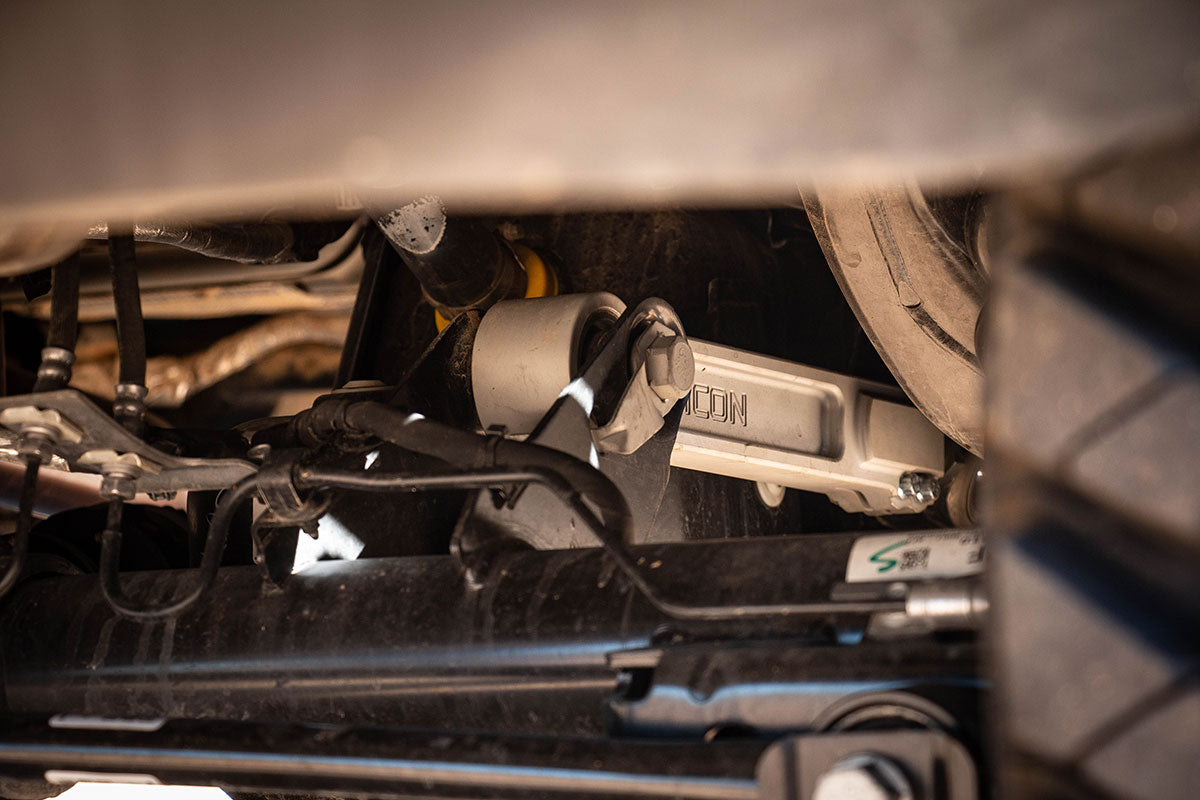

- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- ICON 21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 7 SUSPENSION SYSTEM CDCV BILLET
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103416175
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4
- 5782: Square
- 5783: Square
- 7325: 2
- 7326: 2
- 9271: Linear
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Damping Adjustment Type: Manual
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 4
- Maximum Lift Rear: 3
- Minimum Lift Front: 3
- Minimum Lift Rear: 2
- OEM Wheels & Tires Fitment: No
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Triple Rate
- Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Reservoir Style: Remote
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 38.0000 x 13.0000 x 8.0000 inches
- Weight: 209.0000 POUNDS
