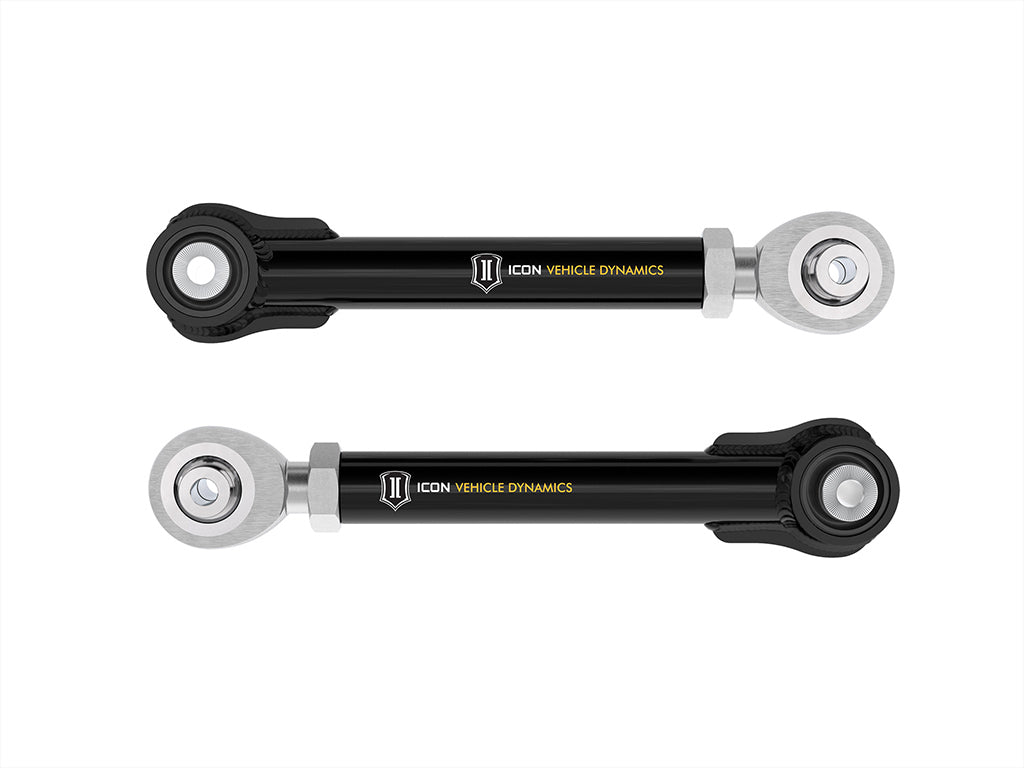

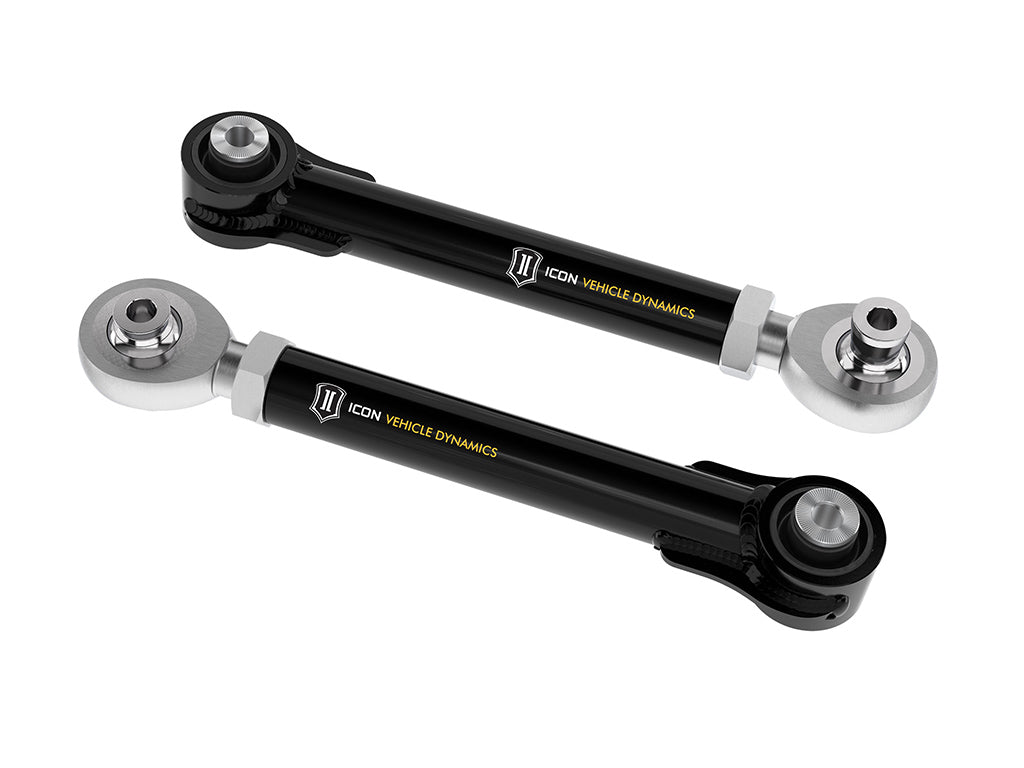

ICON 2021-2023 Ford Bronco Rear Tubular Upper Trailing Arm Kit

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2021-2023 Ford Bronco to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength with CNC machined threaded ends and bushing housings and feature a multi-stage black powder coat finish. These rear upper links are designed specifically for improved fuel tank clearance at maximum articulation and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

• Adjustable for various lift heights & driveline angles
• Improves link angles to help free rear suspension bind
• Designed for increased fuel tank clearance for maximum articulation
• CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
• Multi durometer bushings for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
• Fabricated components covered under ICON's Limited Lifetime Warranty

Vehicle Specific

• ICON 21-21 BRONCO TUBULAR REAR UPPER LINK KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103412320
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 2330: No
• 2339: No
• 2354: Performance
• 2371: Yes
• 2386: Tubular
• 2389: Steel
• 3390: Performance
• 4888: Black
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Bushing Color: Black
• California Prop 65 Warning: Yes
• Finish: Powdercoated

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.0000 x 8.0000 x 4.0000 inches
• Weight: 25.0000 POUNDS
