ICON 2021-2026 Ford F-150 2WD 0-3" Lift Stage 4 Suspension System
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$3,871.82
-0%
Regular price
$3,871.82
Regular price
$3,871.82
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

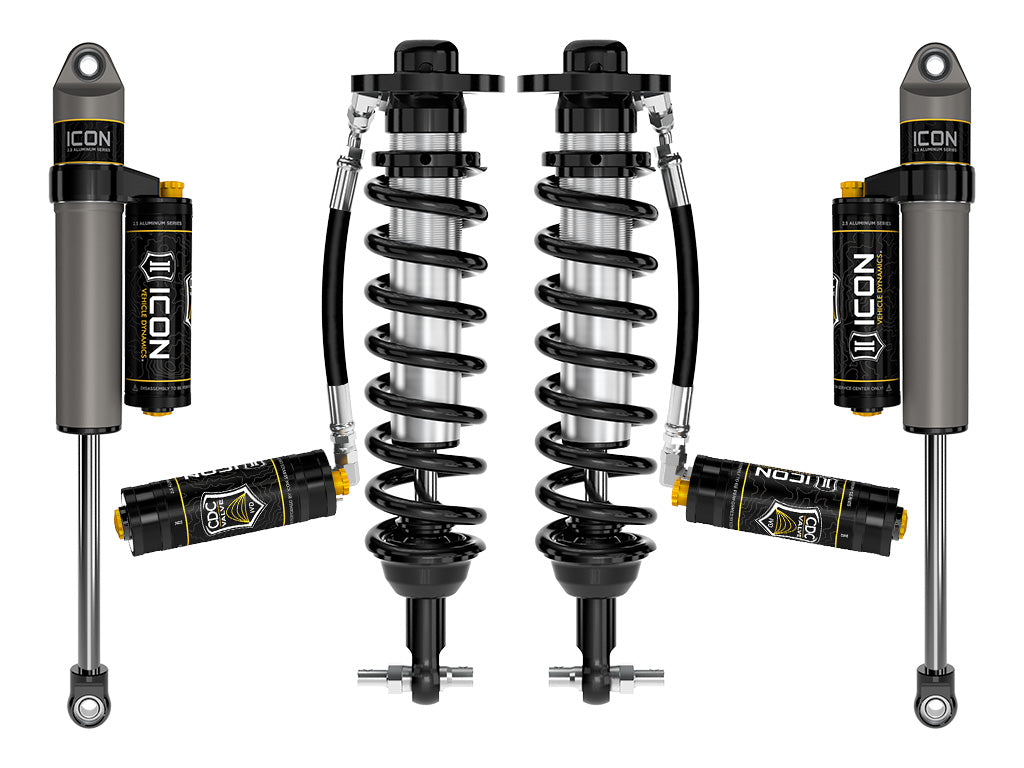

ICON Vehicle Dynamics 2021-2026 Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2021-2026 F-150 2WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- 100% Bolt-on system - no cutting or welding necessary for install
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Adjustable coilovers from 0-3" of lift height
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON 21-26 FORD F150 2WD 0-3" STAGE 4 SUSPENSION SYSTEM
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103431161
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 3
- 5778: 3
- 5782: Square
- 5783: Square
- 7325: 2
- 9271: Linear
- 10107: 550
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3
- Minimum Lift Front: 0
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 82.0000 POUNDS
