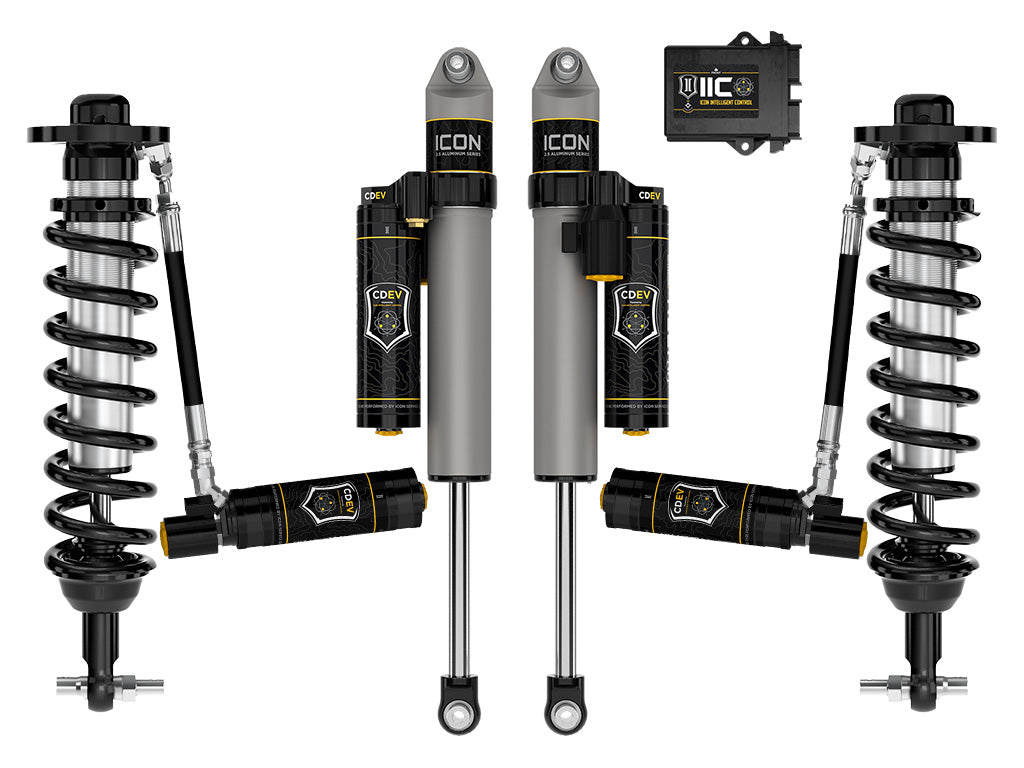

ICON 2021-2023 Ford F-150 2WD 0-3" Lift Stage 5 Suspension System

ICON Vehicle Dynamics 2021-2023 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs (with CDE Valves) for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks (with CDE Valves) utilize a vehicle-specific valving that balances the performance of the truck from front to rear. =Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.The ICON Vehicle Dynamics 2021-2023 F-150 2WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 100% Bolt-on system - no cutting or welding necessary for install
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers from 0-3" of lift height
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 21-23 FORD F150 2WD 0-3" STAGE 5 SUSPENSION SYSTEM

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103431178
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Active
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 99.0000 POUNDS
