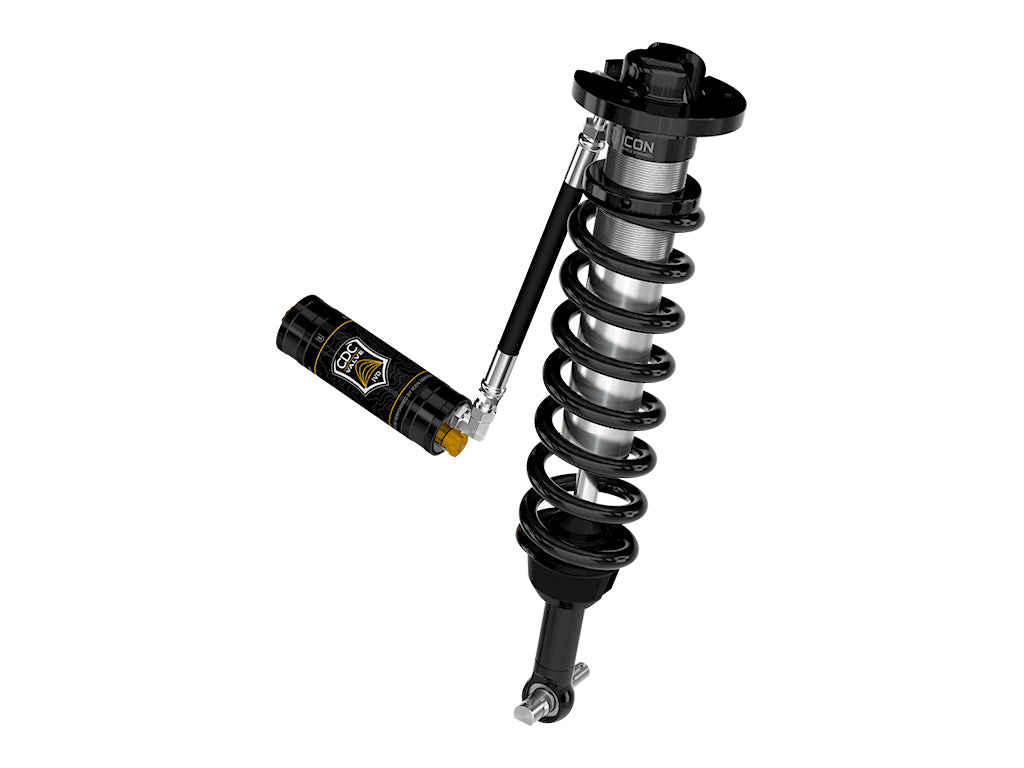

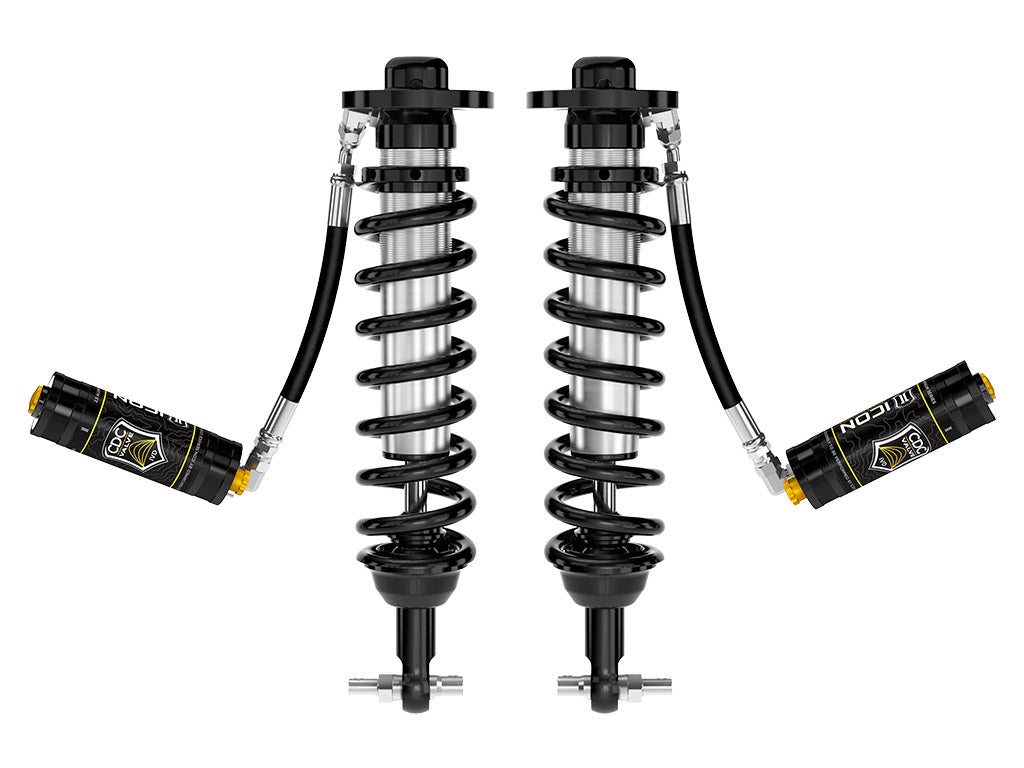

ICON 2021-2024 Ford F-150 4WD 0-2.75" Lift Front V.S. 2.5 Series Coilovers Remote Reservoir W/ CDCV Pair

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD.

• Increased wheel travel and ride quality over stock
• ICON CDCV equipped for external tuneability of your shocks
• Adjustable 0-2.75" lift height
• ICON engineered Eibach Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• External reservoirs to attain cooler operating temperatures during extended off-road use

Vehicle Specific

• ICON 21-24 F150 4WD 0-2.75" 2.5 VS RR CDCV COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103411538
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 550
• 10527: Yes
• 10528: Yes
• 10530: Passive
• 10535: 2.75
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: Yes
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 18.29
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Manual
• Damping Type: Oil
• Extended Length: 23.46
• Gas Charged: Yes
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Maximum Lift: 2.75
• Minimum Lift: 0
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Rate Type: Linear
• Travel Length: 5.17
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 64.0000 POUNDS
