Continue shoppingICON 2021-2024 Ford F-150 4WD 2.75-3.5" Lift Front V.S. 2.5 Series Coilovers Remote Reservoir W/ CDEV Pair
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,755.95
-0%
Regular price
$2,755.95
Regular price
$2,755.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

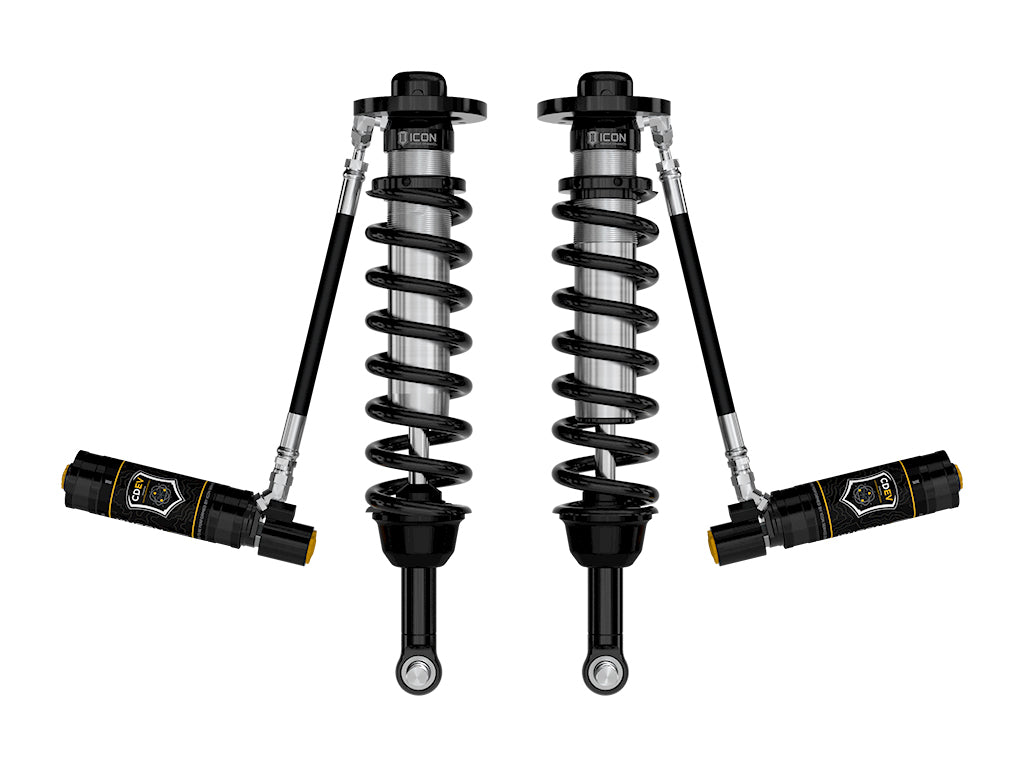

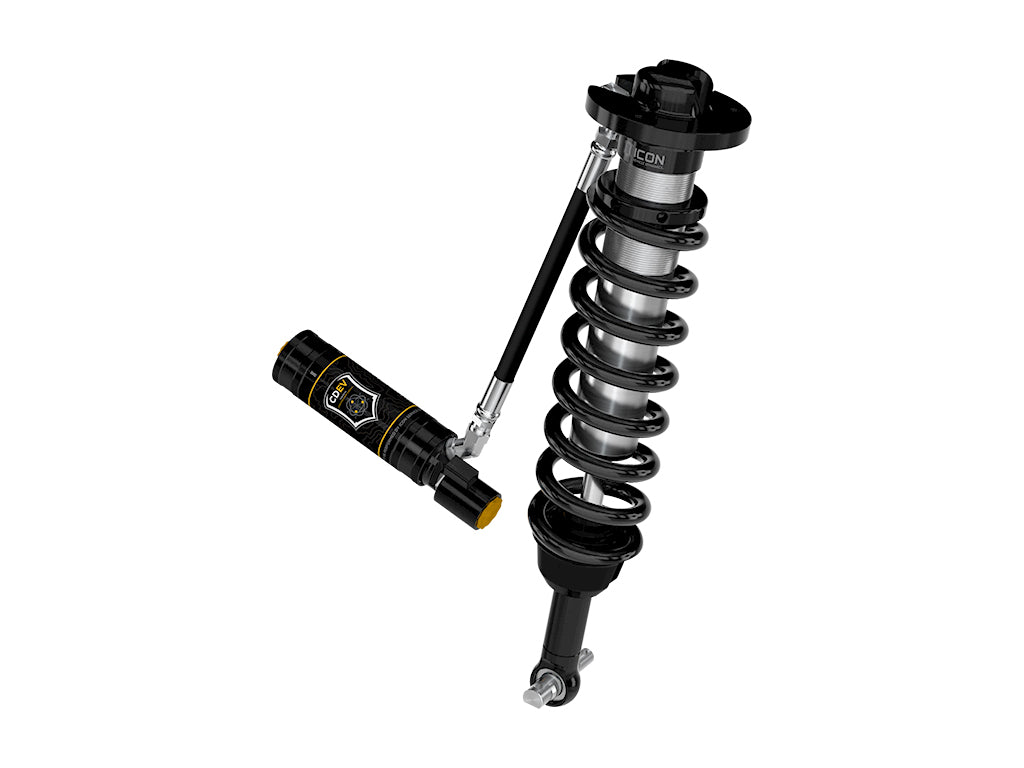

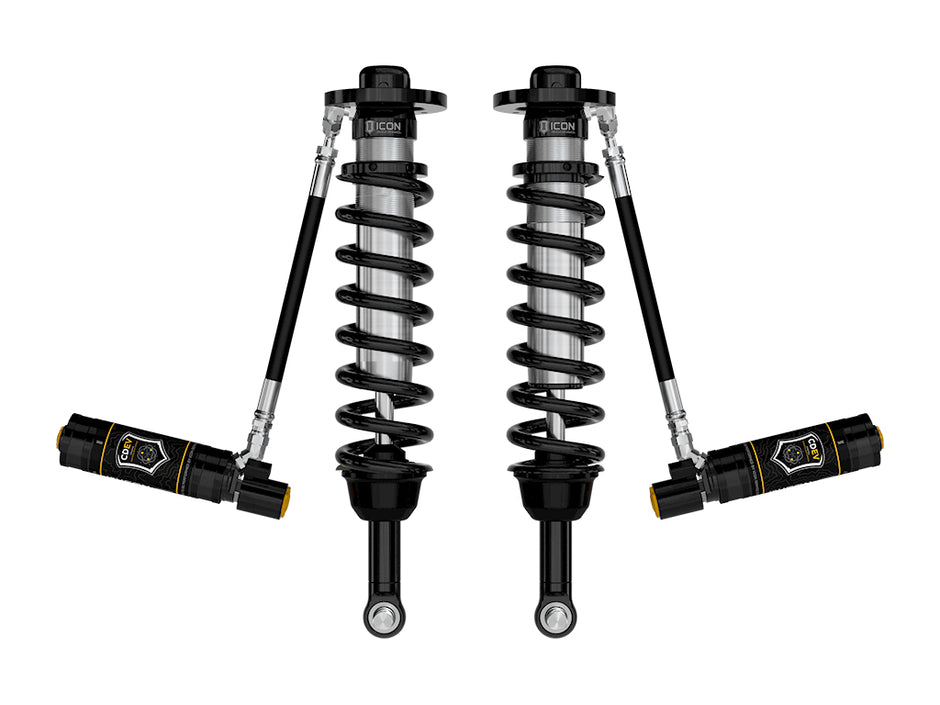

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON rear 2.5 Aluminum Series CDEV shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
- Increased wheel travel and ride quality over stock
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 2.75-3.5" of lift height over stock
- Remote reservoir to attain cooler operating temperatures during extended off-road use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- ICON 21-24 F150 4WD 3" LIFT 2.5 VS RR CDEV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103423708
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 550
- 10527: Yes
- 10528: Yes
- 10530: Active
- 10535: 3.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 18.67
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Extended Length: 23.88
- Gas Charged: yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 3.5
- Minimum Lift: 2.75
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 5.22
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 8.0000 inches
- Weight: 67.0000 POUNDS
PDF:
