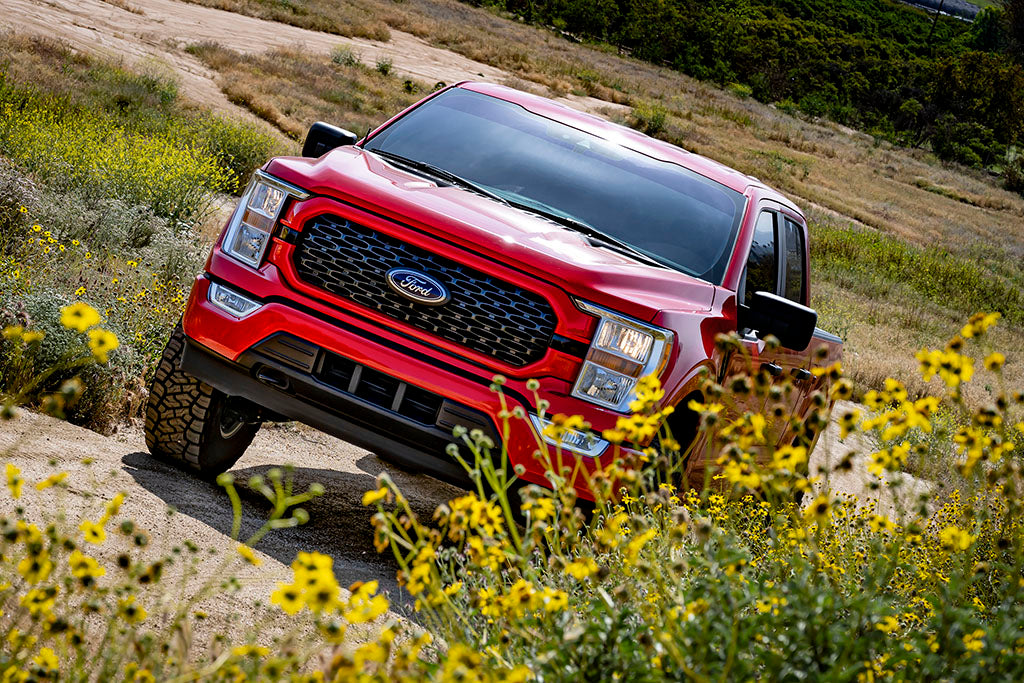

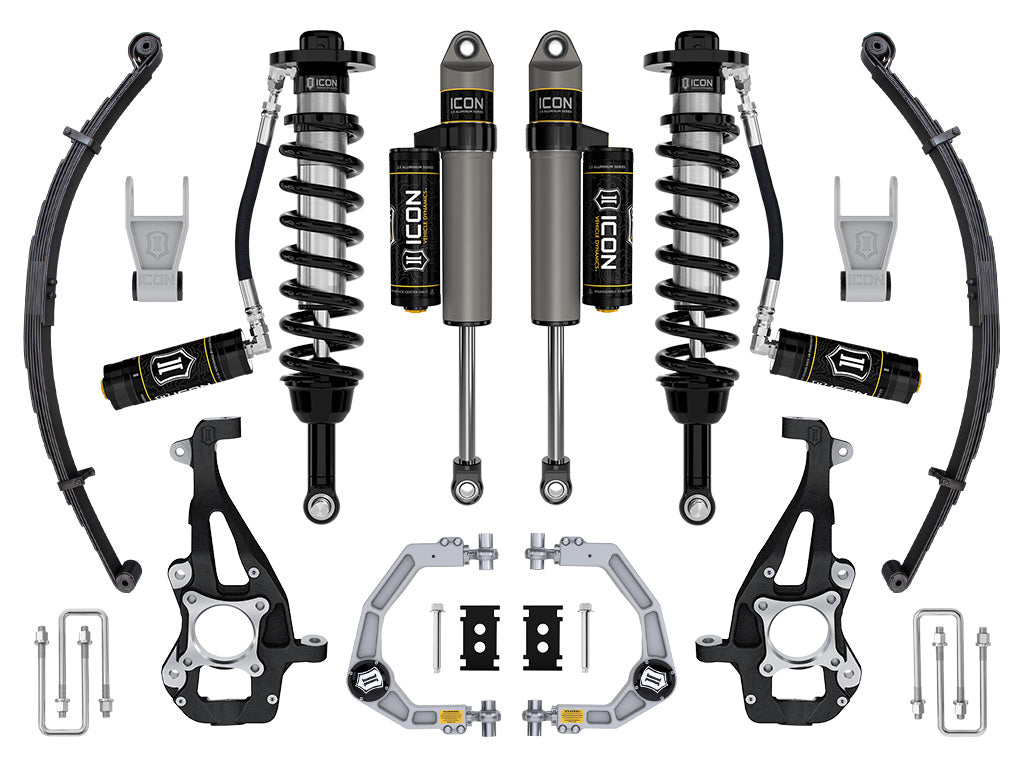

ICON 2021-2024 Ford F-150 4WD 3.5-4.5" Lift Stage 3 Suspension System Billet W/ Leaf Packs

• High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 3 user-adjustable rear spring rates for unique vehicle setups
• Reduced rear axle wrap and improved ride quality compared to stock leaf springs
• Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
• 100% Bolt-on system - no cutting or welding necessary for install
• Adjustable coilovers offer 3.5-4.5" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin

• ICON 21-24 FORD F150 4WD 3.5-4.5" STAGE 3 SUSPENSION SYS BILLET UCA / LEAF PACK

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103427379
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 6111: 8
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 4.5
• Maximum Lift Rear: 3.5
• Minimum Lift Front: 3.5
• Minimum Lift Rear: 1.5
• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate Type: Variable
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 48.0000 x 10.0000 inches
• Weight: 426.0000 POUNDS
