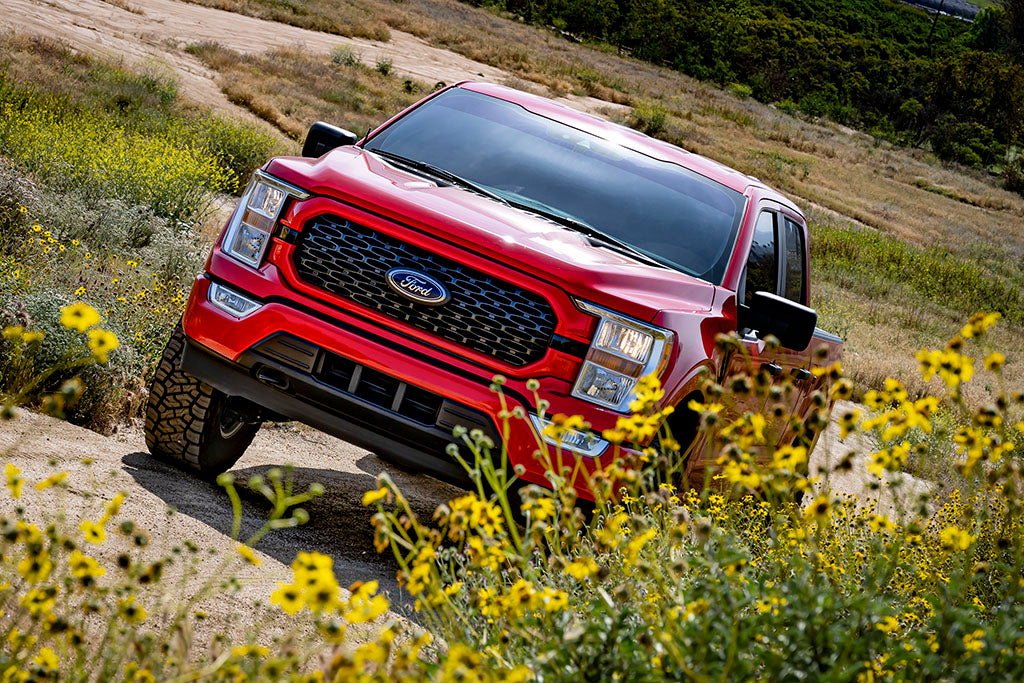

Continue shoppingICON 2021-2024 Ford F-150 4WD 3.5-4.5" Lift Stage 4 Suspension System Billet CDCV W/ Leaf Packs
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$7,791.48
-0%
Regular price
$7,791.48
Regular price
$7,791.48
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
+1.50" rear lift height over stock w/ 400lb constant load
- High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
- High strength alloy CNC machined lower bar pin
- 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
- 6061 Aircraft grade aluminum CNC machined components
- 3 user-adjustable rear spring rates for unique vehicle setups
- Reduced rear axle wrap and improved ride quality compared to stock leaf springs
- Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
- 100% Bolt-on system - no cutting or welding necessary for install
- Adjustable coilovers offer 3.5-4.5" of front lift height over stock
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling
- Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
- 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection

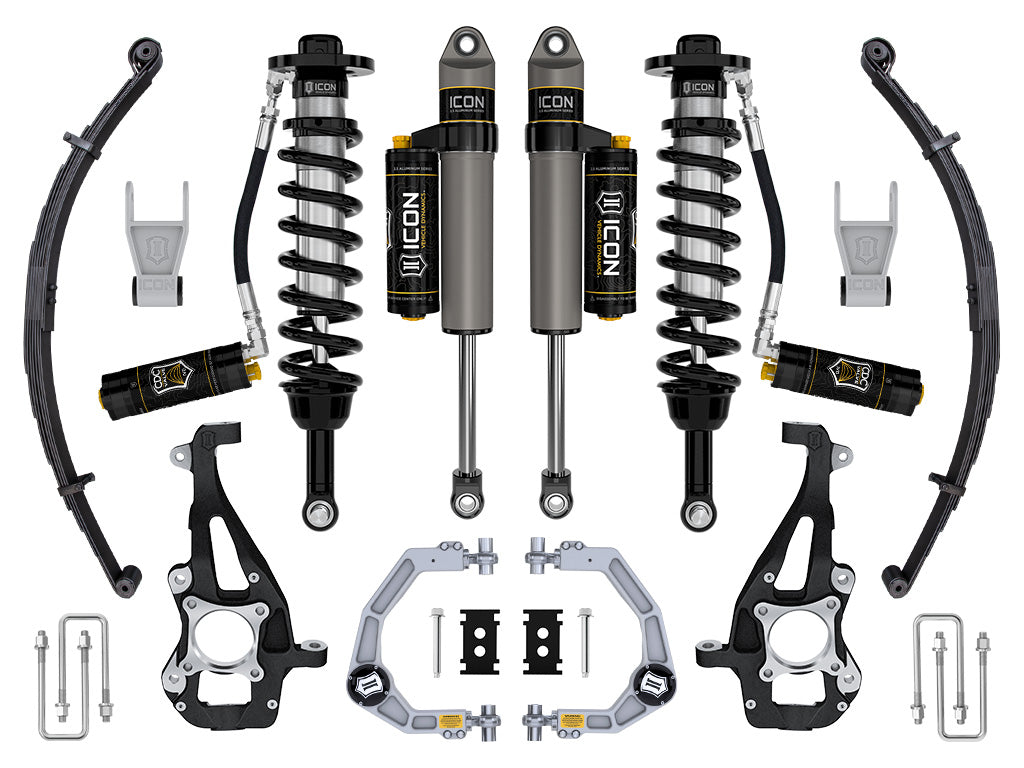

- ICON 21-24 FORD F150 4WD 3.5-4.5" STAGE 4 SUSPENSION SYSTEM BILLET CDCV LEAF PACK
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103427393
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4.5
- 6111: 8
- 7325: 2
- 9271: Linear
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- California Prop 65 Warning: Yes
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 4.5
- Maximum Lift Rear: 3.5
- Minimum Lift Front: 3.5
- Minimum Lift Rear: 1.5
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Variable
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 48.0000 x 48.0000 x 10.0000 inches
- Weight: 426.0000 POUNDS
