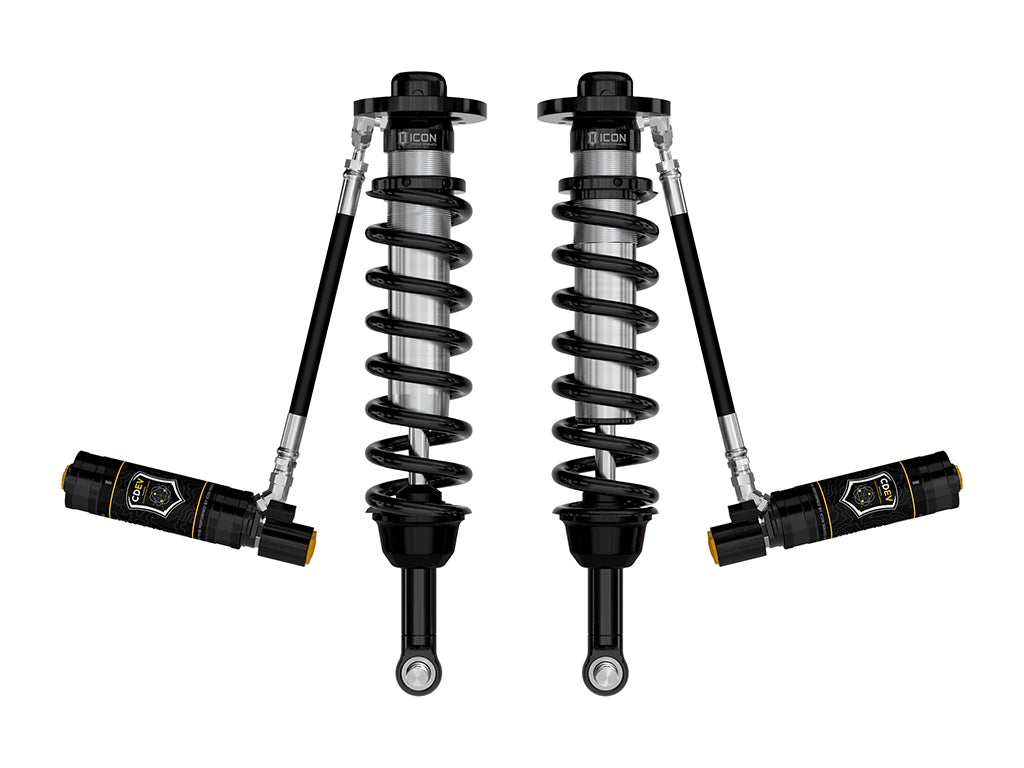

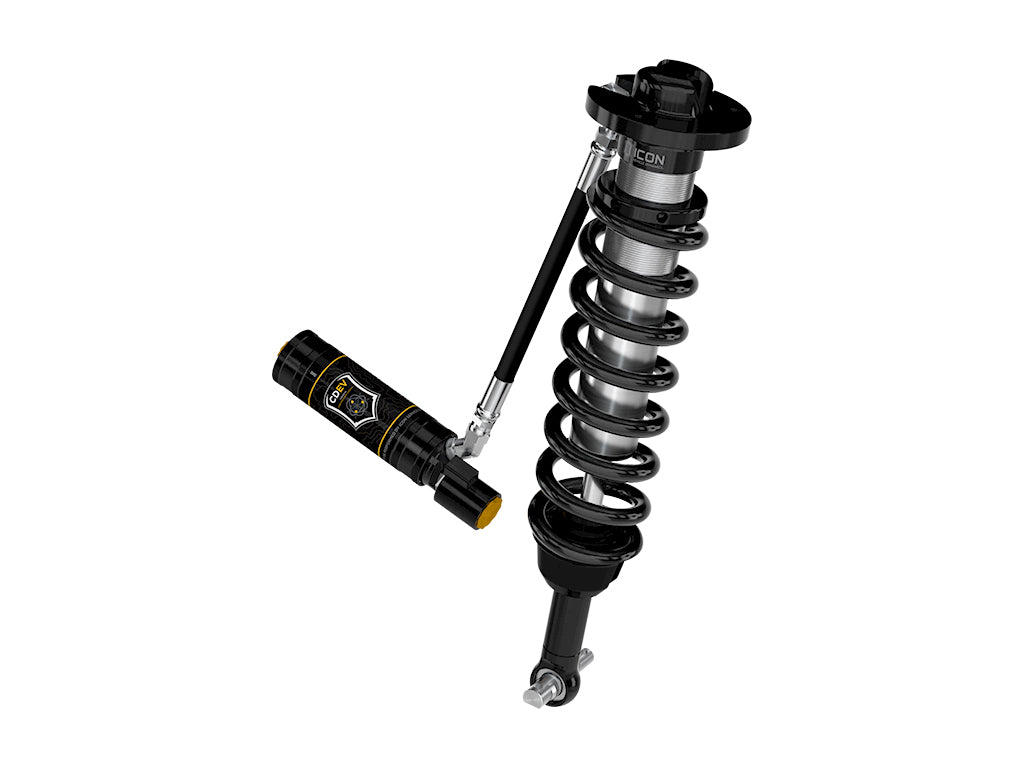

Continue shoppingICON 2021-2024 Ford F-150 4WD/Tremor 3.5-4.5"/2.5-3" Lift Front V.S. 2.5 Series Coilovers Remote Reservoir W/ CDEV Pair
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,755.95
-0%
Regular price
$2,755.95
Regular price
$2,755.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Adjustable for 2.5-3" of lift height over stock on F-150 Tremor or 3.5-4.5" over stock on other F-150 sub-models with ICON Front Knuckle Kit
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- ICON 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDEV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103425696
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 550
- 10527: Yes
- 10528: Yes
- 10530: Active
- 10535: 4.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 18.67
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Extended Length: 24.03
- Gas Charged: yes
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Maximum Lift: 4.5
- Minimum Lift: 3.5
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat on Bar Pin
- Spring Rate Type: Linear
- Travel Length: 5.37
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 8.0000 inches
- Weight: 65.0000 POUNDS
