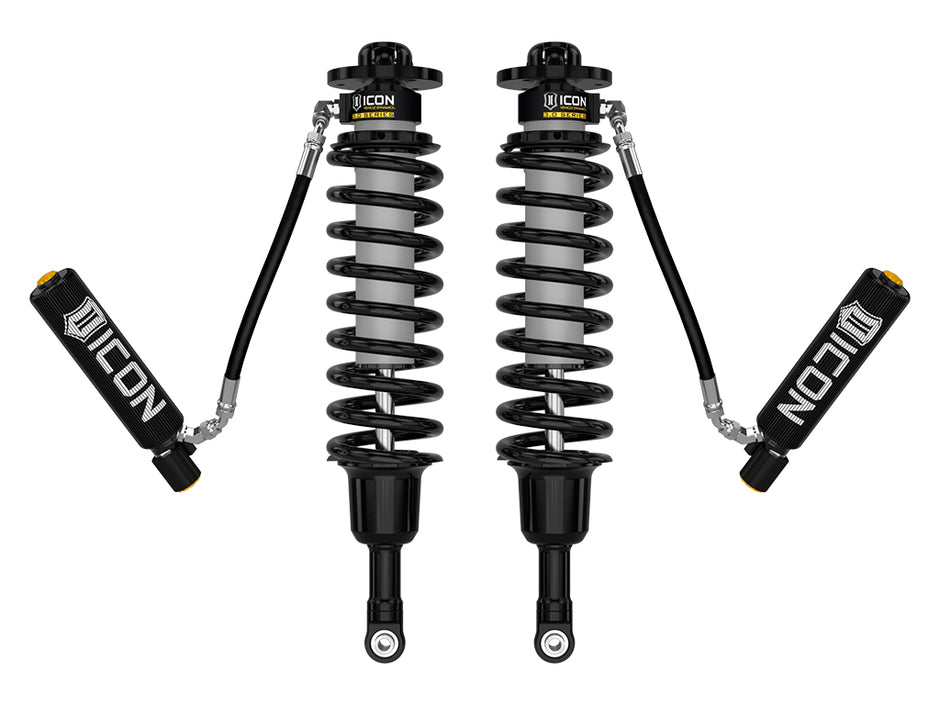

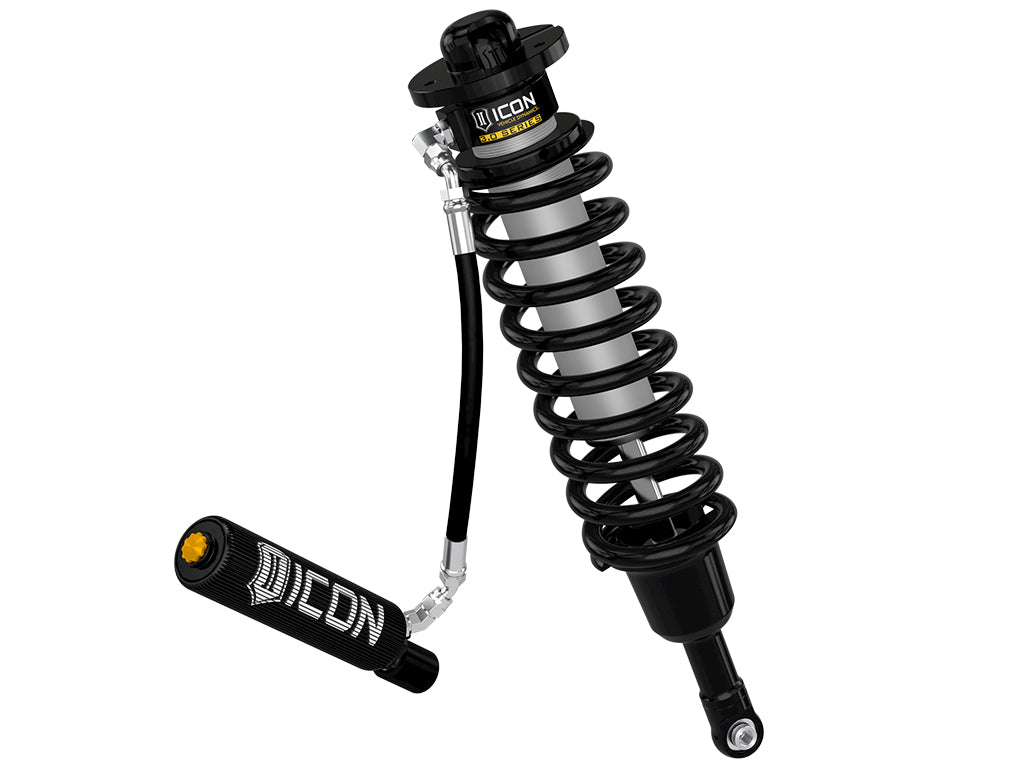

Continue shoppingICON 2021-2025 Ford F-150 Raptor 1-3" Lift Front V.S. 3.0 Series Coilover Kit Remote Reservoir W/ CDEV
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$4,367.95
-0%
Regular price
$4,367.95
Regular price
$4,367.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance and improve upon the functionality provided by the factory active shock system. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control (IIC) and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. With the shock absorbers no longer directly wired to the Raptor's ECU the IIC/CDEV system also allows drivers to dial in their preferred shock damping settings independently from the selected vehicle drive mode and with more refined resolution than afforded by the factory system. This allows for a more customized vehicle set up with the perfect blend of comfort and performance.
- Adjustable coilovers yield 1-3” of front lift height
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- Cerakoted shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Superior low speed control reduces body roll and increases on-road stability
- ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Heavy duty CNC machined 1” shock shafts
- ICON 21-25 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103435497
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10107: 500
- 10527: Yes
- 10528: Yes
- 10530: Active
- 10531: Ceramic Coated
- 10535: 3
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Adjustable Damping: Yes
- Body Diameter: 3
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 21.16
- Cylinder Color: Gray
- Damping Adjustment Type: Electronic
- Damping Type: Oil
- Dust Shield: No
- Extended Length: 29.39
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: .75
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 1
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 8.27
- Upper Mount Type: Mounting Plate
- Valving Type: Compression: Linear
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.0000 x 15.0000 x 11.0000 inches
- Weight: 85.0000 POUNDS
