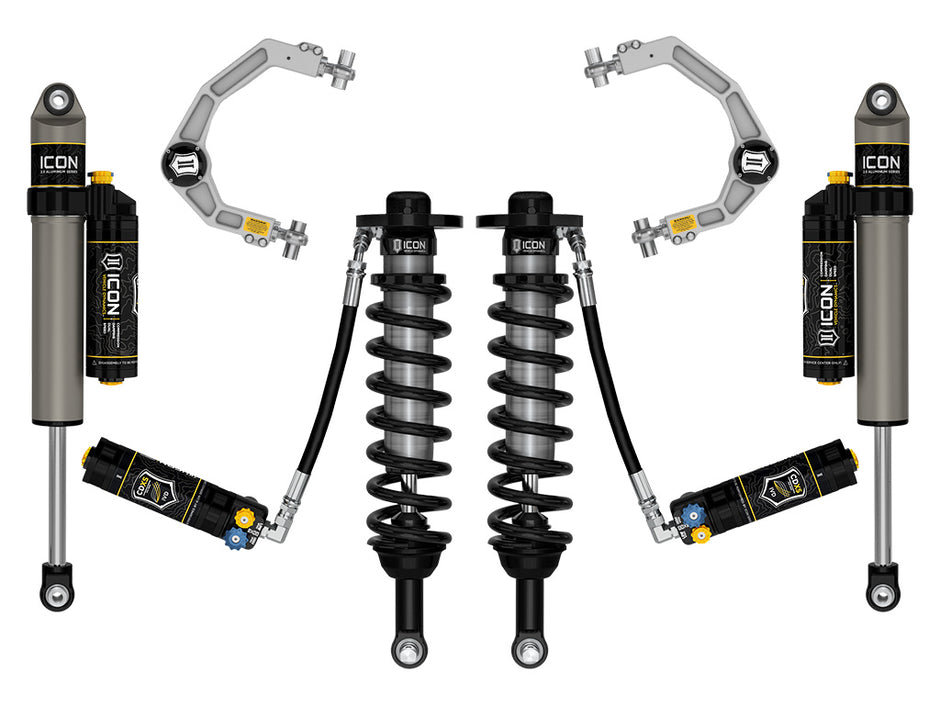

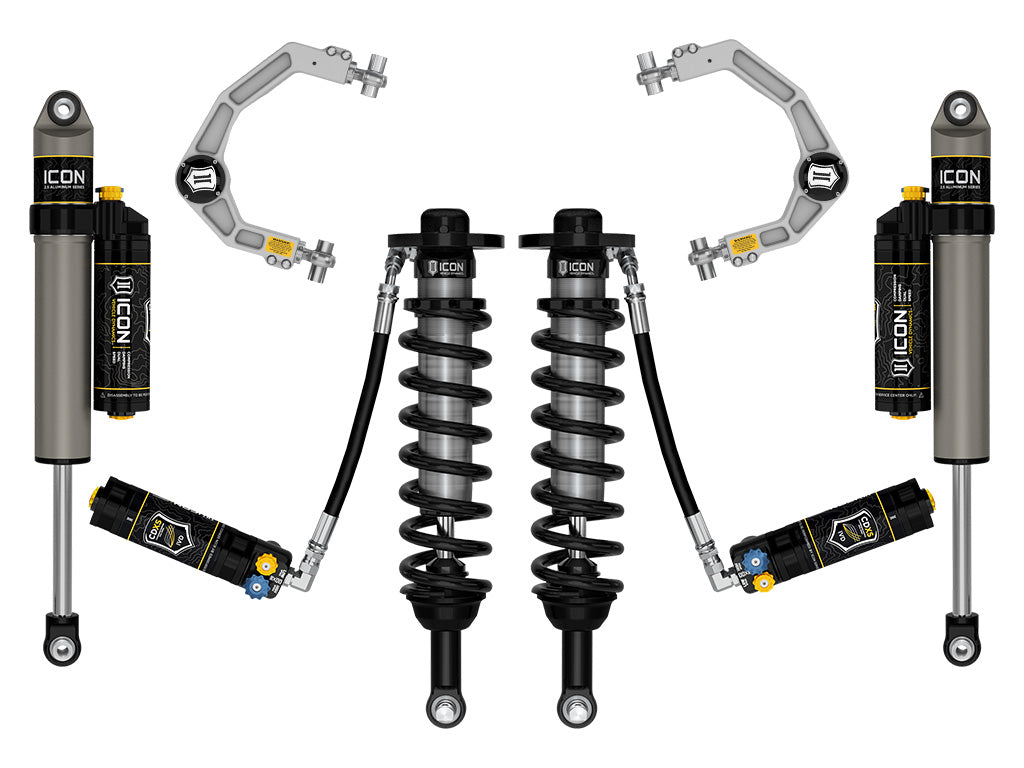

ICON 2021-2026 Ford F-150 2WD 0-3" Lift Stage 4 Suspension System Billet CDXS

This system features upper control arms with ICON's patented Delta Joint PRO. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

• Adjustable coilovers offer 0-3" of front lift height over stock
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system - no cutting or welding necessary for install
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control

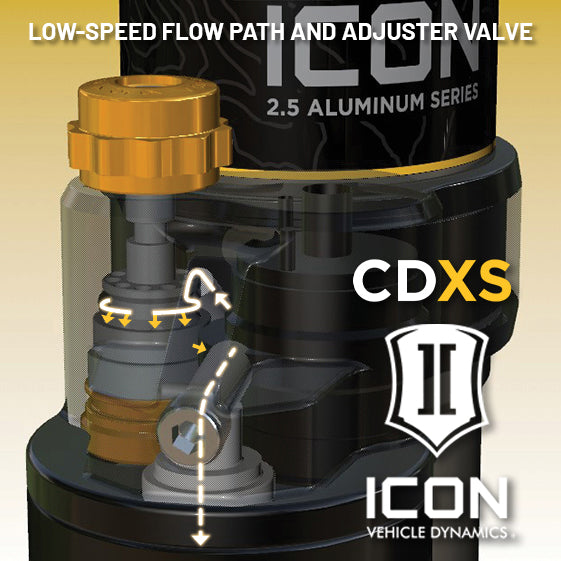

• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin

Vehicle Specific

• ICON 21-26 FORD F150 2WD 0-3" STAGE 4 SUSPENSION SYSTEM BILLET CDXS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103437545
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5778: 3
• 5782: Square
• 5783: Square
• 7325: 2
• 9271: Linear
• 10107: 500
• 11410: 3
• 11411: 1
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Dual Speed Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 3
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 110.0000 POUNDS
