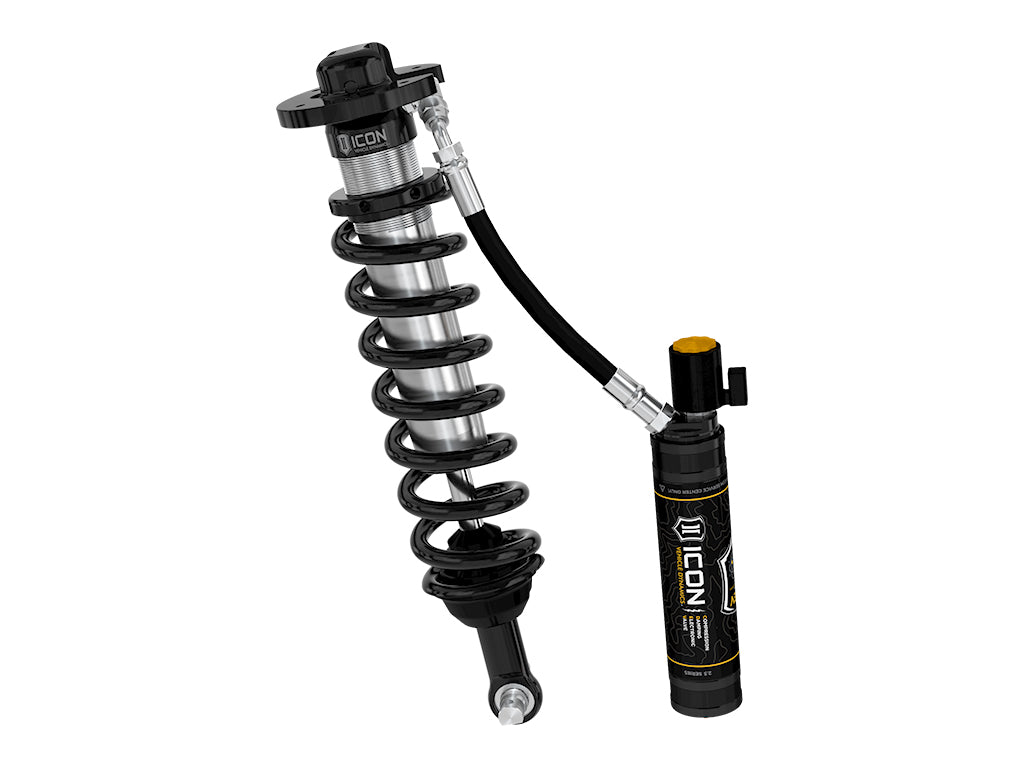

Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV rear coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.
- Height-adjustable coilovers offer 0-2" of lowered height adjustment
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with opmized spring rates for improved ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- High strength alloy CNC machined lower bar pins
Vehicle Specific

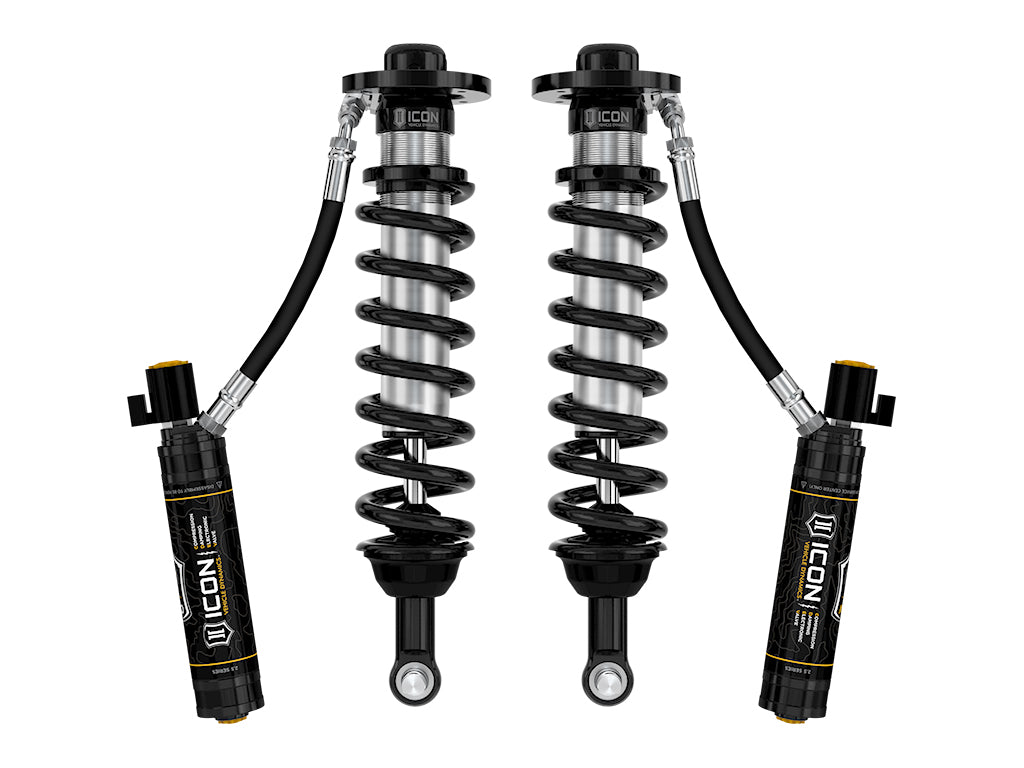

- 22-23 FORD F150 LIGHTNING LOWERED FRONT 2.5 VS RR CDEV COILOVER KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103423616
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9476: Yes
-
9783: Yes
-
10107: 550
-
10527: Yes
-
10528: Yes
-
10530: Active
-
10534: 2
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
-
Adjustable Damping: Yes
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 17.37
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Adjustment Type: Electronic
-
Damping Type: Oil
-
Extended Length: 22.54
-
Gas Charged: Yes
-
Lower Mount Type: BAR PIN
-
Material: Aluminum
-
Maximum Drop: 2
-
Minimum Drop: 0
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.)
-
Recommended Aftermarket Wheels: 20x9" with 6” Backspace / 25mm Offset
-
Reservoir Style: Remote
-
Self-Leveling: No
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
-
Spring Rate Type: Linear
-
Travel Length: 5.17
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 31.0000 x 13.0000 x 7.0000 inches
-
Weight: 60.0000 POUNDS
