Continue shoppingICON 2022-2024 Toyota Tundra 3-3.5" Lift Rear V.S. 2.0 Aluminum Series Shock Absorber Internal Reservoir
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$200.80
-0%
Regular price
$200.80
Regular price
$200.80
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

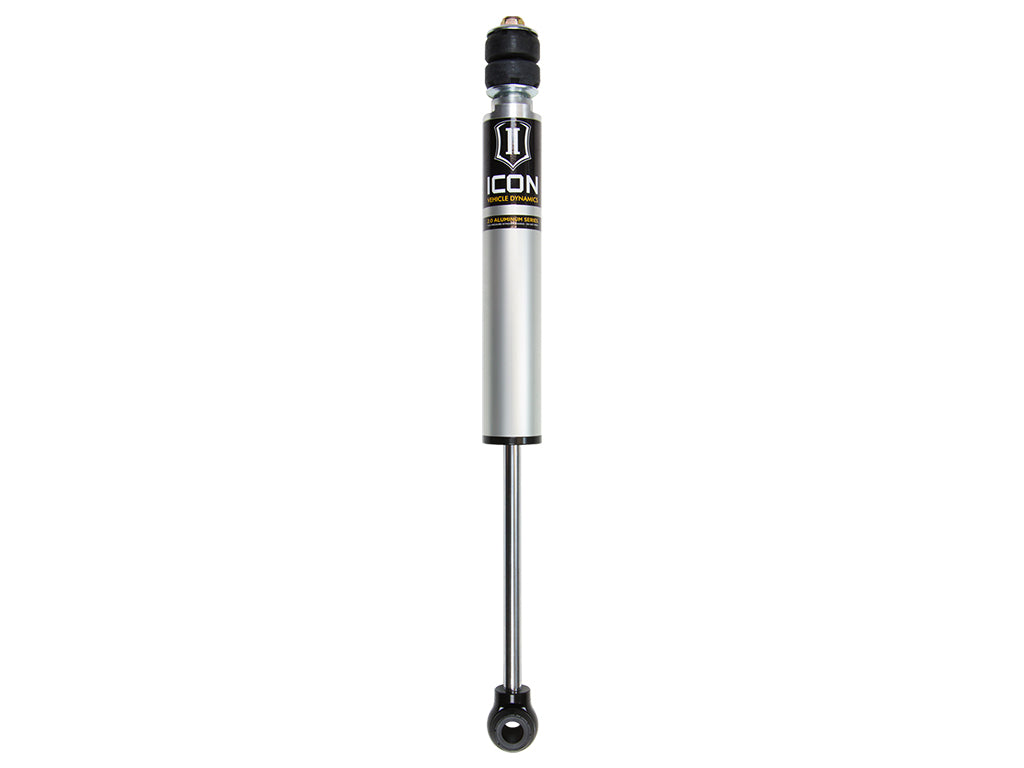

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
- Fully rebuildable and re-tunable
- ICON 22-24 TUNDRA 3.5" REAR 2.0 VS IR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103425566
- 17: Black
- 30: No
- 48: Eyelet
- 49: Stem
- 50: No
- 51: Yes
- 52: 2
- 200: Anodized
- 408: Center of Eyelet
- 409: Shoulder of Stem
- 621: Aluminum
- 1183: .625
- 1385: Gray
- 2329: Aluminum
- 3065: 2
- 3085: Single Tube
- 3390: Performance
- 5126: Silver
- 7233: No
- 8703: Yes
- 9388: Rubber
- 9444: No
- 9476: No
- 9783: No
- 9792: No
- 9801: 1.75
- 9908: Yes
- 10526: Digressive
- 10527: No
- 10528: No
- 10529: No
- 10530: Passive
- 10535: 3.5
- 11167: 3
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Adjustable: No
- Adjustable Damping: No
- Bore Diameter: 1.75
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- California Prop 65 Warning: Yes
- Cylinder Finish: Anodized
- Damping Type: Oil
- Dust Boot Included: Yes
- Dust Shield: No
- External Reservoir: NO
- Material: Aluminum
- Reservoir Type: Internal
- Service Parts: 202002 - 2.0 IFP REBUILD KIT
- Shaft Diameter: 0.625
- Shaft Material: Chrome
- Suspension Type: Air
Extended Information:
- Country of Origin: US
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 40.0000 x 3.0000 x 3.0000 inches
- Weight: 4.0000 POUNDS
