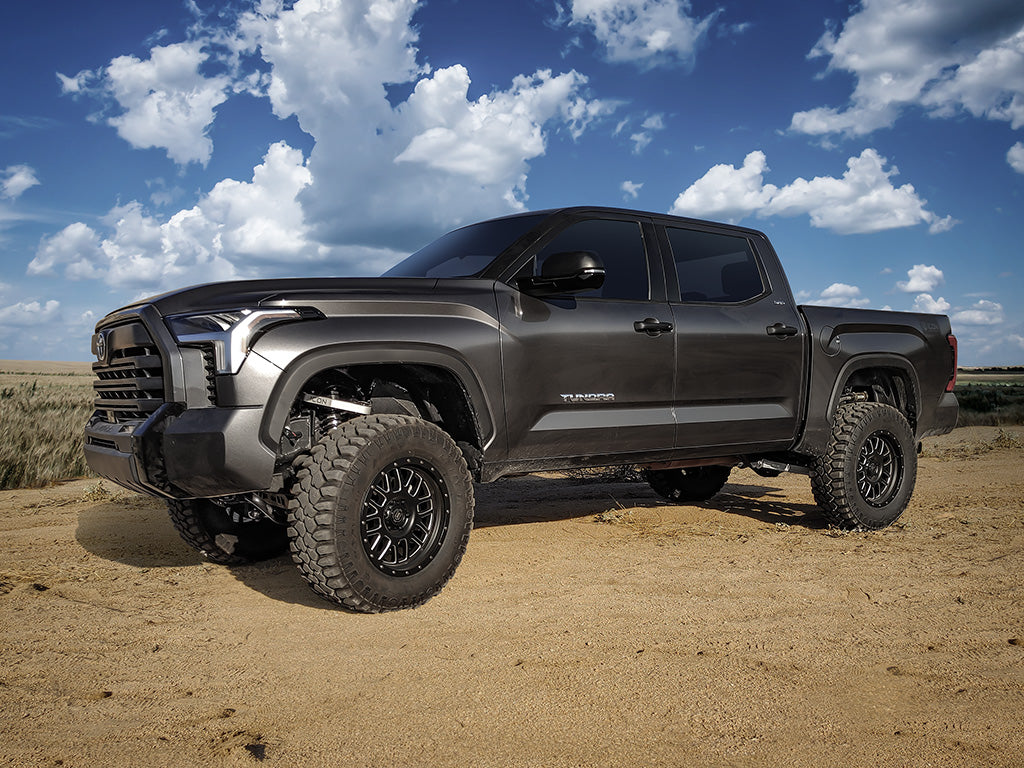

Continue shoppingICON 2022-2024 Toyota Tundra 6" Lift Stage 1 Suspension System
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,721.33
-0%
Regular price
$3,721.33
Regular price
$3,721.33
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

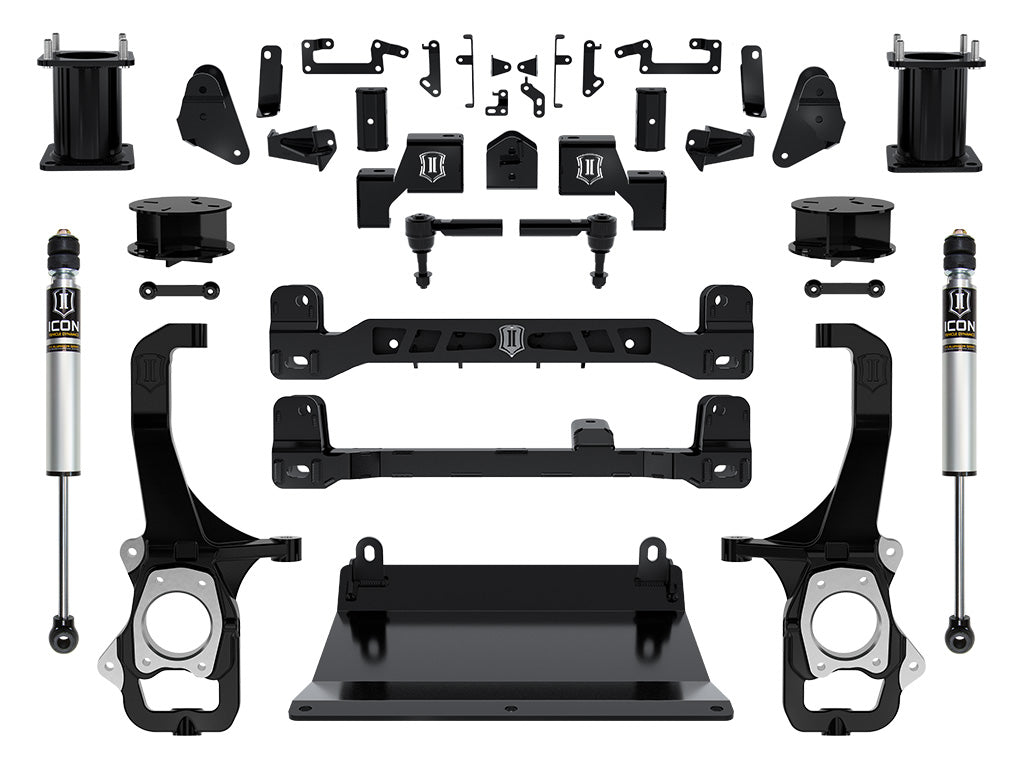

- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- 2.0 Aluminum Series rear shocks to improve rear suspension performance
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
- Maintains factory track width
- Front coilover spacer kit with heavy duty steel construction
- Provides 6" front suspension lift with only 4" of crossmember drop
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON 22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103425313
- 30: Yes
- 2371: No
- 3097: Yes
- 3390: Performance
- 5520: 6
- 9900: No
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Maximum Lift Front: 6
- Maximum Lift Rear: 3
- OEM Wheels & Tires Fitment: No
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 25.0000 x 24.0000 x 9.0000 inches
- Weight: 273.0000 POUNDS
