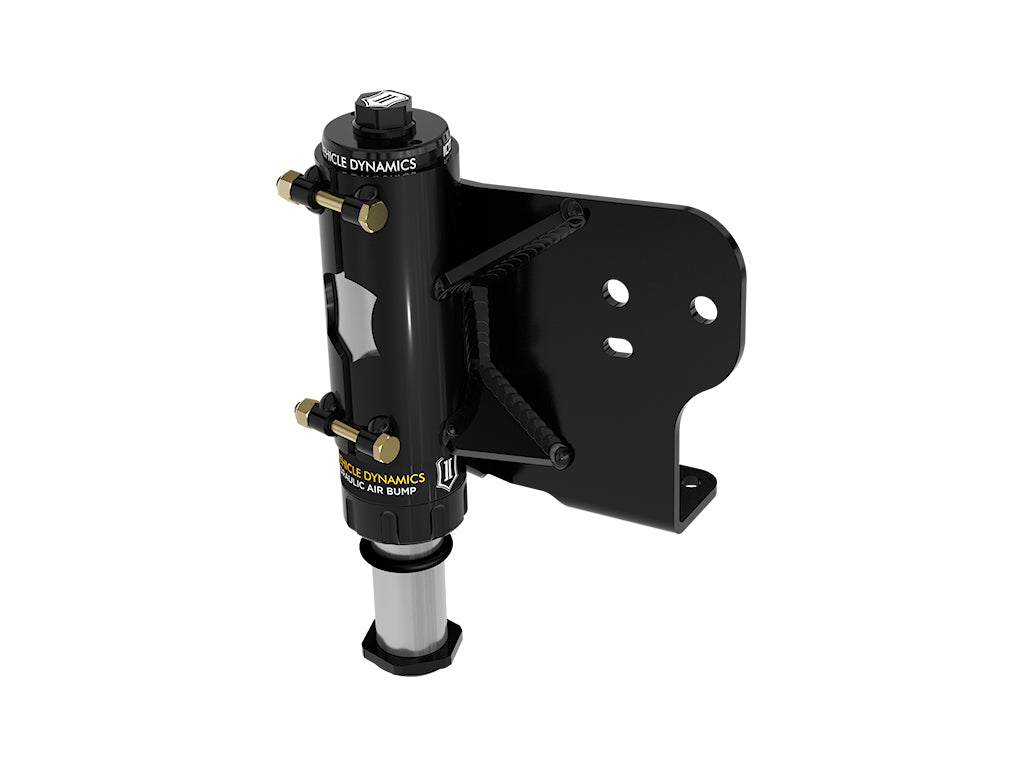

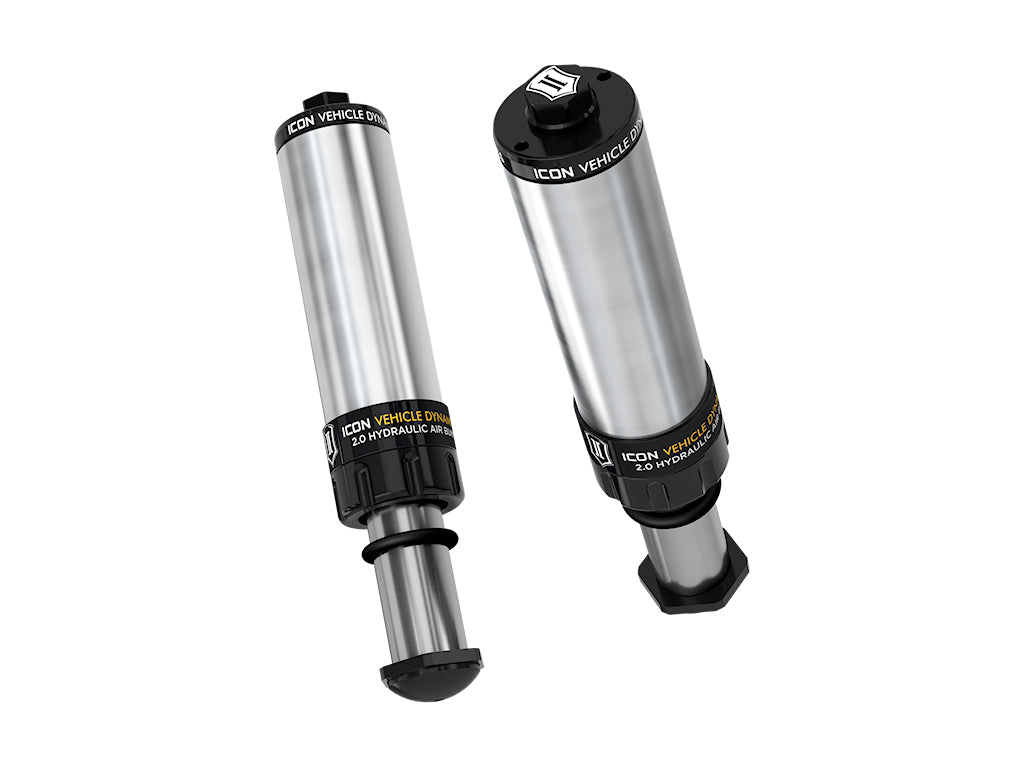

This hydraulic bump stop system was developed as an OEM replacement, making installation a simple and straightforward bolt-on affair. With no major cutting, welding, or fabrication required you have the option to return the vehicle back to its stock form. The factory rubber bump stops have a limited energy absorption capacity and a rapid release of this energy upon rebound – This translates into a harsh ride and poor handling in rough terrain. ICON hydraulic bump stops absorb and release this energy in a much more controlled manner due to the digressive rebound piston valving, resulting in predictable handling and vehicle dynamics.
- Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- Fully serviceable
- Fully reversible to factory configuration with no bed cutting required
- 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- Position and velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- Heavy duty 1 ¼” CNC machined nitro steel shaft
- Multi stage CAD plated body for maximum corrosion resistance
- Double sealed high pressure Schrader valve
- Replaceable noise reducing striker pad
Vehicle Specific
- ICON 22-24 TUNDRA 3.5" REAR HYD BUMP STOP KIT
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103430331
-
10: Aluminum
-
3390: Performance
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Attachment Type: Bolt On
-
Bumper Material: Hydraulic
-
Bumper Type: Hydraulic
-
California Prop 65 Warning: Yes
-
Color: Black
-
Diameter: 2
-
Grade: Performance
-
Length: 2.5
-
Mounting Hardware Included: yes
-
Mounting Hardware Required: No
-
Outside Diameter: 2
-
Travel Length: 2.5
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 17.0000 x 13.0000 x 8.0000 inches
-
Weight: 23.0000 POUNDS
PDF:
