These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or 0-4" over stock on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
- 20% increase in rear suspension travel compared to stock
- Fully Rebuildable and Re-tunable
- Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area

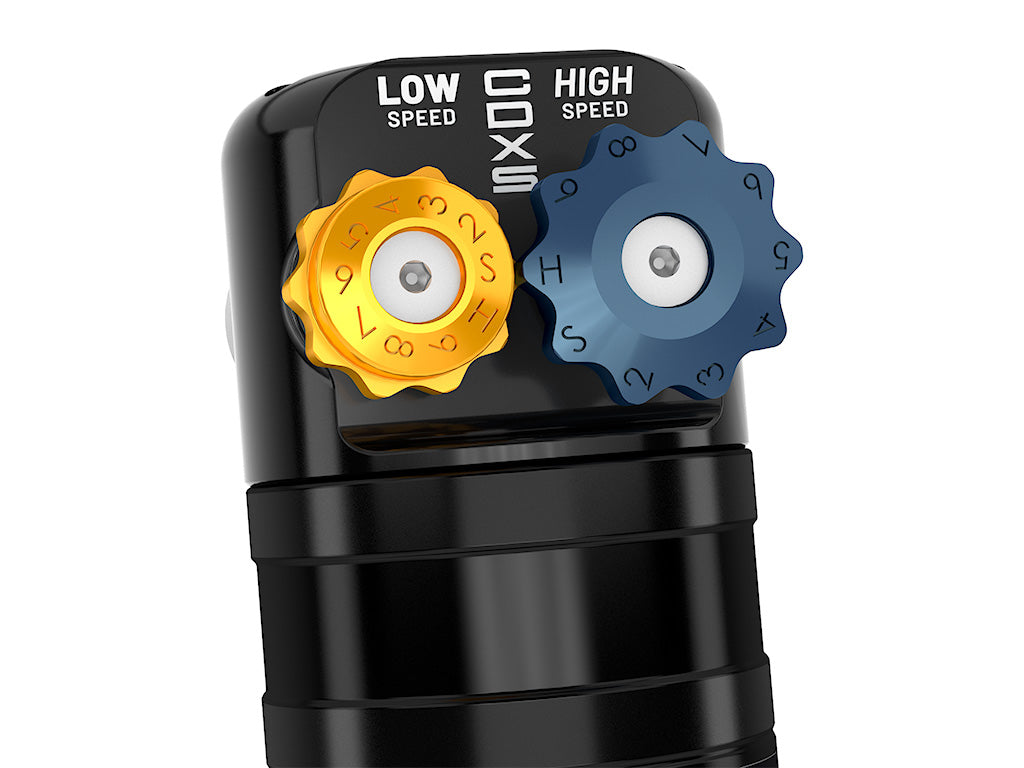

- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8” diameter induction hardened, chrome plated shock shafts
- Corrosion resistant CAD plated steel shock bodies
Vehicle Specific

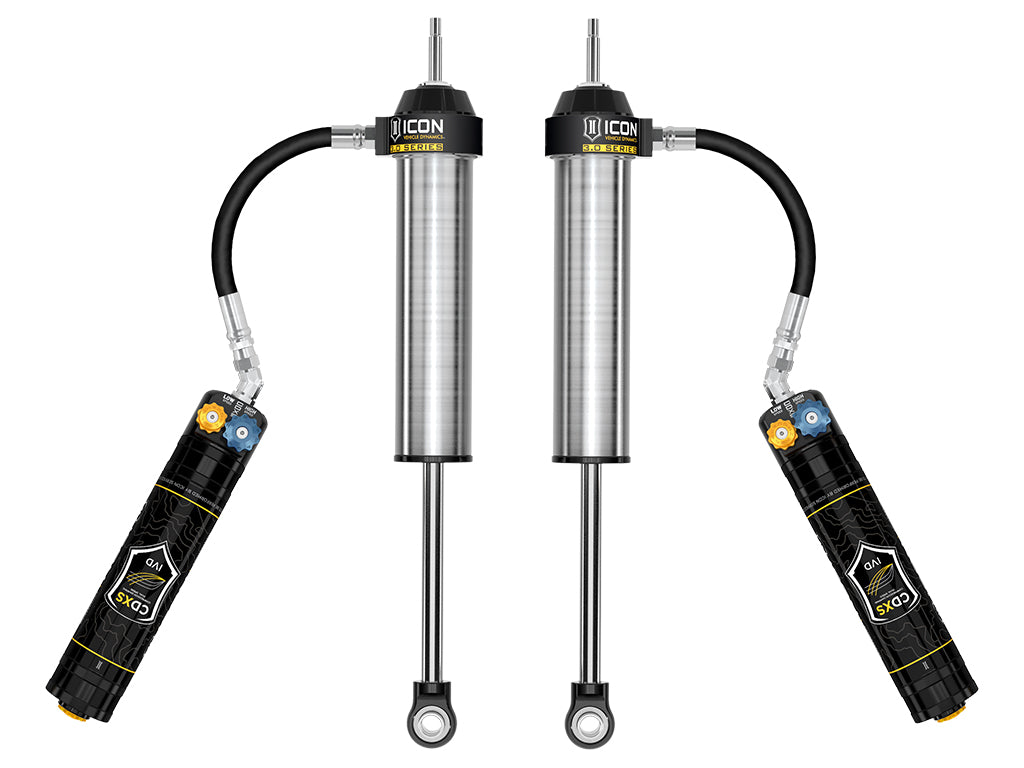

- ICON 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDXS PAIR
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103433370
-
30: Yes
-
40: Yes
-
48: Eyelet
-
49: Stem
-
50: NO
-
51: Yes
-
359: 3
-
408: Center of Eyelet
-
409: Shoulder of Stem
-
905: 2.75
-
3390: Performance
-
9783: No
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Active or Passive Suspension: Passive
-
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
-
Adjustable Compression: Yes
-
Adjustable Damping: Yes
-
Adjustable Rebound: No
-
California Prop 65 Warning: Yes
-
Cylinder Color: Grey
-
Cylinder Diameter: 3
-
Cylinder Material: Steel
-
Damping Adjustment Type: Dual Speed/Manual
-
Damping Type: Oil
-
External Reservoir: Yes
-
Reservoir Type: Remote
-
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
-
Shaft Diameter: 0.875
-
Shaft Material: Chrome
-
Valving Type: Linear/Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 31.0000 x 13.0000 x 7.0000 inches
-
Weight: 41.0000 POUNDS
