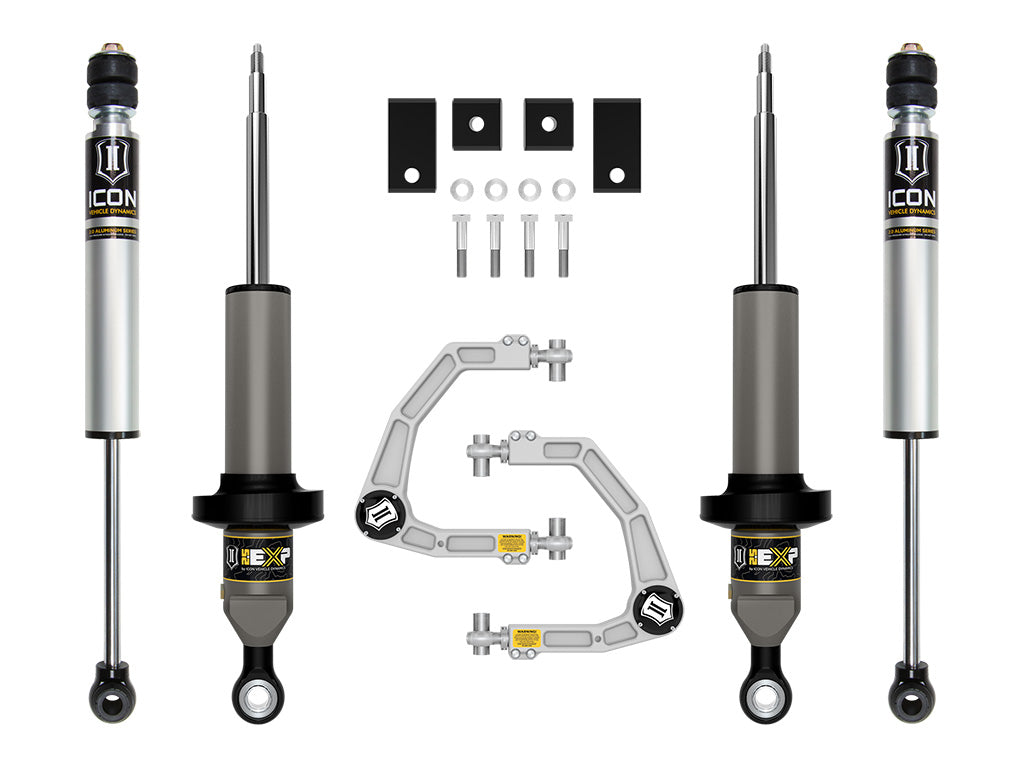

Continue shoppingICON 2022-2025 Toyota Tundra 0-3" Lift Stage 2 2.5 EXP Suspension System Billet
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,004.84
-0%
Regular price
$3,004.84
Regular price
$3,004.84
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-3” of front lift over stock with the use of snap ring and included billet UCAs
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- ICON 22-25 TUNDRA 0-3" STAGE 2 SUSPENSION SYSTEM BILLET
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103420622
- 30: Yes
- 2371: Yes
- 3097: Yes
- 3390: Performance
- 5520: 3
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Compression: No
- Adjustable Control Arm: Yes
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 3
- Minimum Lift Front: 0
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Internal
Extended Information:
- Country of Origin: US
- Emissions : Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 32.0000 x 6.0000 x 5.0000 inches
- Weight: 53.0000 POUNDS
