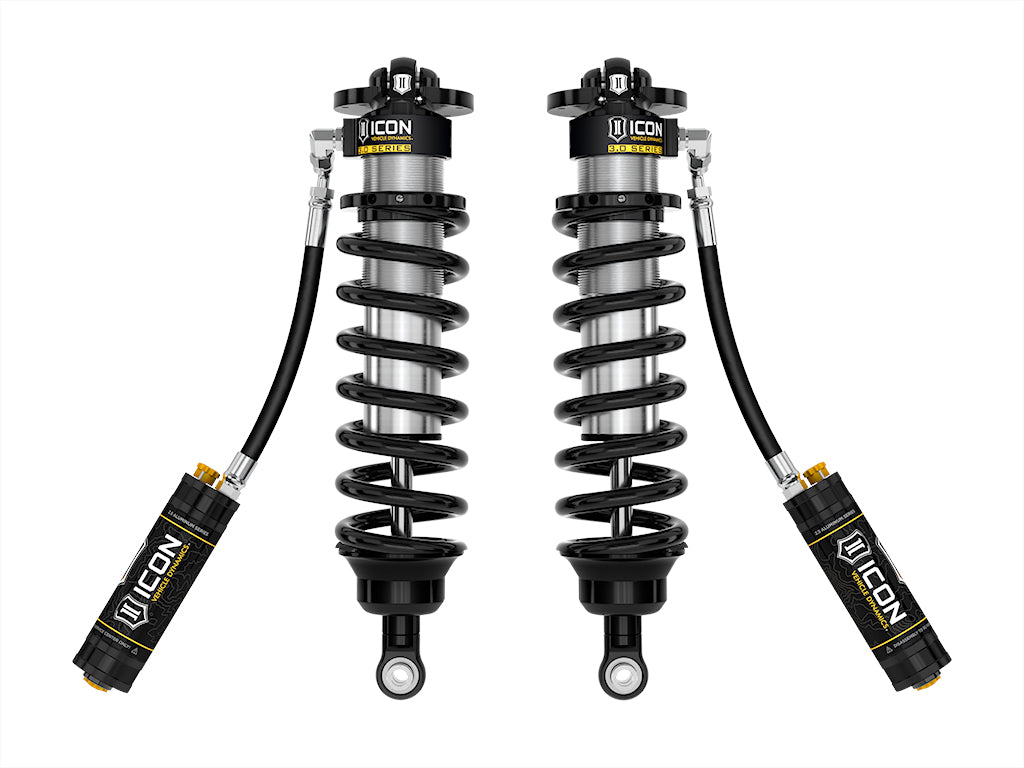

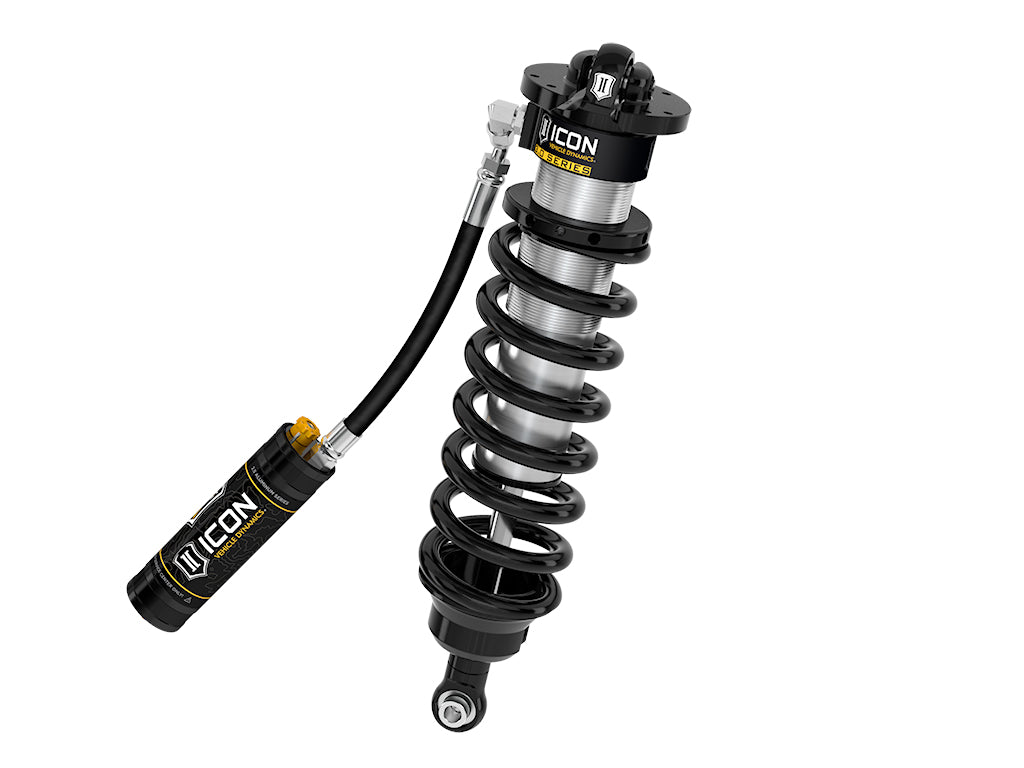

Continue shoppingICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift V.S. 3.0 Series Front Coilover Kit Remote Reservoir W/ CDCV Pair
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,530.62
-0%
Regular price
$3,530.62
Regular price
$3,530.62
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
- 40% increase in front wheel travel over stock
- Fully Rebuildable and Re-tunable
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8” diameter induction hardened, chrome plated shock shafts
- ICON 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103414911
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: No
- 10107: 600
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10531: Ceramic Coated
- 10535: 3.25
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
- Adjustable Damping: Yes
- Body Diameter: 3
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 16.38
- Cylinder Color: Gray
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Extended Length: 22.04
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3.25
- Minimum Lift: 1.25
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eyelet
- Spring Rate Type: Linear
- Travel Length: 5.67
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.0000 x 15.0000 x 10.0000 inches
- Weight: 75.0000 POUNDS
