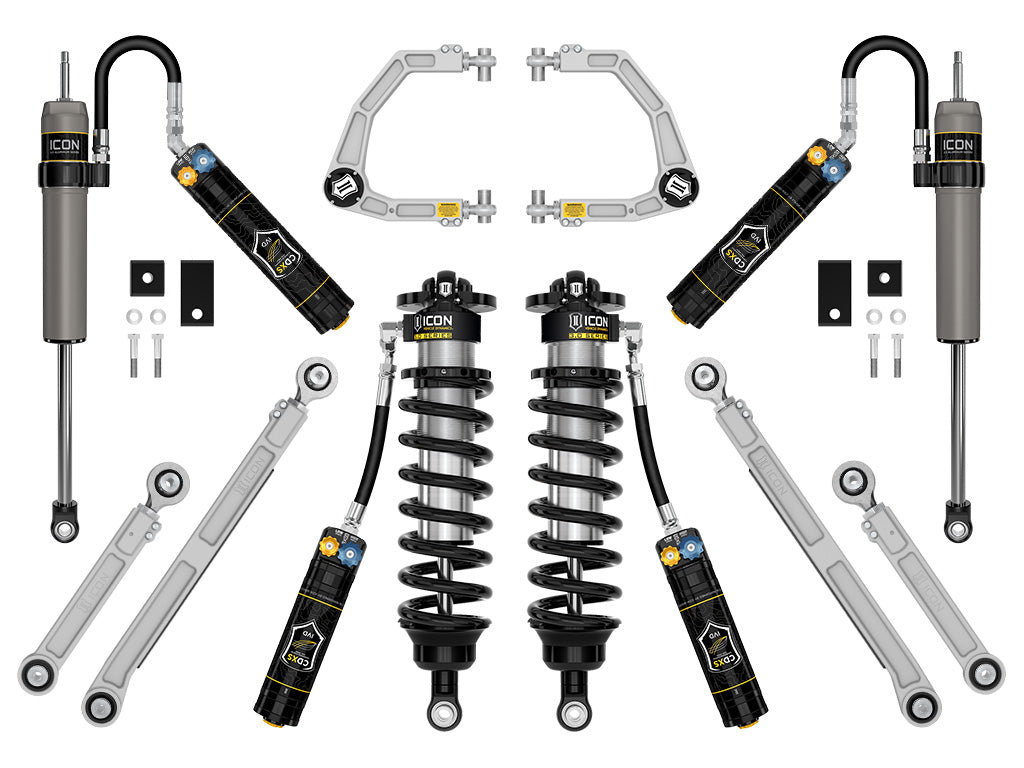

ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift Stage 1 3.0 Suspension System Billet CDXS

Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDXS front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

• Vehicle specific design for 2022-2025 Toyota Tundra
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
• 3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
• Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

Vehicle Specific

• ICON 22-25 TUNDRA 1.25-3.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDXS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103433134
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3.25
• 5782: Closed
• 5783: Closed
• 7325: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Dual Speed Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 3
• Maximum Lift Front: 3.25
• Minimum Lift Front: .75
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Reservoir Style: Remote

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 10.0000 inches
• Weight: 175.0000 POUNDS
