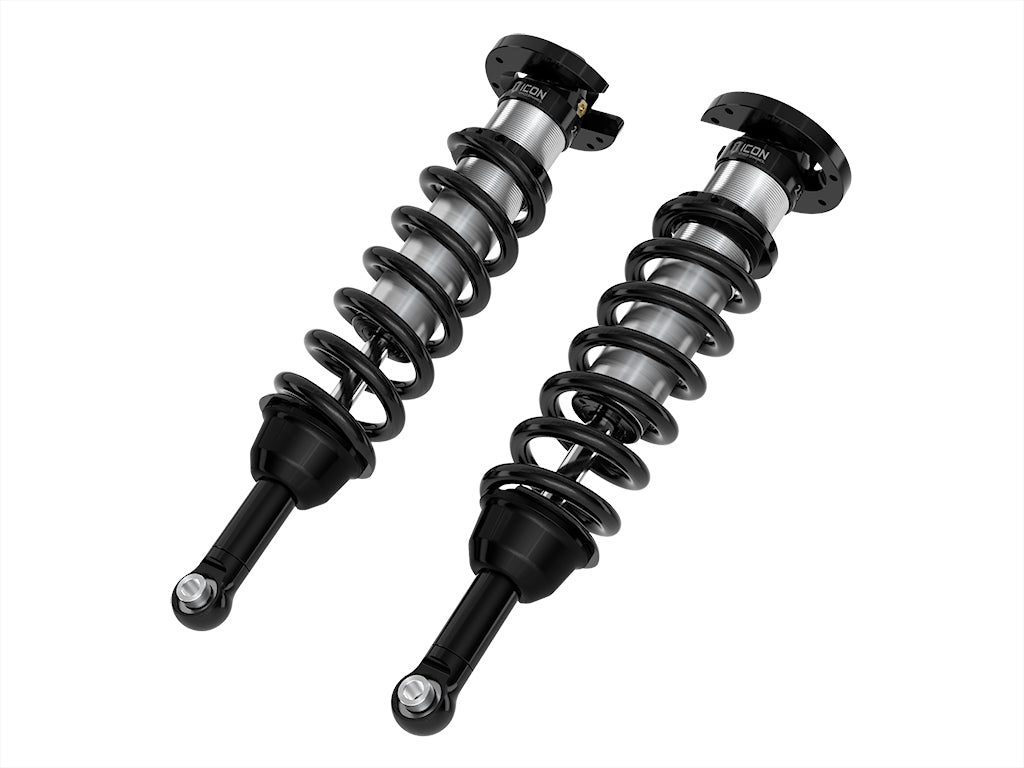

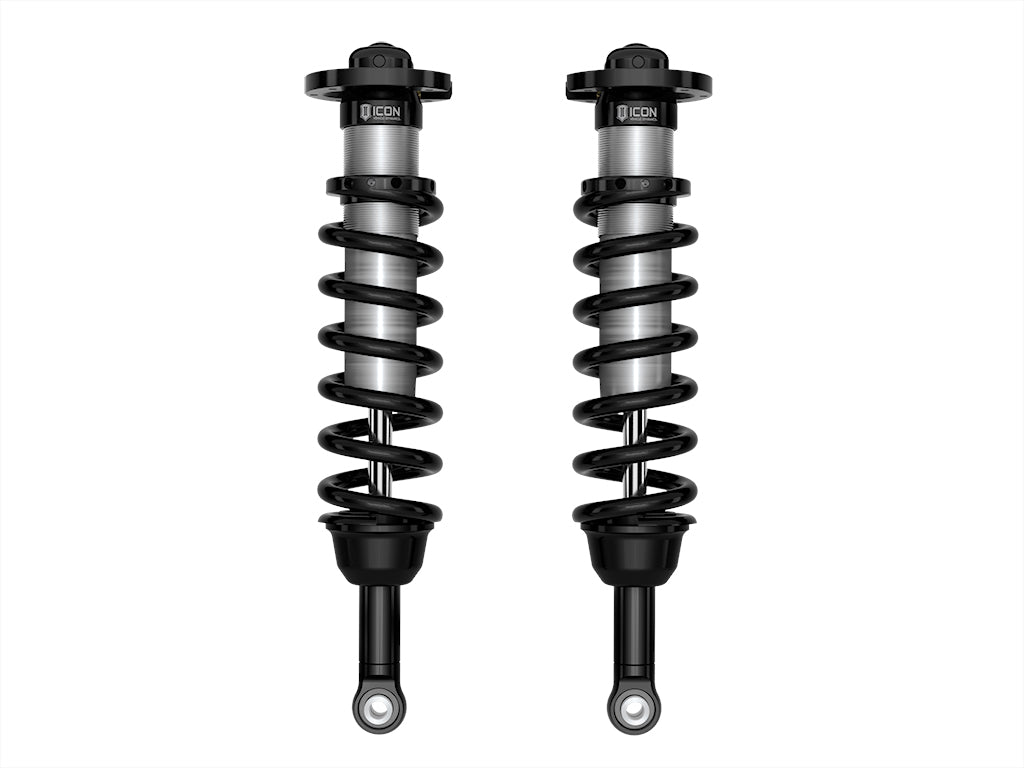

ICON 2022-2025 Toyota Tundra 1.25-3.5" Lift/2023-2025 Sequoia 3-4.5" Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Pair

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Vehicle Specific

• ICON 22-25 TUNDRA/23-25 SEQUOIA 2.5 VS IR COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103414645
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9783: No
• 10107: 700
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 3.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Adjustable Damping: NO
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 16.73
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 22.08
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Maximum Lift: 3.5
• Minimum Lift: 1
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Remote Reservoir: NO
• Reservoir Style: Internal
• Self-Leveling: No
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Rate Type: Linear
• Travel Length: 5.36
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 50.0000 POUNDS
