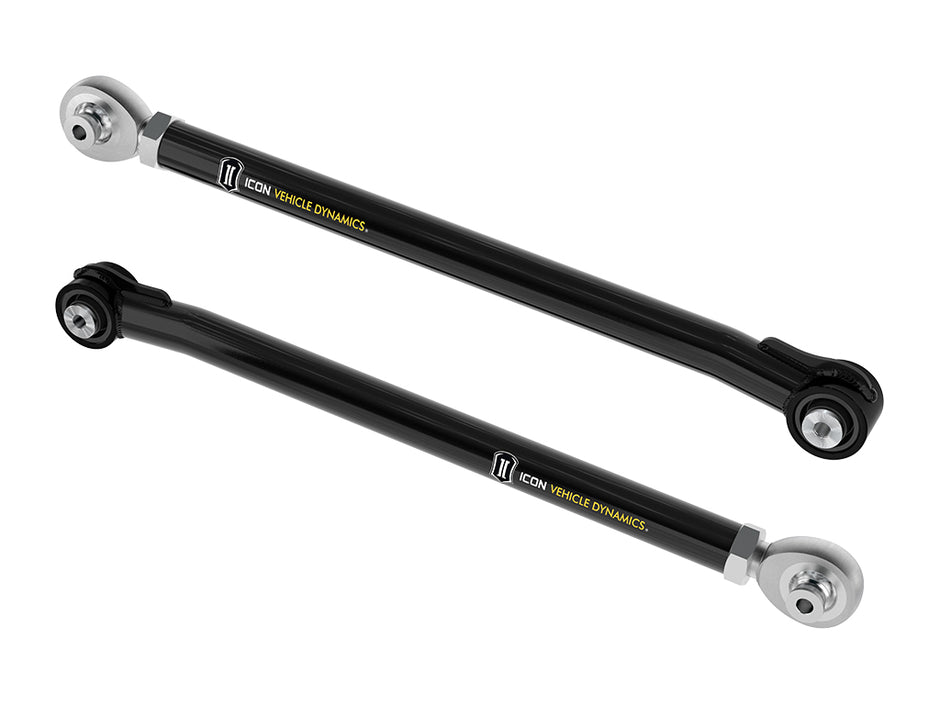

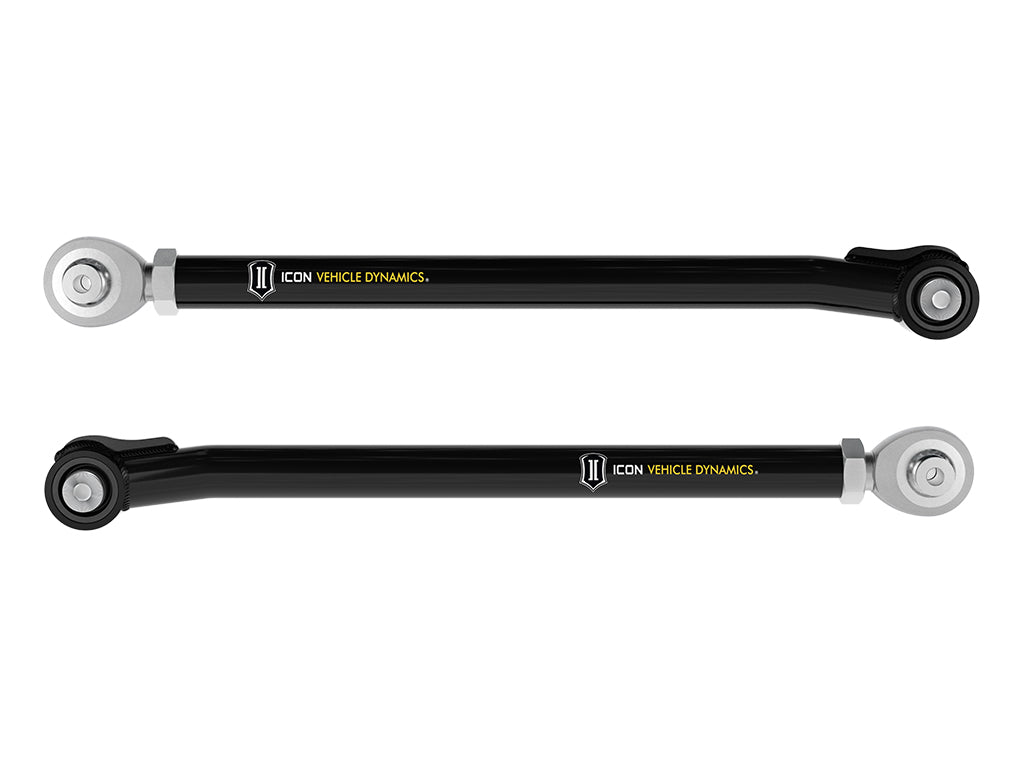

ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma Rear Tubular Lower Link Kit

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

• Adjustable for various lift heights & driveline angles
• Help free rear suspension bind compared to OE links
• High clearance Lower Link design for reduced contact with obstacles
• CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
• Multi durometer bushings for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
• Fabricated components covered under ICON's Limited Lifetime Warranty

Vehicle Specific

• ICON 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103428826
• 10: Steel
• 30: Yes
• 40: Yes
• 73: Polyurethane
• 92: No
• 158: Tubular
• 1260: Yes
• 2330: No
• 2339: No
• 2354: Performance
• 2371: Yes
• 2383: Threaded
• 2384: Yes
• 2386: Tubular
• 2389: DOM Steel
• 3390: Performance
• 4888: Black
• 9617: Air
• 10828: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 54102T - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KIT
• Adjustable Control Arm: yes
• Attachments Included: No
• Ball Joint Mounting Type: Thread in
• Bushing Color: Black
• California Prop 65 Warning: Yes
• Color: Black
• End 1 Type: Rod End Bearing
• End 2 Type: Bushing
• Finish: Powdercoated
• Quantity: Pair
• Set: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.0000 x 8.0000 x 4.0000 inches
• Weight: 27.0000 POUNDS
