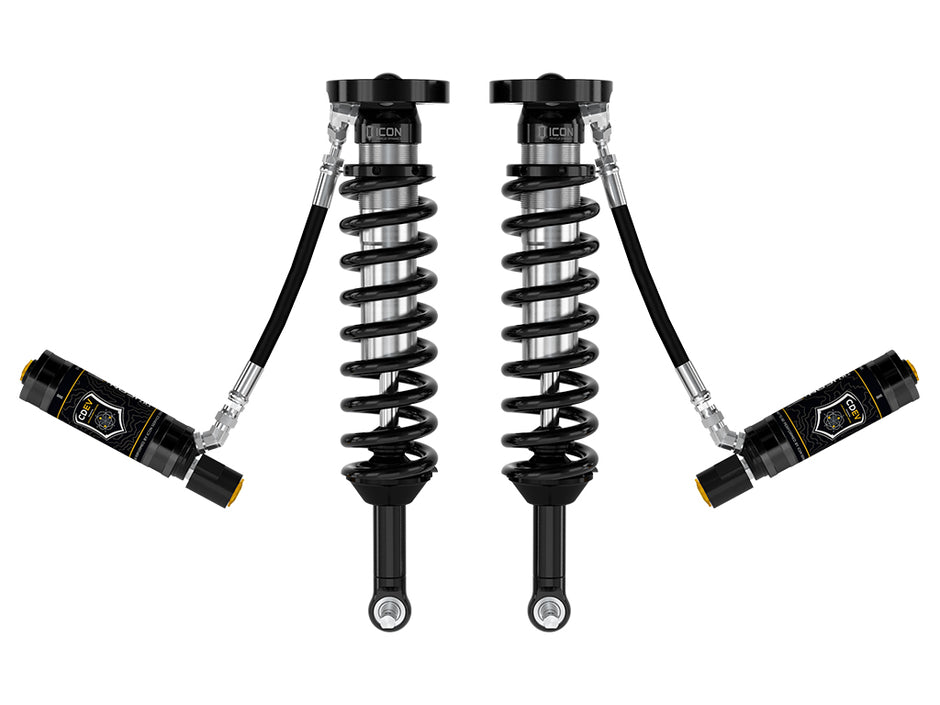

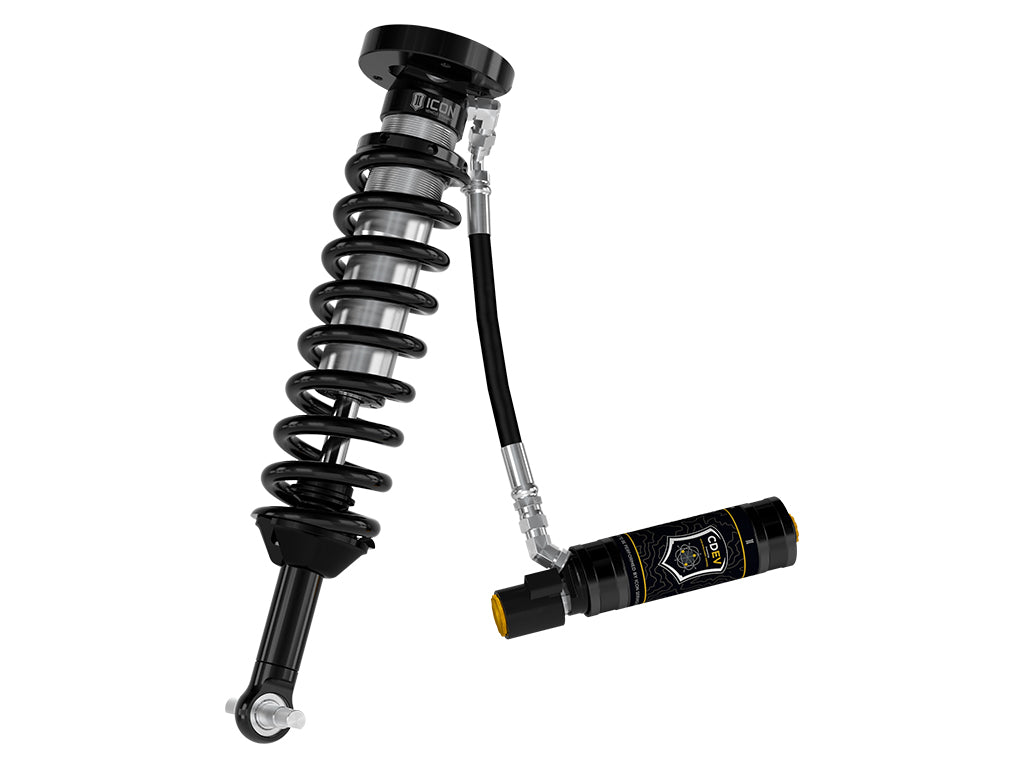

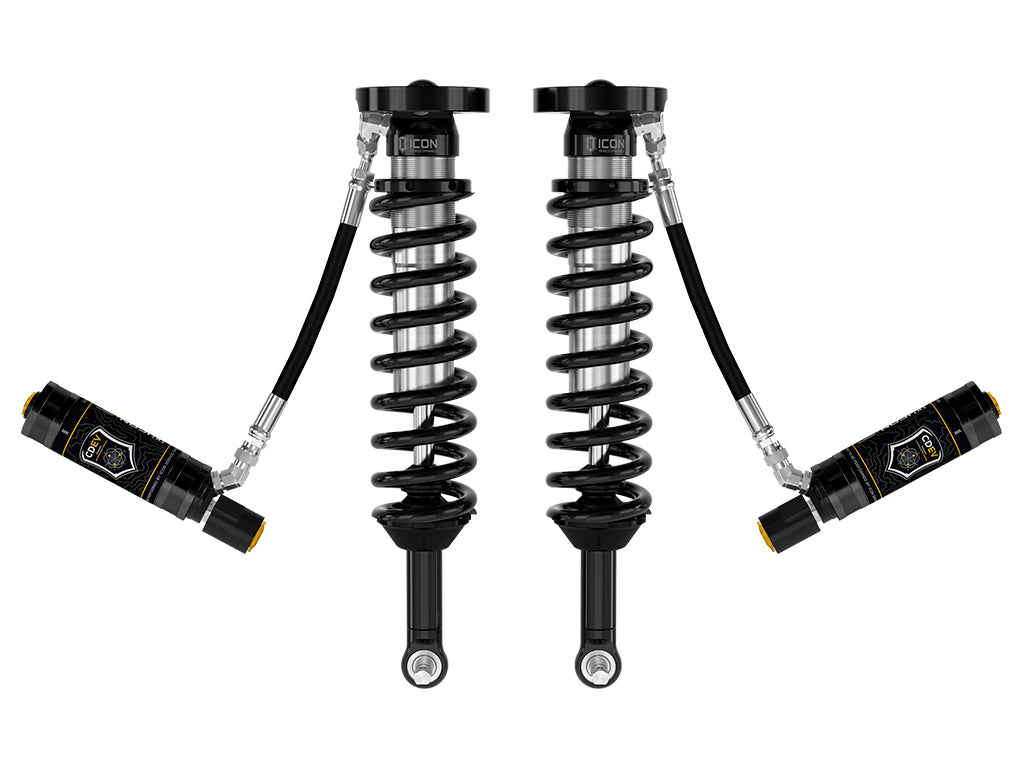

ICON 2023-2024 Chevrolet Colorado WT LT & Z71 2.5 Series Coilover Kit Remote Reservoir W/ CDEV

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.

• 20% increase in front wheel travel and improved ride quality over stock
• PTFE lined spherical bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 1.75-2.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• 7/8" diameter hardened chrome plated shafts
• 6061 Aircraft grade aluminum CNC machined components

Vehicle Specific

• ICON 23-24 CHEVROLET COLORADO 2.5 VS RR CDEV COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103427560
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 450
• 10527: Yes
• 10528: Yes
• 10530: Active
• 10535: 2.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: Yes
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 17.44
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Electronic
• Damping Type: Oil
• Extended Length: 22.43
• Gas Charged: Yes
• Lower Mount Type: Bar Pin
• Material: Aluminum
• Maximum Lift: 2.5
• Minimum Lift: 1.75
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Rate Type: Linear
• Travel Length: 4.99
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 55.0000 POUNDS
