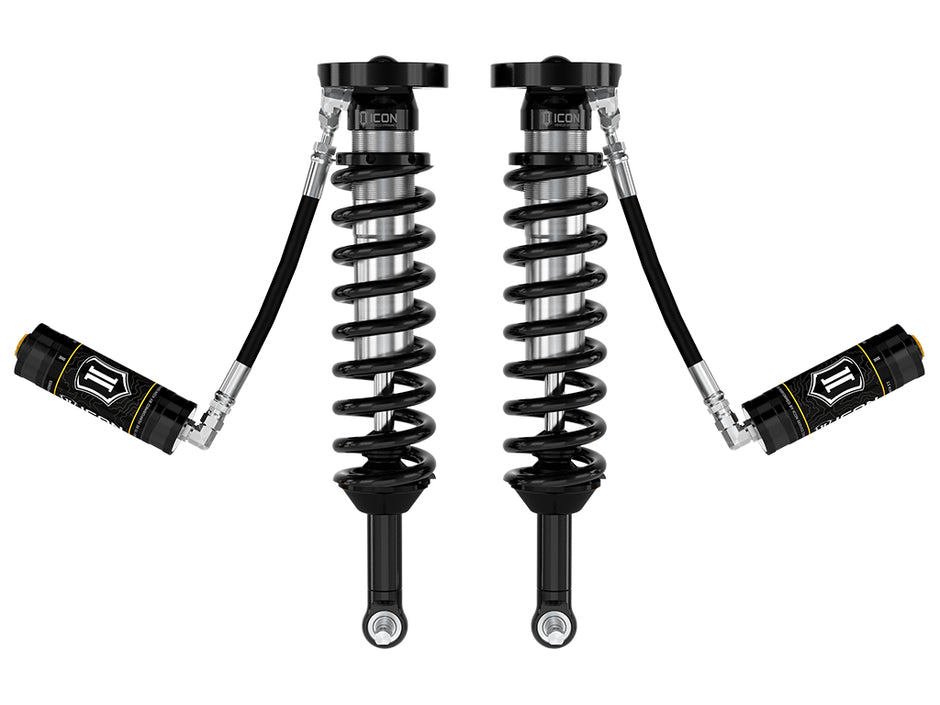

ICON 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss & ZR2 2.5 Series Coilover Kit Remote Reservoir

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.

• 20% increase in front wheel travel and improved ride quality over stock
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Fully rebuildable and re-tunable
• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 1.75-2.5" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON engineered coil springs
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• 7/8" diameter hardened chrome plated shafts
• 6061 Aircraft grade aluminum CNC machined components
• PTFE lined spherical bearings for extended longevity and minimal deflection

Vehicle Specific

• ICON 23-24 GM CANYON/COLORADO 2.5 VS RR COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103427133
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• 10107: 450
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 2.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Damping: No
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 18.47
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 23.83
• Gas Charged: Yes
• Lower Mount Type: Bar Pin
• Material: Aluminum
• Maximum Lift: 2.5
• Minimum Lift: 1.75
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Rate Type: Linear
• Travel Length: 5.37
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 62.0000 POUNDS
