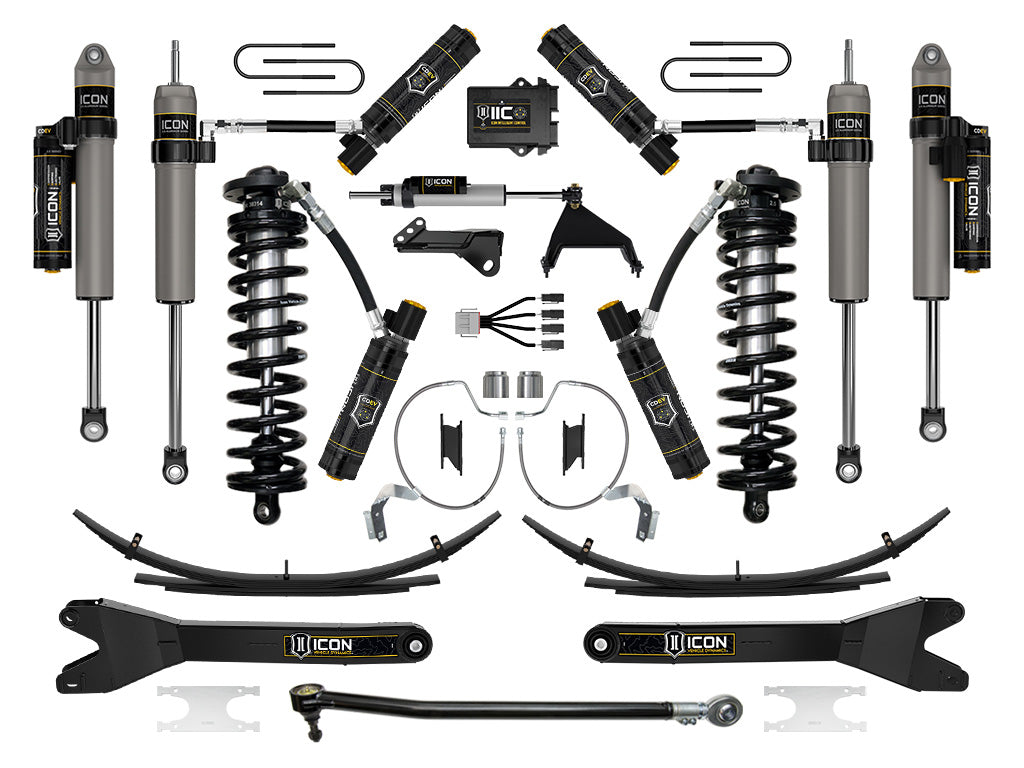

Continue shoppingICON 2023-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5" Lift Stage 9 Coilover Conversion System W/ Radius Arms & Expansion Packs
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$13,385.69
-0%
Regular price
$13,385.69
Regular price
$13,385.69
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
- Fits 2023-2025 F-250 / F-350 4WD applications
- Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
- ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
- Stainless steel braided front brake lines
- Leaf spring expansion packs improve ride quality and provide 2" of rear lift
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8" shafts
- Shocks are fully rebuildable and re-tunable
- Lifetime guarantee against coil spring breakage or sagging
- Bolt-in system fits in OE coil bucket location
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
- ICON 2.5 Aluminum Series piggyback reservoir rear shocks
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Increased wheel travel and ride quality over stock
- ICON 23-25 FORD F250/F350 4-5.5" STAGE 9 COILOVER CONV SYS RADIUS ARM/EXPANSION PACKS
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103434544
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 6
- 5782: Square
- 5783: Square
- 6111: 7
- 7325: 2
- 9271: Linear
- 11410: 6
- 11411: 2
- 11412: Steel
- 11413: Black
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Active
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Damping Adjustment Type: Electronic
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 6
- Maximum Lift Rear: 2
- Minimum Lift Front: 3
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 54.0000 x 48.0000 x 10.0000 inches
- Weight: 480.0000 POUNDS
