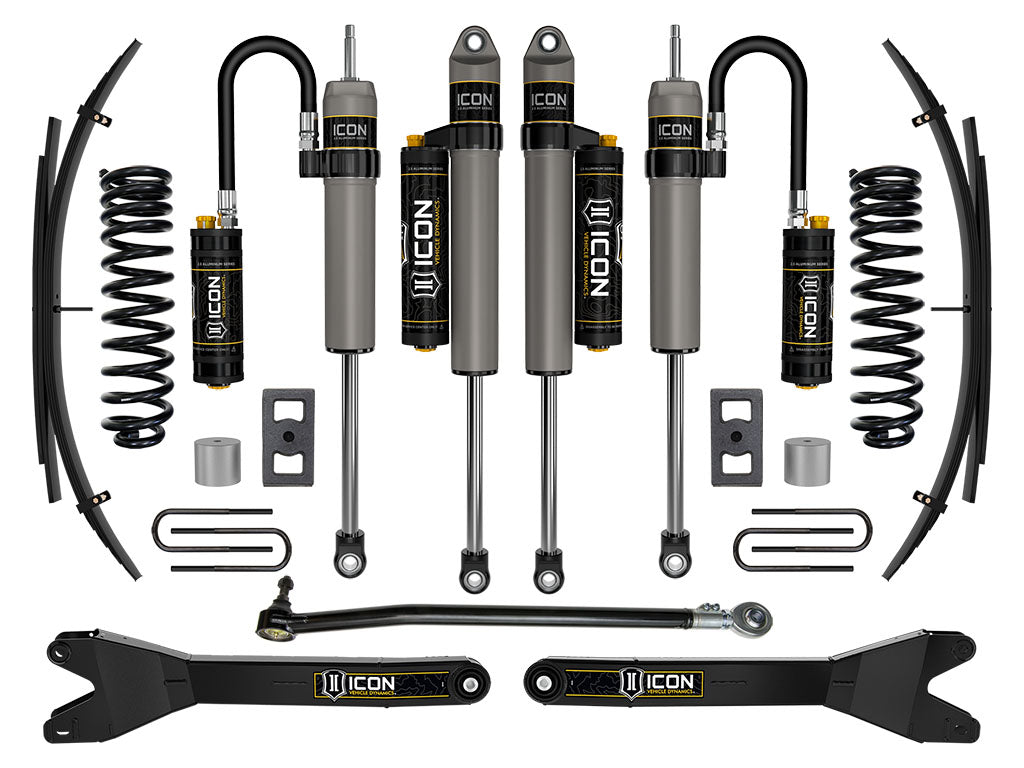

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 4 Suspension System W/ Radius Arms And Expansion Packs

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. Also included in this stage is ICON's CDC Valve front and rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. ICON's Stage 4 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, fabricated radius arms, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Adjustable track bar ensures proper axle placement and improves handling
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break

Vehicle Specific

• ICON 23-25 FORD F250/F350 DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM W/ RADIUS ARMS/EXPANSION PACKS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103433448
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 2.5
• 6111: 7
• 7325: 2
• 11410: 2.5
• 11411: .5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 2.5
• Maximum Lift Rear: .5
• Minimum Lift Front: 1.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 19.0000 inches
• Weight: 411.0000 POUNDS
