Continue shoppingICON 2023-2025 Ford F-250/F-350 Super Duty 4WD Diesel 2.5" Lift Stage 6 Suspension System W/ Radius Arms And Expansion Packs
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$10,600.85
-0%
Regular price
$10,600.85
Regular price
$10,600.85
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

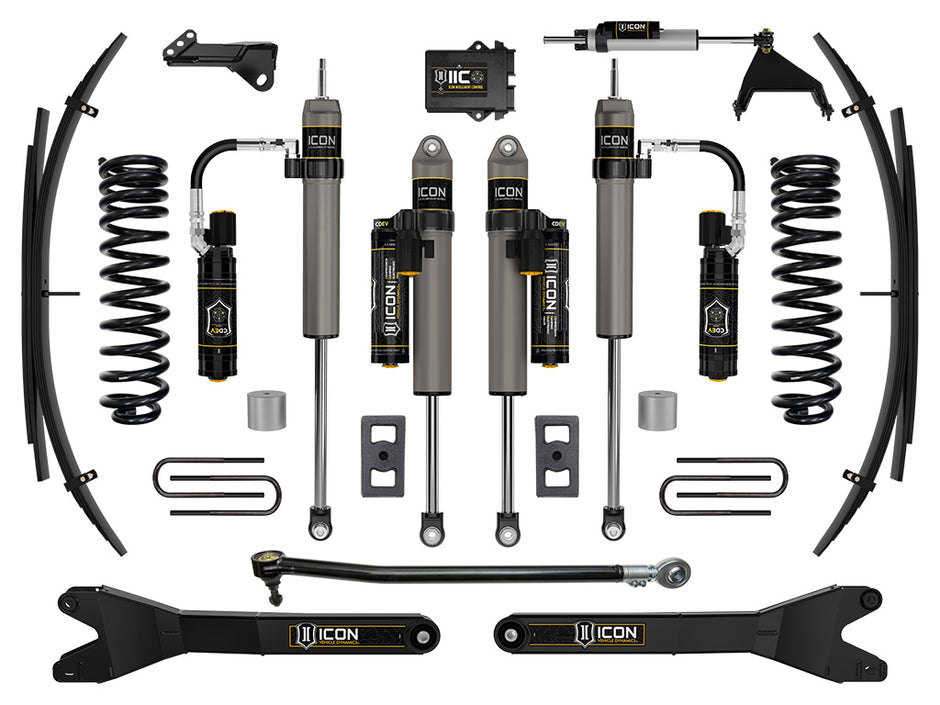

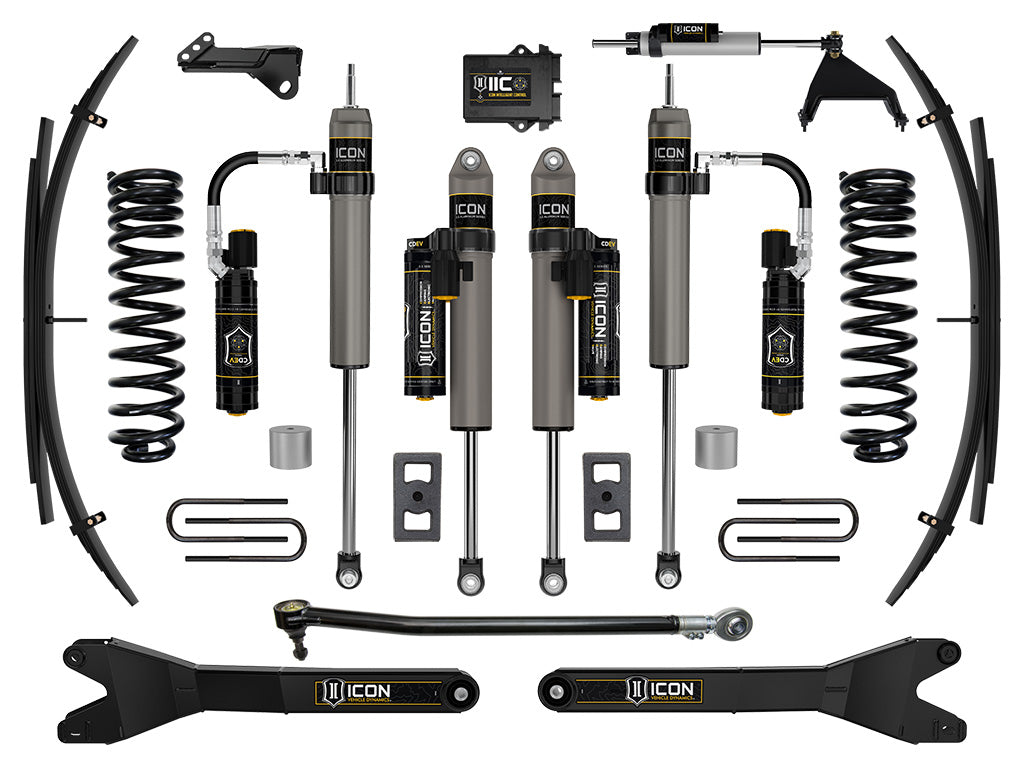

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, ICON 2.5" Centerline Steering Stabilizer, on-vehicle adjustable front track bar, bump steer correcting track bar bracket, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- Fits 2023-2025 F-250/F-350 4WD diesel applications
- Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Shocks are fully rebuildable and revalvable
- Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Approximately 25% increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
- Track bar drop bracket reduces track bar angle and corrects bump steer geometry
- ICON 23-25 FORD F250/F350 DIESEL 2.5" STAGE 6 SUSPENSION SYSTEM W/ RADIUS ARMS/EXPANSION PACKS
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103434742
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 2.5
- 6111: 7
- 7325: 2
- 11410: 2.5
- 11411: .5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Active
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Damping Adjustment Type: Electronic
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Progressive Dual Rate
- Maximum Lift Front: 2.5
- Maximum Lift Rear: .5
- Minimum Lift Front: 1.5
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 54.0000 x 48.0000 x 19.0000 inches
- Weight: 478.0000 POUNDS
PDF:
