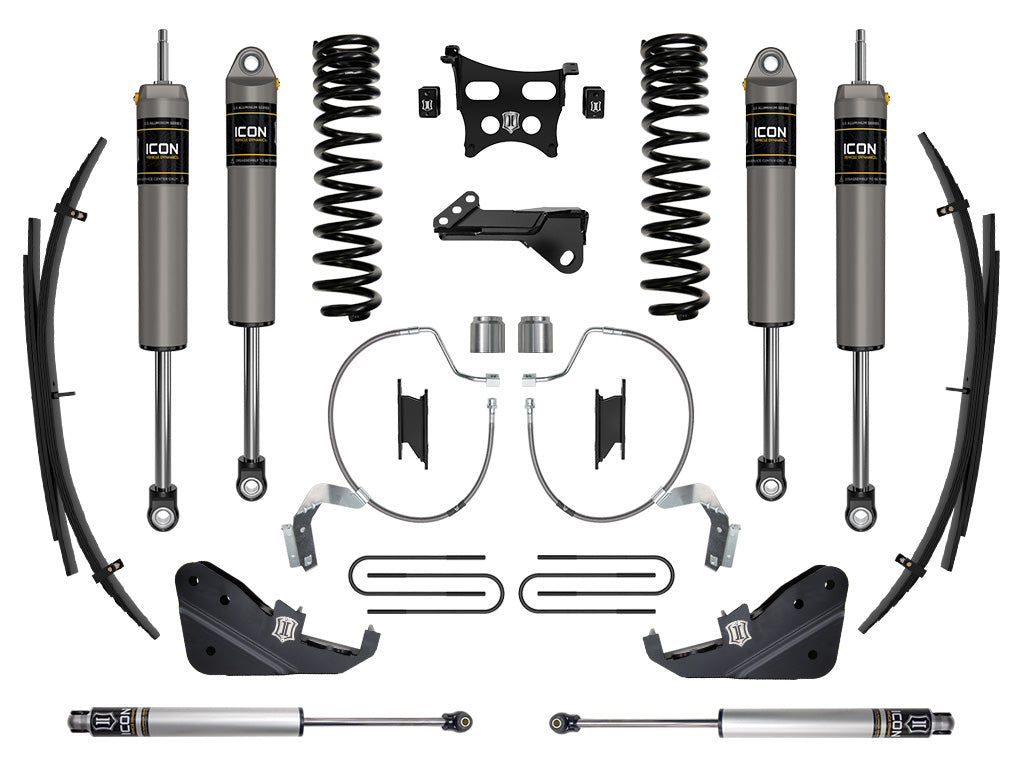

ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD Diesel 4.5" Lift Stage 3 Suspension System W/ Expansion Packs

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

• Fits 2023-2026 F-250 / F-350 4WD diesel applications
• 2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8" shafts
• 2.0 Aluminum Series steering stabilizers feature corrosion resistant anodized shock bodies with 5/8" shafts
• Shocks are fully rebuildable and re-tunable
• Lifetime guarantee against spring breakage or sagging
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• ICON 2.5 Aluminum Series internal reservoir shocks feature vehicle specific tune for superior performance and ride quality
• Approximately 50% increased front wheel travel over stock
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Dual steering stabilizer kit offers increased steering damping
• Stainless steel braided front brake lines
• Leaf spring expansion packs improve ride quality and provide 2" of rear lift

Vehicle Specific

• ICON 23-26 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM DIESEL W/ EXPANSION PACKS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103428536
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 4.5
• 5782: Closed
• 5783: Closed
• 6111: 7
• 7325: 2
• 10107: 460
• 11410: 4.5
• 11411: 2
• 11412: Steel
• 11413: Black
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 4.5
• Maximum Lift Rear: 2
• Minimum Lift Front: 3.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Internal
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 54.0000 x 48.0000 x 10.0000 inches
• Weight: 383.0000 POUNDS
