Continue shoppingICON 2023-2025 Ford F-250/F-350 Super Duty 4WD Gas 2.5" Lift Stage 1 Suspension System W/ Radius Arms
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,913.19
-0%
Regular price
$2,913.19
Regular price
$2,913.19
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

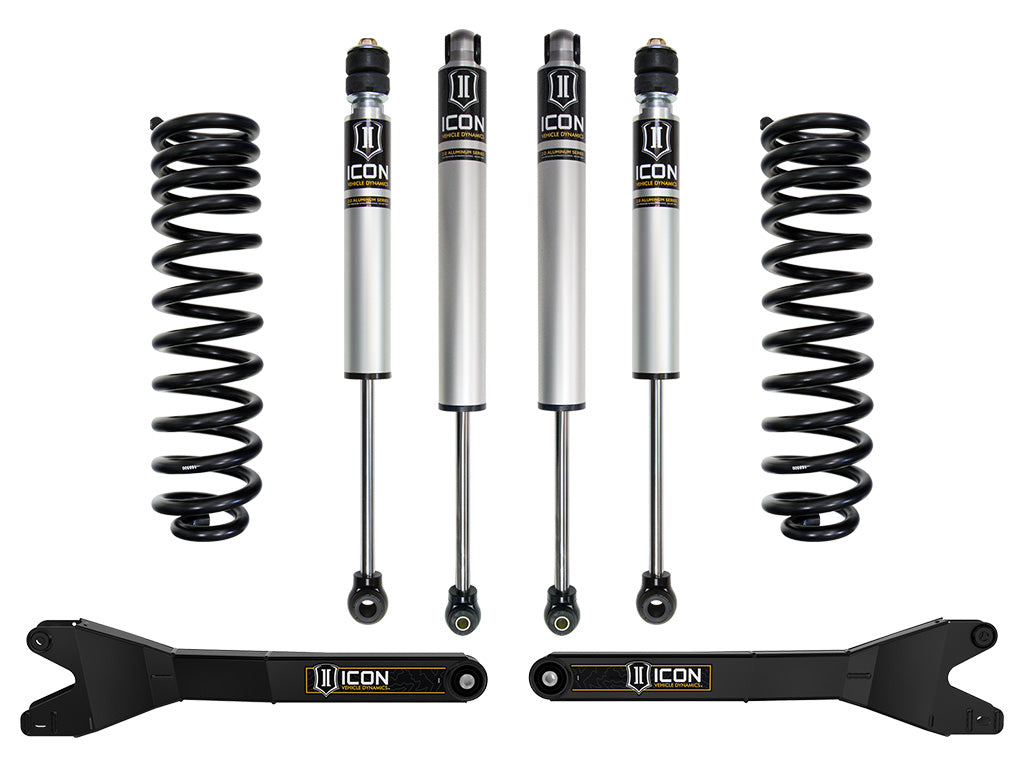

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 1 system is perfect for on-road and light duty off-road use including towing, job site duty and general off-road adventure. ICON's Stage 1 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, fabricated radius arms, and ICON 2.0 Aluminum Series front and rear internal reservoir shocks. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Vehicle specific tuned internal reservoir 2.0 Aluminum Series shocks
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
- ICON 23-25 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM W/ RADIUS ARMS
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103434773
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 2.5
- 7325: 2
- 11410: 2.5
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 61111 - 17-25 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
- Adjustable Compression: No
- Adjustable Control Arm: Yes
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2
- Front Spring Rate Type: Progressive Dual Rate
- Maximum Lift Front: 2.5
- Minimum Lift Front: 1.5
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 40.0000 x 13.0000 x 11.0000 inches
- Weight: 162.0000 POUNDS
