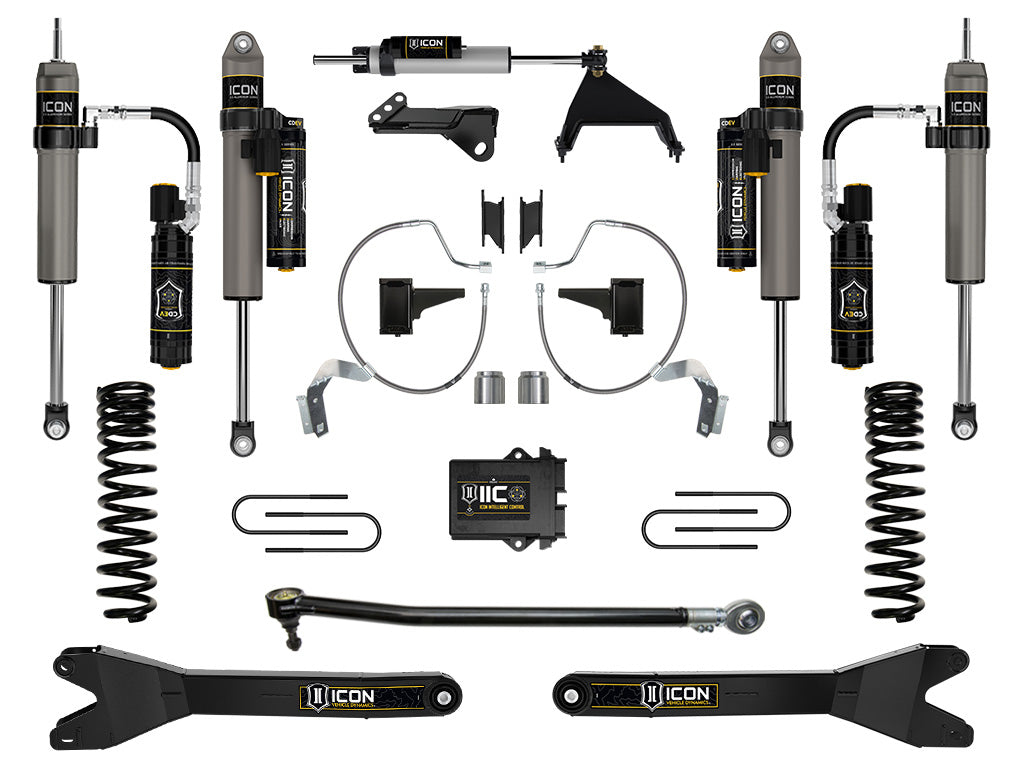

ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD Gas 4.5" Lift Stage 8 Suspension System W/ Radius Arms

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

• Fits 2023-2026 F-250 / F-350 4WD gasoline applications
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Stainless steel braided front brake lines
• Heavy-duty fabricated rear lift blocks
• 2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8" shafts
• Shocks are fully rebuildable and re-tunable
• Lifetime guarantee against coil spring breakage or sagging
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
• ICON 2.5 Aluminum Series remote reservoir shocks feature vehicle specific tune for superior performance and ride quality
• Remote reservoirs maintain cooler operating temperatures and consistent performance during extended off-road use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Approximately 50% increased front wheel travel over stock
• Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry

Vehicle Specific

• ICON 23-26 FORD F250/F350 4.5" STAGE 8 SUSPENSION SYSTEM GAS W/ RADIUS ARMS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103434612
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 4.5
• 5772: Steel
• 5773: Black
• 5782: Closed
• 5783: Closed
• 7325: 2
• 10107: 430
• 11410: 4.5
• 11411: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Active
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Progressive Dual Rate
• Maximum Lift Front: 4.5
• Maximum Lift Rear: 2
• Minimum Lift Front: 3.5
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 40.0000 x 13.0000 x 11.0000 inches
• Weight: 334.0000 POUNDS
