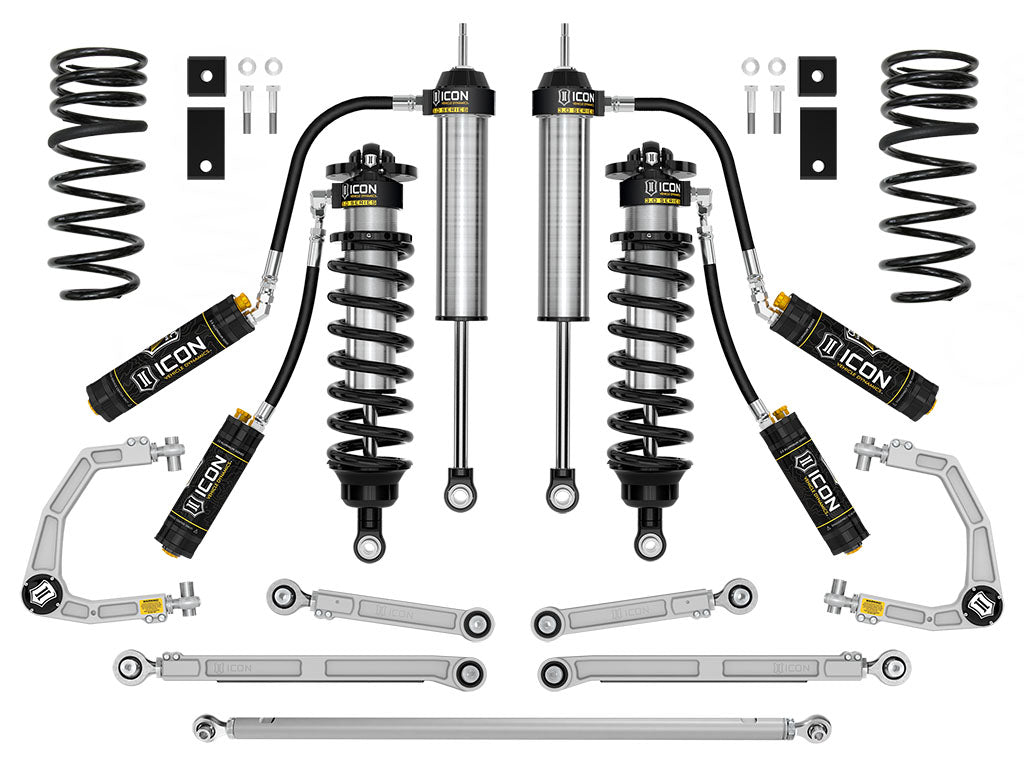

Continue shoppingICON 2023-2025 Toyota Sequoia 3-4.25" Lift Stage 2 3.0 Suspension System Billet CDCV
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$10,763.60
-0%
Regular price
$10,763.60
Regular price
$10,763.60
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
Rounding out the Stage 2 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
- Vehicle specific design for 2023-2025 Toyota Sequoia
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.25” of front lift over stock
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- ICON 23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM BILLET CDCV
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103422138
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4.25
- 7325: 2
- 7326: 2
- 9271: Linear
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 3
- Maximum Lift Front: 4.25
- Maximum Lift Rear: 2
- Minimum Lift Front: 3
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 3
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Remote
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.0000 x 15.0000 x 10.0000 inches
- Weight: 234.0000 POUNDS
