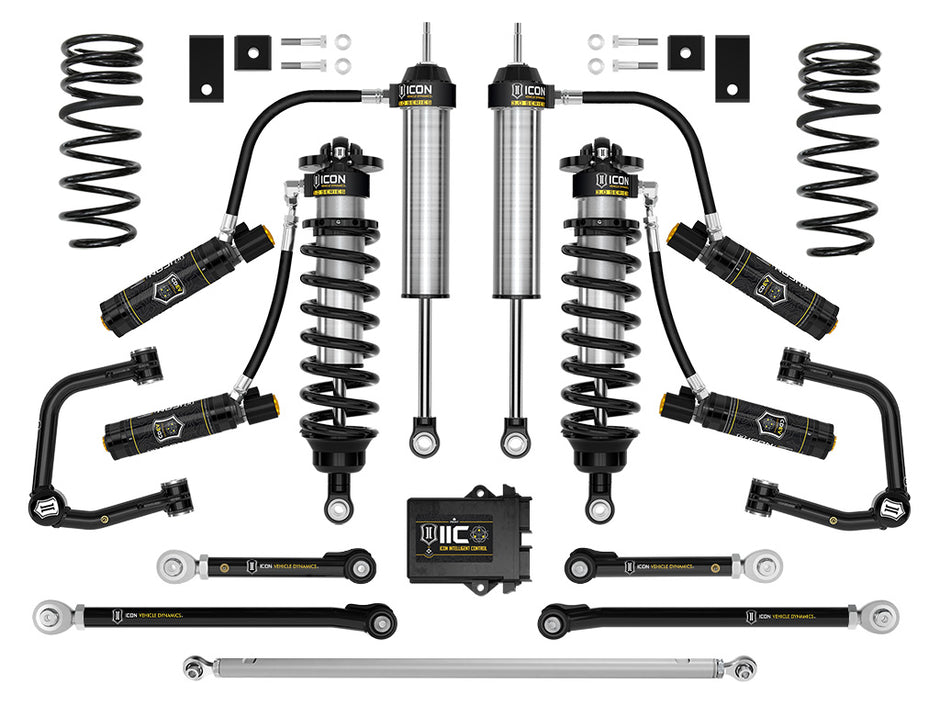

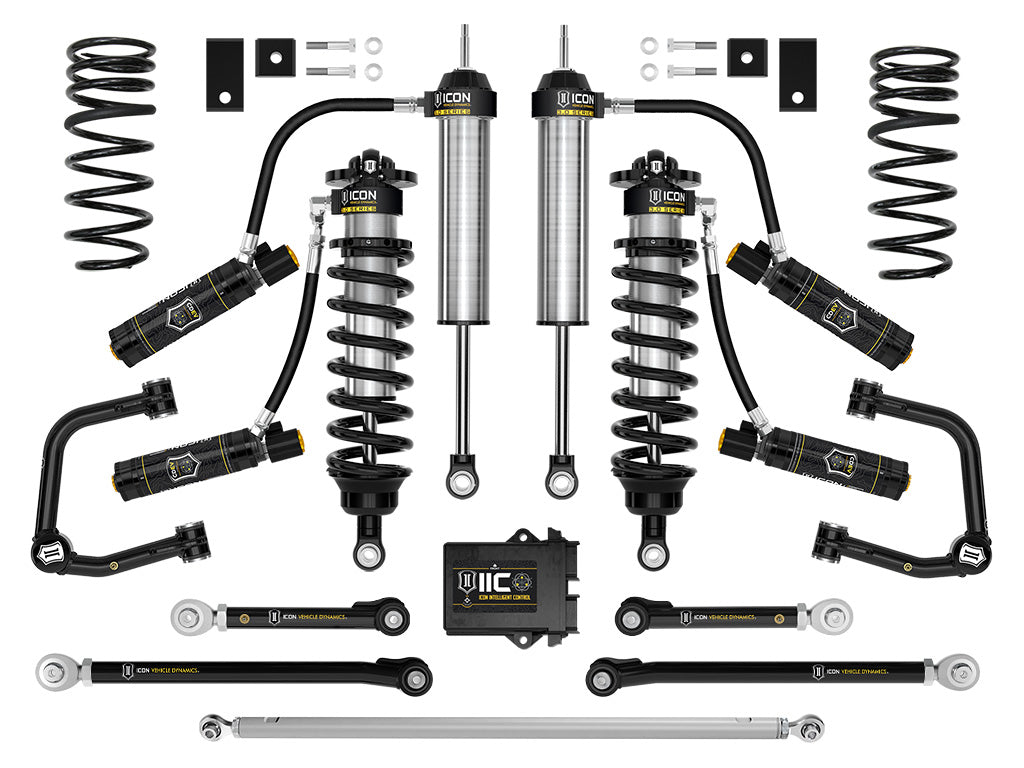

ICON 2023-2025 Toyota Sequoia 3-4.25" Lift Stage 4 3.0 Suspension System Tubular

Rounding out the Stage 4 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDE Valves, these offer active, on the fly compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
• 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
• 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.25” of front lift over stock
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components

Vehicle Specific

• ICON 23-25 SEQUOIA 3-4.25" STAGE 4 3.0 SUSPENSION SYSTEM TUBULAR

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103422183
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.25
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Active
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Electronic
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 3
• Maximum Lift Front: 4.25
• Maximum Lift Rear: 2
• Minimum Lift Front: 3
• Minimum Lift Rear: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 3
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Reservoir Style: Remote

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.0000 x 15.0000 x 10.0000 inches
• Weight: 247.0000 POUNDS
