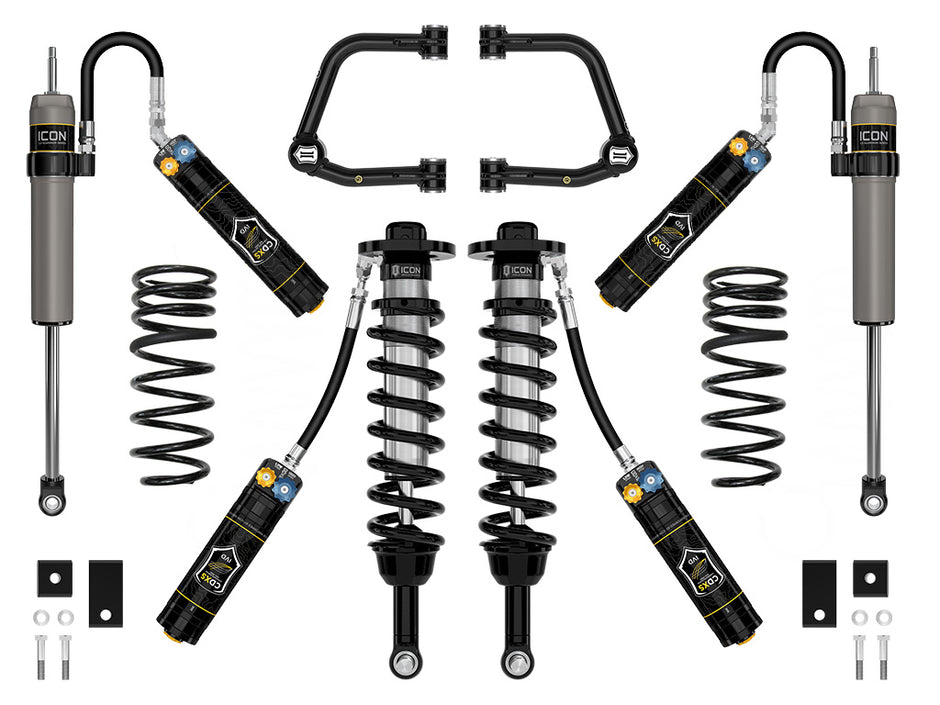

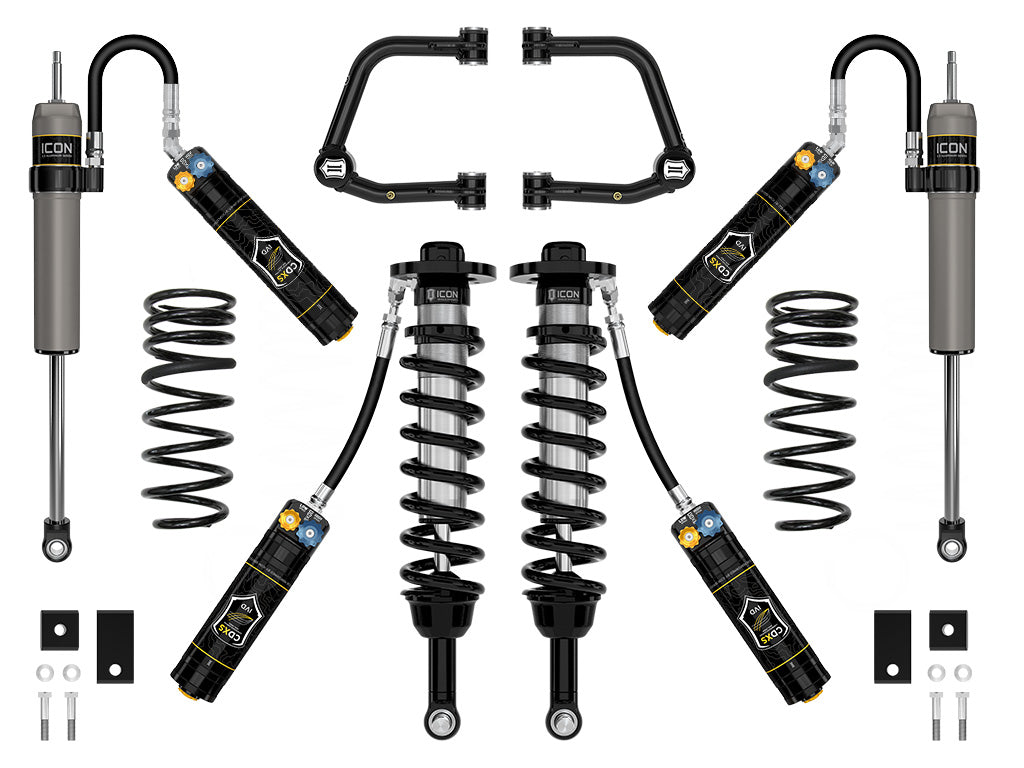

ICON 2023-2025 Toyota Sequoia 3-4.5" Lift Stage 9 Suspension System Tubular CDXS

Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDXS, these offer 10 settings of low and high speed compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.5” of front lift over stock
• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package

Vehicle Specific

• ICON 23-25 SEQUOIA 3-4.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103433066
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Compression: Yes
• Adjustable Control Arm: No
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Damping Adjustment Type: Dual Speed Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 4.5
• Maximum Lift Rear: 2
• Minimum Lift Front: 3
• Minimum Lift Rear: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Reservoir Style: Remote

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 8.0000 inches
• Weight: 160.0000 POUNDS
